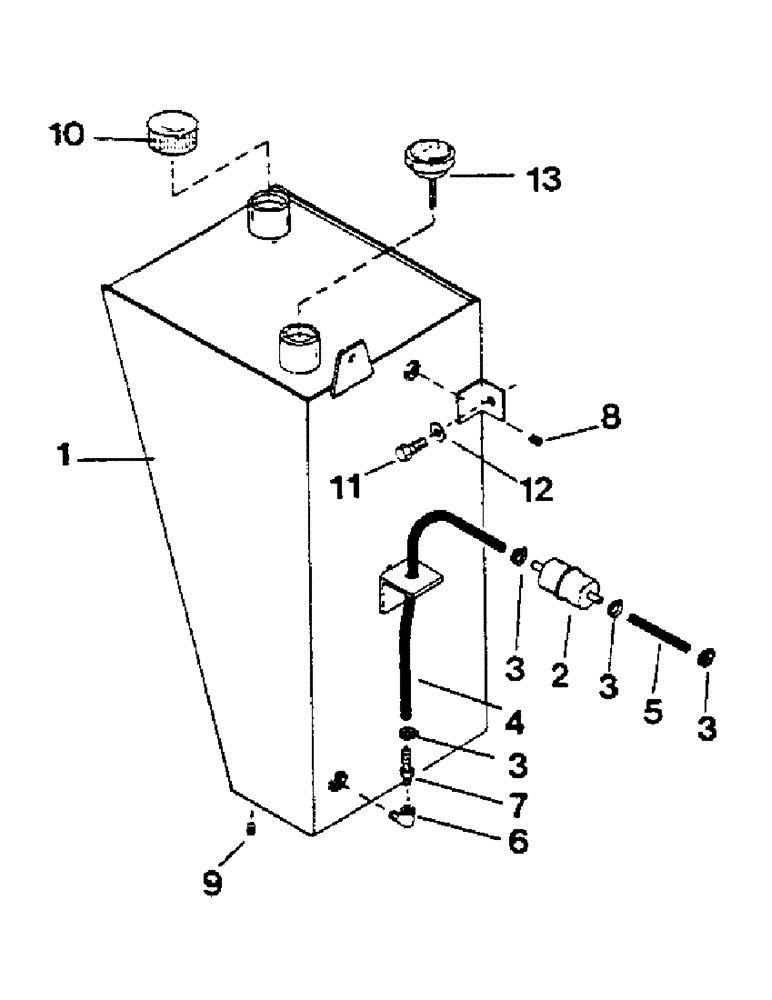

Запчасти Case IH 1802 (42) - FUEL TANK GROUP, MODEL AS1002

1

1015992

FUEL TANK

1шт.

2

1015105

GAS FILTER

1шт.

3

1012406

CLAMP

4шт.

4

1016179

FUEL HOSE,0.25" ID x 33.00"

Tank to Filter 0.25" ID x 33.00"

1шт.

5

1015119

HOSE, Serial Range: (Filter-engine)

1шт.

6

1015058

ELBOW

STREET ELBOW, 1/4" NPT

1шт.

7

1014670

FITTING

barb, 1/4" NPT

1шт.

8

1013114

PLUG

1/4" NPT

1шт.

9

1013113

PLUG

3/8" NPT

1шт.

10

1015991

FILLER CAP

CAP, filler

1шт.

11

1013020

BOLT

BOLT, 1/2" x 3/4"

4шт.

12

1011584

WASHER

flat

4шт.

13

1016063

ELECTRICAL GAUGE

GAUGE, fuel

1шт.
