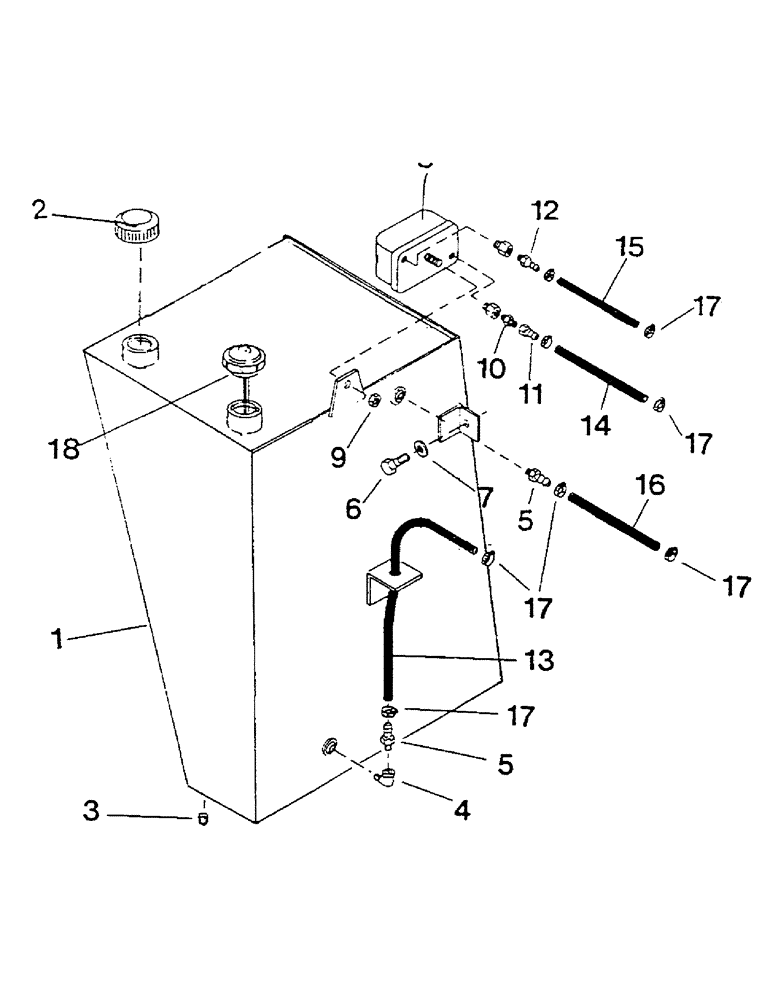

Запчасти Case IH 1600 (12) - FUEL TANK, 2000, 3000 & 1600

1

1024436

TANK

FUEL TANK ASSEMBLY

1шт.

2

1015991

FILLER CAP

CAP, filler

1шт.

3

1013113

PLUG

3/8" NPT

1шт.

4

1015058

ELBOW

STREET ELBOW

1шт.

5

1014670

FITTING

barb

2шт.

6

1013020

BOLT

BOLT, hex, 1/2" x 3/4"

4шт.

7

1011584

WASHER

4шт.

8

1013157

FILTER, FUEL

FUEL FILTER

1шт.

Ref: 8 1013157 Used on S/N CKB0011847 & Prior for S/N's after use spin on filter 311934A1 per ECN CD981225 It will require new bracket 306697A1 to attach filter to engine. A kit p/n 311932A1 is also released to adapt old fuel style filters to new. NAPO Tech. Note

1шт.

9

1013376

LOCK NUT

LOCKNUT, hex, 5/16"

1шт.

10

1013158

FITTING

ADAPTER

1шт.

11

1013159

FITTING

BARB, adapter

1шт.

12

1013160

FITTING

BARB

1шт.

13

1016180

FUEL HOSE,0.25" ID x 50.00"

Tank to Pump 0.25" ID x 50.00"

1шт.

14

1016178

FUEL HOSE,0.25" ID x 24.00"

Pump to Filter 0.25" ID x 24.00"

1шт.

15

1016179

FUEL HOSE,0.25" ID x 33.00"

Filter to Engine 0.25" ID x 33.00"

1шт.

16

1016179

FUEL HOSE,0.25" ID x 33.00"

Return 0.25" ID x 33.00"

1шт.

17

1012406

CLAMP

8шт.

18

1016063

ELECTRICAL GAUGE

FUEL GAUGE

1шт.
