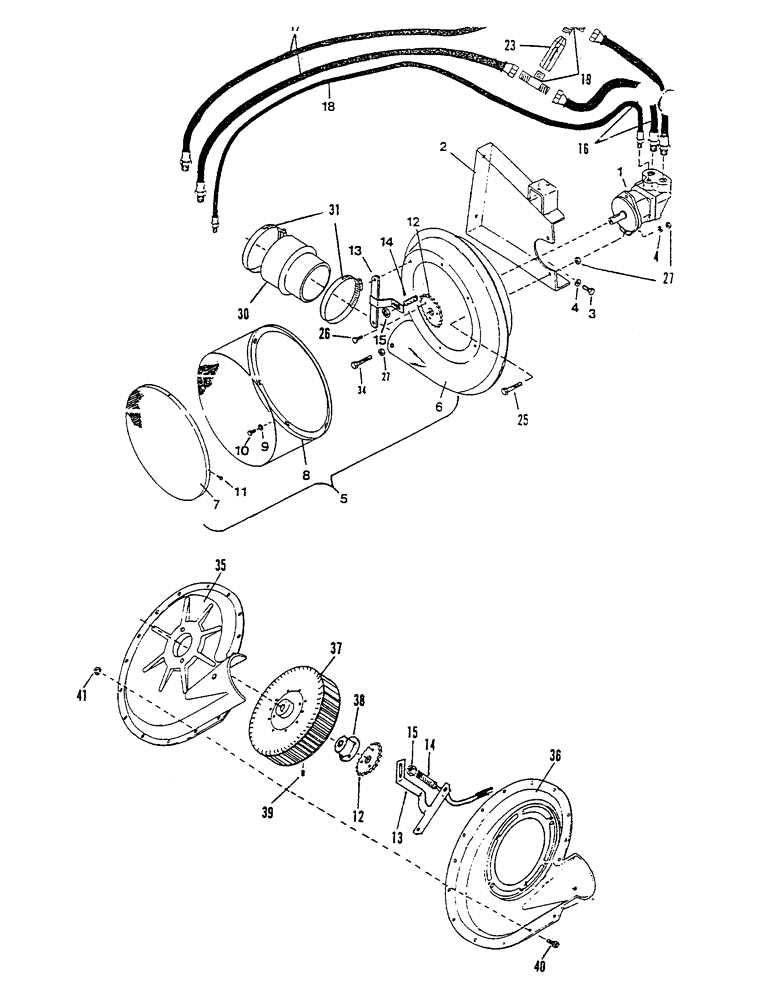

Запчасти Case IH 1600 (10) - BLOWER, HYDRAULIC (1600)

1

1013988

MOTOR, HYDRAULIC

HYDRAULIC MOTOR (Volvo F11-10)

1шт.

1013988R

REMAN-HYD MOTOR

1600

1шт.

1013988C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

312672A1

SEAL KIT

Seal Kit for 1013988

1шт.

2

1020527

MOUNTING PARTS

MOUNT ASSEMBLY

1шт.

3

1011605

BOLT

BOLT

2шт.

4

1011581

LOCK WASHER

LOCK WASHER

2шт.

5

1014980

BLOWER

ASSEMBLY (Includes 6-11)

1шт.

6

1020418

BLOWER

1шт.

7

1020540

SCREEN

END

1шт.

8

1020543

SCREEN

1шт.

9

1020416

WASHER

6шт.

10

1011595

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT

6шт.

11

1020555

SELF-TAP SCREW,M14 x 1.5 x 27.50mm

SELF TAPPING SCREW

4шт.

12

1020760

SPROCKET ASSY.

SPROCKET

1шт.

13

1020759

MOUNTING PARTS

MOUNT

1шт.

14

1016300

SENSOR

1шт.

15

1016492

LOCK NUT

NUT, jam

1шт.

16

1024327

HOSE ASSY.

HOSE ASSEMBLY ORDER PART #1024872

2шт.

17

1024870

HOSE ASSY.

HOSE ASSEMBLY ORDER PART #1024872

2шт.

18

1015017

HOSE ASSY.

HOSE ASSEMBLY

1шт.

19

1024325

FITTING

TEE ORDER PART #1024872

2шт.

20

1015130

ELBOW

ADAPTER, elbow

1шт.

21

1015025

HYD TUBE,19.1 mm Diameter, 3048 mm Length

TUBE-AS2000

2шт.

1024393

HYD TUBE,19.1 mm OD, 3353 mm Length

TUBE - AS3000

2шт.

22

1015026

HYD TUBE,12.7 mm Diameter, 3048 mm Length

TUBE-AS2000

1шт.

1024392

HYD TUBE,12.7 mm Diameter, 3353 mm Length

TUBE-AS3000

1шт.

23

1024320

VALVE, CHECK

CHECK VALVE ORDER PART #1024872

1шт.

24

1015131

ELBOW

ADAPTER, elbow

2шт.

25

1020415

SCREW

BOLT

2шт.

26

1011595

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT

2шт.

27

1011097

NUT,1/2"-13, G5

6шт.

28

1015019

CLAMP

large

4шт.

29

1015018

CLAMP

small

2шт.

30

1014892

HOSE,5.00" ID, 6.00" ID x 6.00"

- Reducer 5.00" ID, 6.00" ID x 6.00"

1шт.

31

1012455

CLAMP

2шт.

32

1024324

FITTING

TEE

1шт.

33

1024335

NUT

CAP

1шт.

34

1023712

BOLT AND NUT

air flow adjustment

2шт.

35

1024907

HOUSING

HALF, drive side

1шт.

36

1015650

HOUSING

HALF, inlet side

1шт.

37

1024908

FAN

ROTOR ASSEMBLY

1шт.

38

1033363

SCREW

HUB, taper lock

1шт.

39

1016535

SET SCREW

1шт.

40

1015646

BOLT

16шт.

41

1015656

NUT

LOCKNUT

16шт.
