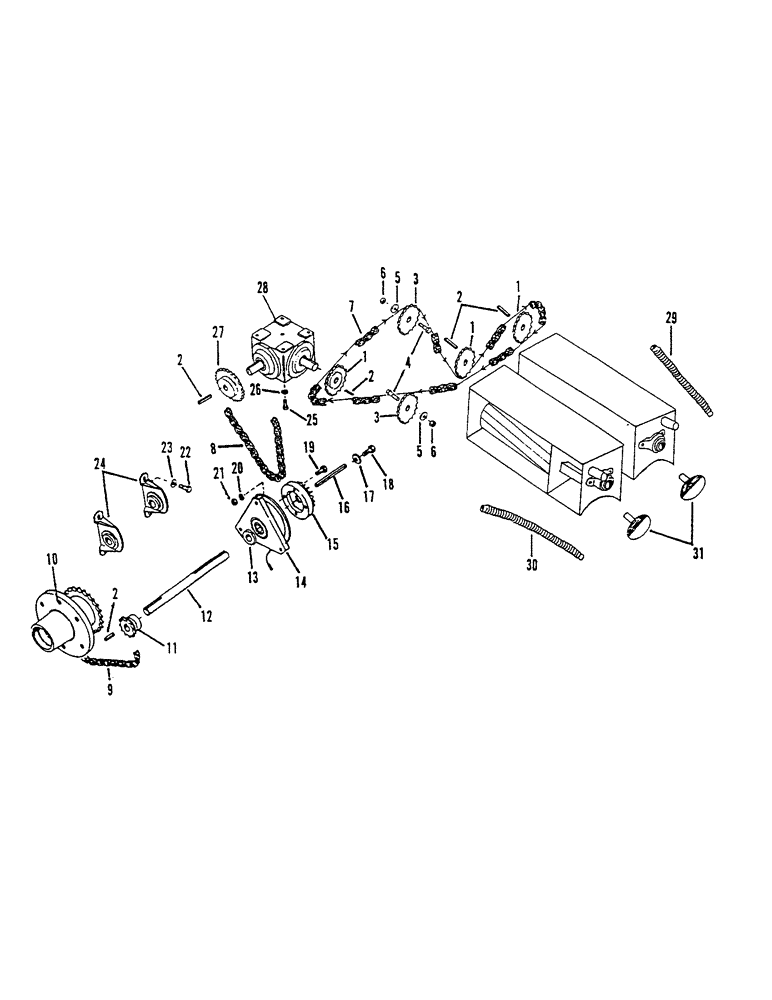

Запчасти Case IH 1600 (06) - DRIVELINE (1600)

1

1020040

SPROCKET ASSY.

SPROCKET, 16 tooth (for #40 chain)

3шт.

2

1012975

KEY

1/4" x 1/4" x 1 1/4"

5шт.

3

1020065

SPROCKET ASSY.

IDLER SPROCKET, 17 tooth

2шт.

4

1011611

BOLT

BOLT 1/2" X 3"

2шт.

5

1014443

WASHER

1/2"

1шт.

6

231-1448

NUT,1/2"-13, GB

1/2" nylock

1шт.

7

1022802

CHAIN, seed cup drive, 71 links (#40 chain)

1шт.

8

1012844

CHAIN, clutch to gearbox, 33 links (#60 chain)

1шт.

9

1012555

CHAIN (AG)

CHAIN, hub to clutch shaft, 32 links (#60 chain)

1шт.

10

1021050

HUB

AND SPROCKET ASSEMBLY

1шт.

11

1012976

DRIVE SPROCKET

SPROCKET, 10 tooth (for #60 chain)

1шт.

12

1021089

DRIVE SHAFT

SHAFT DRIVE

1шт.

13

1013418

COLLAR

SET COLLAR

1шт.

14

1021588

CLUTCH

1шт.

15

1021091

ADAPTER

ASSEMBLY

1шт.

16

1013084

KEY

1шт.

17

1014443

WASHER

1/2"

1шт.

18

1011605

BOLT

BOLT

1шт.

19

1013940

BOLT

BOLT

4шт.

20

1013242

WASHER, LOCK

LOCK WASHER

4шт.

21

1011587

NUT,1/4"-20, G5

4шт.

22

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, 3/8" x 1"

4шт.

23

1011583

WASHER

FLAT WASHER

1шт.

24

1018571

BEARING ASSY

PILLOW BLOCK BEARING

2шт.

25

1011599

BOLT

BOLT, 3/8" x 3/4"

4шт.

26

1013043

WASHER

FLAT WASHER

4шт.

27

1020724

SPROCKET ASSY.

SPROCKET ASSEMBLY, 18 tooth (for 18.4 x 26 tire)

1шт.

1021069

SPROCKET ASSY.

SPROCKET ASSEMBLY, 17 tooth (for 23.1 x 26 tire)

1шт.

28

0100908

GEARBOX ASSY

GEARBOX

1шт.

29

1022753

AIR HOSE,1.50" ID x 26.00"

1.50" ID x 26.00"

1шт.

30

1022753

AIR HOSE,1.50" ID x 26.00"

1.50" ID x 26.00"

1шт.

31

1020026

ROTATION INDICATOR

2шт.
