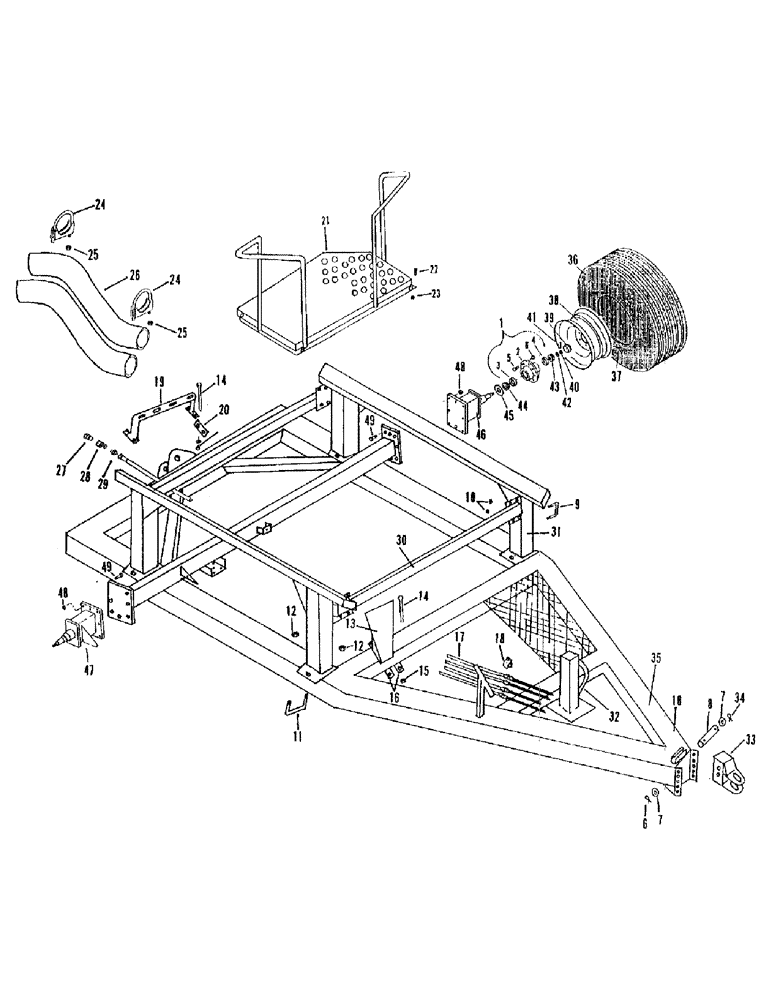

Запчасти Case IH 1600 (04) - FRAME & AXLE ASSEMBLY (1600)

1

1017759

HUB ASSY.

HUB ASSEMBLY, includes cups, nuts and studs

1шт.

2

1017760

HUB ASSY.

HUB ASSEMBLY (not available as a service part, order 1017759)

1шт.

3

1017761

BEARING CUP,3.5" ID x 3.8125" OD

CUP, inner

1шт.

4

1012359

CUP

outer

1шт.

5

1017762

STUD

8шт.

6

1013470

NUT

beveled

8шт.

7

1024781

WASHER

2шт.

8

1024863

CLAMP

PIN

1шт.

9

1016523

BOLT

U-BOLT, 1/2"

1шт.

10

231-1448

NUT,1/2"-13, GB

1/2"

1шт.

11

1018629

U-BOLT

3/4"

4шт.

12

232-14412

NUT,3/4"-10, GB

NUT, 3/4"

8шт.

13

1022709

FUEL TANK MOUNT ASSEMBLY (diesel models only)

1шт.

14

1011669

BOLT

1/2" X 6"

8шт.

15

231-1448

NUT,1/2"-13, GB

1/2"

1шт.

16

1022695

BOLTING PLATE

2шт.

17

1024393

HYD TUBE,19.1 mm OD, 3353 mm Length

HYDRAULIC TUBE ASSEMBLY

4шт.

18

1015019

CLAMP

HYDROZORB CLAMP

8шт.

19

1022927

MOUNT BRACKET

1шт.

20

1022926

BAR

2шт.

21

1022818

CATWALK AND RAIL ASSEMBLY

1шт.

22

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT 3/8" X 1"

1шт.

23

232-1446

NUT,3/8"-16, GC

NUT, 3/8"

1шт.

24

1013059

CLAMP

MUFFLER CLAMP

1шт.

25

232-1446

NUT,3/8"-16, GC

NUT, 3/8"

1шт.

26

1022947

AIR TUBE EXTENSION ASSEMBLY

2шт.

27

1018128

FITTING

QUICK COUPLER, male half

4шт.

28

1018131

FITTING

QUICK COUPLER, female half

4шт.

29

1024430

ADAPTER FITTING

4шт.

30

1024427

TUBE ASSEMBLY

2шт.

31

1022759

TANK SUPPORT ASSEMBLY

2шт.

32

1022893

JACK

1шт.

33

1024779

CLEVIS ASSEMBLY

1шт.

34

1016944

PIN

COTTER PIN, 1/4" x 2"

1шт.

35

1022728

FRAME ASSEMBLY

1шт.

36

1020720

TYRE/TIRE

TIRE, standard (18.4 x 26 diamond tread)

2шт.

1021067

TYRE/TIRE

TIRE, optional (21.5 x 26 diamond tread)

2шт.

37

1012383

VALVE STEM

4шт.

38

1020719

RIM

standard (used with 18.4 x 26 tire)

2шт.

1021068

RIM

optional (used with 21.5 x 26 tire)

2шт.

39

1013474

CAP

HUB CAP

1шт.

40

1013272

CARRIER

NUT, slotted

1шт.

41

1013473

ANGLE BAR

COTTER PIN

1шт.

42

1013475

WASHER

2шт.

43

1012354

ROLLER BEARING,1.625" ID x 2.09375" OD x 0.7656"

CONE, outer

1шт.

44

1017763

ROLLER BEARING,2.25" ID x 0.864"

CONE, inner

1шт.

45

1017764

SEAL

1шт.

46

1020775

SPINDLE

ASSEMBLY, L.H.

1шт.

47

1022912

SPINDLE ASSEMBLY, R.H.

1шт.

48

1011620

NUT,3/4"-10, G5

1шт.

49

1012059

BOLT

BOLT

1шт.
