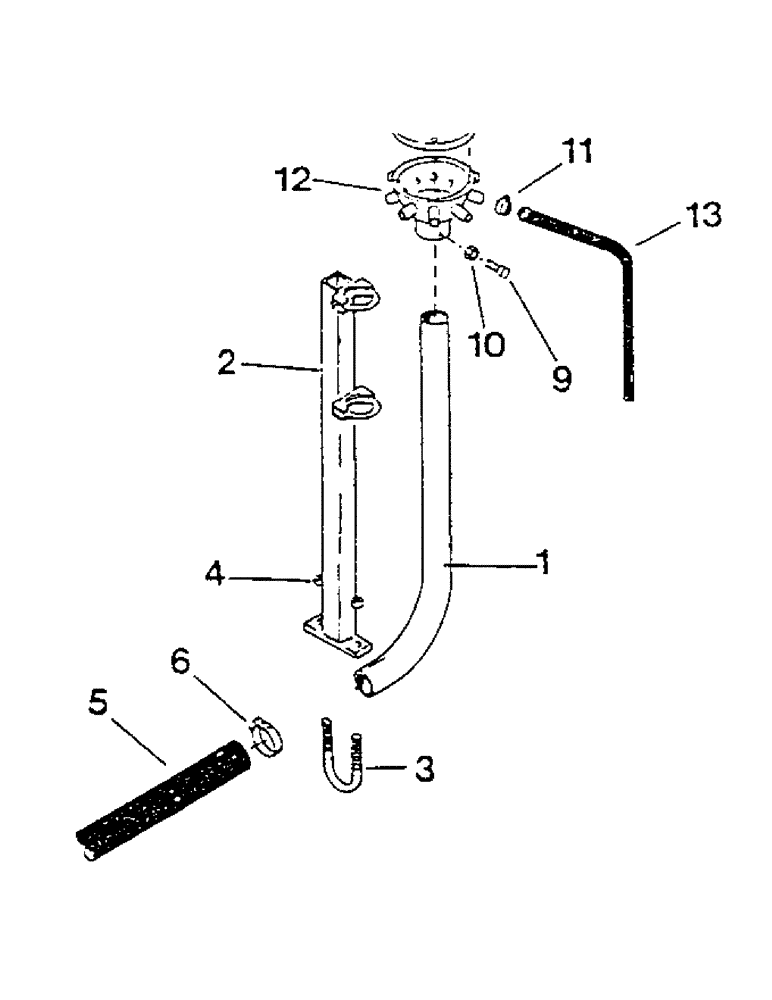

Запчасти Case IH 1600 (23) - SECONDARY MANIFOLD GROUP

1

1013209

TUBE,2.5" Diameter, 32.875" Length

ASSEMBLY, secondary

1шт.

2

1013211

LARGE PLATE

BRACKET, mounting

1шт.

3

1011821

BOLT

U-BOLT

1шт.

4

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

5

1012984

HOSE,2.50" ID

-50 ft. bundle 2.50" ID

1шт.

6

1012980

CLAMP

2.3" min.-3.25" max.

2шт.

7

1013191

COVER

9 ports

1шт.

1013038

COVER

10 ports (1" outlets) & 5 ports (1 1/2" outlets)

1шт.

1013192

COVER

7 & 11 ports (1" outlets) & 7 ports (1 1/2" outlets)

1шт.

1013193

COVER

8 & 12 ports (1" outlets) & 4 & 8 ports (1 1/2" outlets)

1шт.

1013194

COVER

manifold, 13 ports

1шт.

1014419

COVER

manifold, 14 ports & 6 ports (1 1/2" outlets)

1шт.

1018772

COVER

manifold, 15 ports

1шт.

8

1011598

BOLT

hex, 5/16" x 1"

4шт.

9

1013208

SET SCREW

1/4" x 1"

2шт.

10

1013518

LOCK NUT

NUT, jam, 1/4"

2шт.

11

1012979

CLAMP

.813" min.-1.75" max.

1шт.

12

1015042

TUBE ASSY.

MANIFOLD, 7 ports (1" outlets)

1шт.

1014485

TUBE ASSY.

MANIFOLD, 8 ports (1" outlets)

1шт.

1013199

TUBE ASSY.

MANIFOLD, 9 ports (1" outlets)

1шт.

1012426

TUBE ASSY.

MANIFOLD, 10 ports (1" outlets)

1шт.

1013200

TUBE ASSY.

MANIFOLD, 11 ports (1" outlets)

1шт.

1013201

TUBE ASSY.

MANIFOLD, 12 ports (1" outlets)

1шт.

1013202

COVER

MANIFOLD, 13 ports (1" outlets)

1шт.

1015044

COVER

MANIFOLD, 14 ports (1" outlets)

1шт.

1018773

MANIFOLD, 15 ports (1" outlets)

1шт.

1017904

TUBE ASSY.

MANIFOLD, 4 ports (1 1/2" outlets)

1шт.

1017905

TUBE ASSY.

MANIFOLD, 5 ports (1 1/2" outlets)

1шт.

1017906

TUBE ASSY.

MANIFOLD, 6 ports (1 1/2" outlets)

1шт.

1018763

TUBE ASSY.

MANIFOLD, 7 ports (1 1/2" outlets)

1шт.

1018764

TUBE ASSY.

MANIFOLD, 8 ports (1 1/2" outlets)

1шт.

13

1012985

HOSE,1.00" ID

. - 100 ft. bundle 1.00" ID

1шт.
