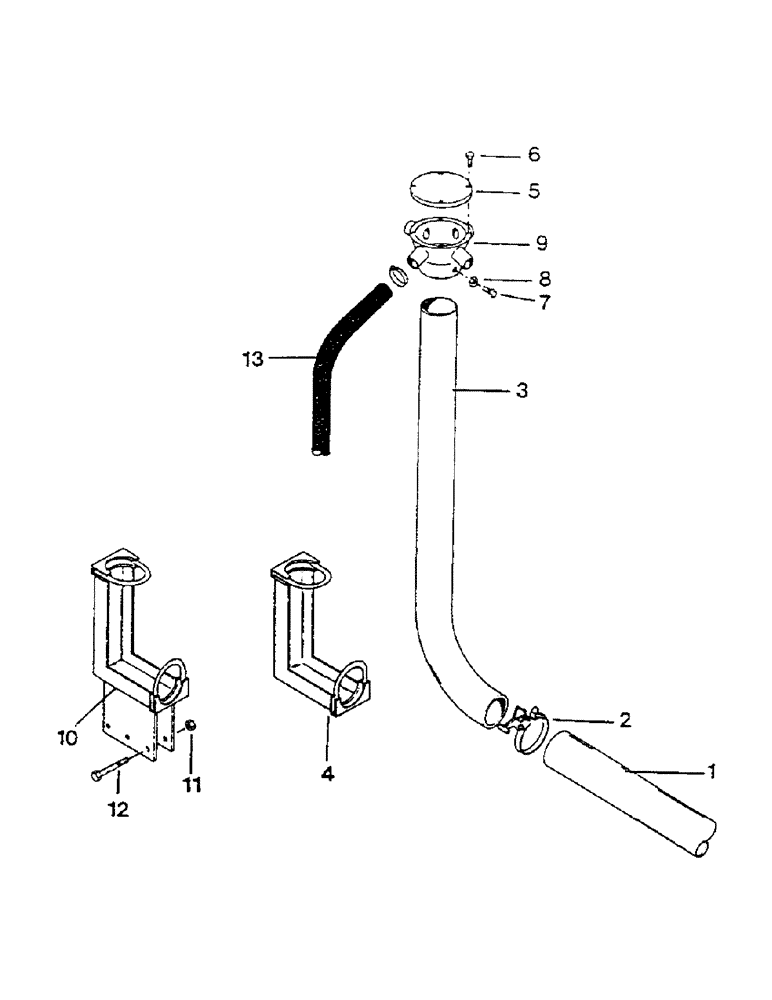

Запчасти Case IH 1600 (22) - PRIMARY MANIFOLD GROUP

1

1012982

HOSE

5.00" ID - 50 foot bundle

1шт.

2

1013259

CLAMP

ASSEMBLY

2шт.

3

1013161

MANIFOLD

TUBE ASSEMBLY, primary

1шт.

4

1014607

SUPPORT

ASSEMBLY, w/clamps

1шт.

5

1013039

COVER

manifold, 2, 3, 4, 6, 8 port

1шт.

1013190

COVER

manifold, 5 port

1шт.

1015860

COVER

manifold, 12 and 24 port

1шт.

1015861

COVER

manifold, 20 port

1шт.

1015862

COVER

manifold, 21 port

1шт.

6

1011598

BOLT

hex, 5/16" x 1"

4шт.

7

1013208

SET SCREW

1/4" x 1"

2шт.

8

1013518

LOCK NUT

NUT, jam, 1/4"

2шт.

9

1013166

TUBE ASSY.

MANIFOLD, 2 ports

1шт.

1013167

TUBE ASSY.

MANIFOLD, 3 ports

1шт.

1012428

COVER

MANIFOLD, 4 ports

1шт.

1013168

COVER

MANIFOLD, 5 ports

1шт.

1013169

COVER

MANIFOLD, 6 ports

1шт.

1015877

MANIFOLD, 8 ports

1шт.

1015880

TUBE ASSY.

MANIFOLD, 12 ports

1шт.

1015322

TUBE ASSY.

MANIFOLD, 20 ports

1шт.

1015879

TUBE ASSY.

MANIFOLD, 21 ports

1шт.

1015323

TUBE ASSY.

MANIFOLD, 24 ports

1шт.

10

1013065

SUPPORT

VERTICAL SUPPORT ASSEMBLY

1шт.

11

1011910

LOCK NUT

NUT, hex

4шт.

12

1016292

BOLT

BOLT

4шт.

13

1012985

HOSE,1.00" ID

50 ft. bundle 1.00" ID

1шт.
