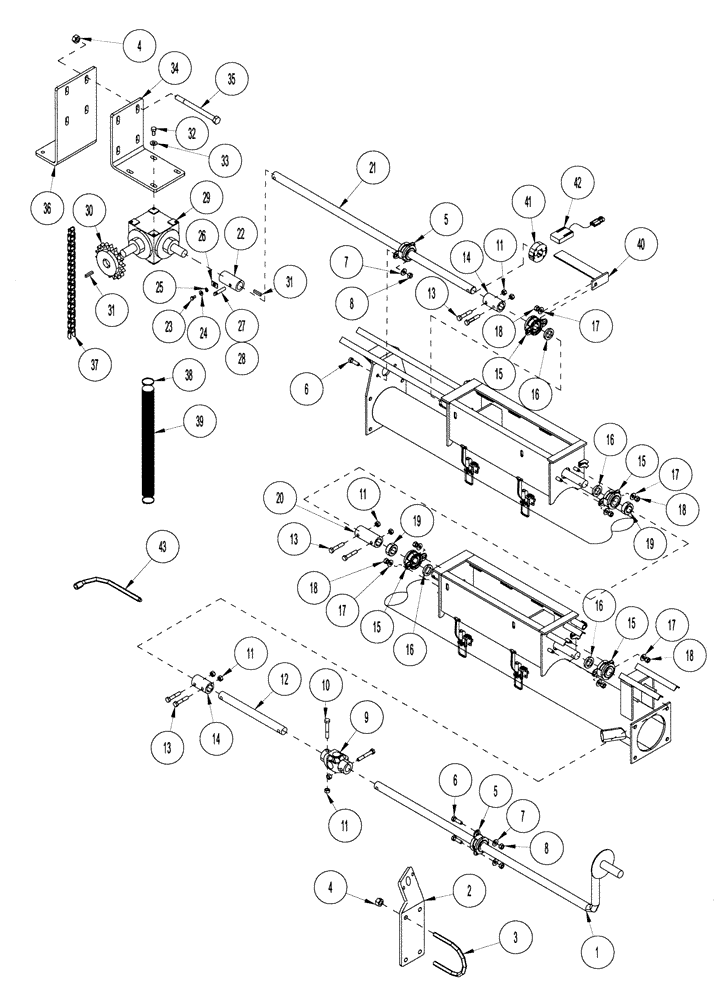

Запчасти Case IH 1124 (E17) - DRIVE TRAIN - METER

1

1032465

CRANK

Assy-Crank

1шт.

2

290120A1

MOUNTING PARTS

Mount Bearing

1шт.

3

1030623

U-BOLT

Bolt-U: .50 X 6.06 X 5.00 ZP

1шт.

4

231-1448

NUT,1/2"-13, GB

Nut-Nylock: .50 NC GR6 ZP

6шт.

5

1030961

FLANGED BEARING,25.63mm ID

Bearing Flange/A

2шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

95-11041

WASHER,3/8"

SAE .38 ZP

4шт.

9

1013301

JOINT

Joint-Universal (Rework)

1шт.

10

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

11

232-1446

NUT,3/8"-16, GC

10шт.

12

1027349

SHAFT

Shaft

1шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

14

1012996

TUBE,1.03" ID, 1.5" OD

Tube-Coupler

2шт.

15

1012986

BEARING ASSY,25.4mm ID

Bearing Flange/A

4шт.

16

1012978

SEAL

RUBBER SEAL Washer-Rubber

4шт.

17

1033262

WASHER

Washer-Flat: SAE .38 SS

8шт.

18

1033268

NUT

Nut-Nylock: .38 NC SS

8шт.

19

1013418

COLLAR

Collar-Set: 1.00

2шт.

20

1025074

TUBE,1.03" ID, 1.5" OD

Tube-Coupler

1шт.

21

290101A1

SHAFT

Shaft Connecting

1шт.

22

1013042

TUBE,1.017" ID, 1.5" OD

Tube-Coupler 1.5 X 1.00 X 3.00

1шт.

23

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

34

492-11025

LOCK WASHER,1/4"

1шт.

25

0100979

WASHER

Washer-Flat: SAE .25 ZP

1шт.

26

1013221

STRIP

Strip-Shear Pin

1шт.

27

1013044

SET SCREW

Screw-Set: .25 X .25 NC GR8 NP

1шт.

28

1013218

PIN

Shear, Brass

1шт.

29

0100908

GEARBOX ASSY

Assy-Bevel Gear Drive

1шт.

30

1022874

SPROCKET ASSY.

Sprocket-60BS16 X 1.00 Martin

1шт.

31

1012975

KEY

Key: .250 X .250 X 1.250

2шт.

32

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

33

492-11038

LOCK WASHER,3/8"

4шт.

34

290124A1

PLATE

Plate Gearbox Mount

1шт.

35

413-8120

BOLT,Hex, 1/2" - 13 x 7-1/2", Gr 5

Bolt-Hex: .50 X 7.50 NC GR5 ZP

4шт.

36

290125A1

PLATE

Plate Airtube Mount

1шт.

37

1022844

CHAIN (AG)

Chain-Roller: 33 Links #60

1шт.

37

1022965

LINK, CONNECTING

Link-Connector: #60 .750 Ptch

1шт.

37

1018683

LINK

Link-Offset: #60 OL

1шт.

38

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

4шт.

39

1021609

AIR HOSE,1.50" ID x 72.00"

2шт.

40

290354A1

BRACKET

Bracket/W Shaft Sensor (See Electrical For Hardware)

1шт.

41

290356A1

RING

Sensor Shaft Magnet Ring

1шт.

42

290353A1

SENSOR

Sensor Smart Shaft

1шт.

43

1013281

TOOL

Wldmt-Wrench

1шт.
