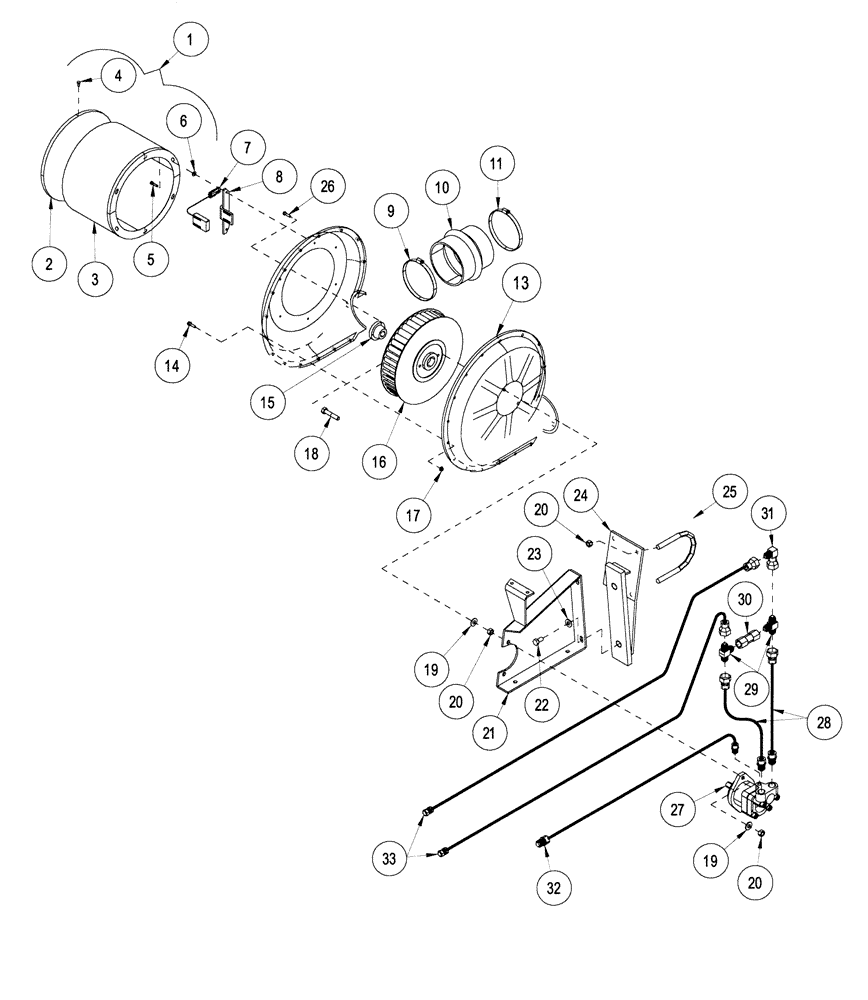

Запчасти Case IH 1124 (E15) - HYDRAULIC BLOWER AND MOUNTING

1

1020801

SCREEN

Screen Kit

1шт.

2

1020540

SCREEN

Screen-End

1шт.

3

1020543

SCREEN

Wldmt-Screen

1шт.

4

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

Screw-Zipin Tap: #12 X 1/2"

4шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

5

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

6

1020416

WASHER

Washer-Flat: .25 ZP

6шт.

7

290355A1

SENSOR

Magnetic Pickup

1шт.

8

290295A1

BRACKET, SUPPORTING

Bracket /A Fan Speed

1шт.

9

1016416

CLAMP

Clamp-Hose: S.S.#96 5.56-6.50

1шт.

10

1014892

HOSE,5.00" ID, 6.00" ID x 6.00"

Hump reducer

1шт.

11

214-1488

HOSE CLAMP,130.05mm - 152.4mm

1шт.

13

1020418

BLOWER

Blower-Hydraulic: Crary #20164 (Incl. 26)

1шт.

14

1015646

BOLT

Bolt-Wzlok: .25 X 1.00

16шт.

15

1020459

BUSHING

Hub-Taper Lock

1шт.

16

1024906

ROTOR

Rotor Assembly

1шт.

17

1015656

NUT

Nut-Flange: .25

16шт.

18

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

20

425-108

NUT,1/2" - 13, Gr 5

8шт.

21

1020527

MOUNTING PARTS

Wldmt-Hyd Mount

1шт.

22

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

24

1027324

MOUNTING PARTS

Wldmt-Fan Mount

1шт.

25

1030623

U-BOLT

Bolt-U: .50 X 6.06 X 5.00 ZP

2шт.

26

1033363

SCREW

Screw-S-H: .19 X 1.25 NC GR8 NP

3шт.

27

1013988

MOTOR, HYDRAULIC

Motor-Hyd: Volvo F11-10-Huchk

1шт.

1013988R

REMAN-HYD MOTOR

1124

1шт.

1013988C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

312672A1

SEAL KIT

Seal Kit For Volvo F11-10-Huchk

1шт.

28

1024327

HOSE ASSY.

Hose .75 X 019-12JICFSW/-12 OR

2шт.

29

218-556

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

Ftg-Tee TMK#2601-12-12

2шт.

30

1024320

VALVE, CHECK

Ftg-CK Val AFP#DC-750-5 P.S.I

1шт.

31

1027383

ELBOW

Ftg-Elbow: TMK#6500-12

2шт.

32

1024871

HOSE

Hose .38 X 120-8NPTM/-6 OR M

1шт.

33

1027380

HOSE ASSY.

Hose .75 X 120-12JICFSW/-8NPTM

2шт.
