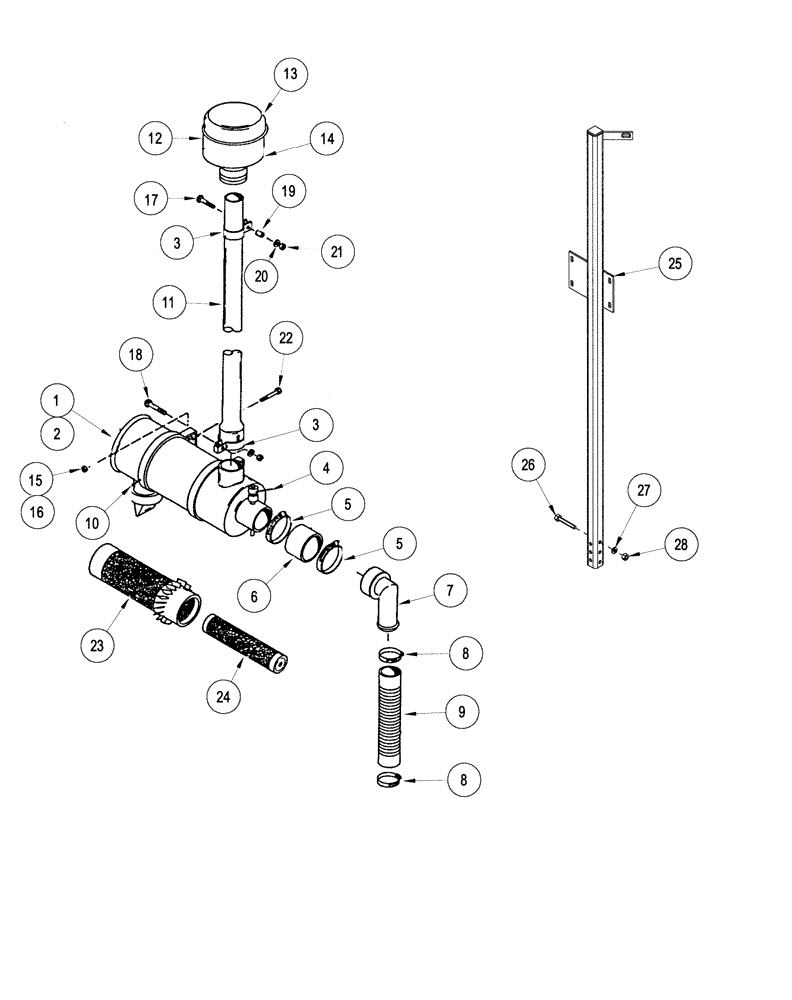

Запчасти Case IH 1124 (E13) - AIR CLEANER

1

1023303

AIR CLEANER

Assy-Air Cleaner Sub

1шт.

1

1014908

DECAL

Decal-Nameplate: Air Cleaner

1шт.

2

1013968

AIR CLEANER

Cleaner-Air FHG065256-001

1шт.

3

1016187

CLAMP

Clamp-Metal: 3.00

2шт.

4

1013282

DIPSTICK

Indicator-Restrictor (Order 582214C1)

1шт.

4

582214C1

INDICATOR

Indicator-Restrictor

1шт.

5

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2шт.

5

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2шт.

6

1014880

SLEEVE

Sleeve-Rubber (Order 1014985, Cut 2")

1шт.

6

1014985

HOSE,3.00" ID x 36.00"

Sleeve-Rubber (Bulk)

1шт.

7

1026870

PIPE

Wldmt-Air Pipe

1шт.

8

1014897

CLAMP

Clamp-Hose: S.S.#32 1.56-2.50 (Order 214-1428)

2шт.

8

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Clamp-Hose: S.S.#32 1.56-2.50

2шт.

9

1026871

INTAKE AIR HOSE,2.00" ID x 24.00"

Hose-Radiator: DAYCO #82111GL

1шт.

10

1014901

BRAKE BAND

BAND Band-Air Cleaner

2шт.

11

1015951

EXTENSION ASSY.

Ext-Air Stack: 3" X 33.5"

1шт.

12

1014899

PRECLEANER

Pre-Cleaner: #H00 1249-236-140 (Order 193867A1)

1шт.

12

193867A1

PRECLEANER

(AIR) Pre-Cleaner: #H00 1249-236-140

1шт.

13

365412R91

COVER

Cover, Assembly

1шт.

14

365413R1

BOWL

Bowl

1шт.

15

1011575

NUT,5/16"-18, G5

Nut-Hex: .31 NC GR2 ZP (Order 425-105)

4шт.

15

425-105

NUT,5/16"-18, G5

4шт.

16

1011582

WASHER

Washer-Flat: SAE .31 ZP

2шт.

17

1019545

CARRIAGE BOLT,5/16" - 18 x 2", Gr 5

Bolt-Crg: .31 X 2.00 NC GR5 ZP

1шт.

18

1019546

CARRIAGE BOLT,5/16" - 18 x 2 1/2", Gr 5

Bolt-Crg: .31 X 2.50 NC GR5 ZP

1шт.

19

1018328

SPACER

Pipe-Spacer

1шт.

20

1011582

WASHER

Washer-Flat: SAE .31 ZP

2шт.

21

231-1445

NUT,5/16"-18, GB

Nylock

2шт.

22

1011598

BOLT

Bolt-Hex: .31 X 1.00 NC GR5 ZP (Order 413-516)

4шт.

22

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

23

1013233

ELEMENT

Element

1шт.

24

1014900

ELEMENT

Safety Element (Order A173291)

1шт.

24

A173291

AIR FILTER

Safety Element

1шт.

25

1027356

STAND

Stand/W Air Cleaner

1шт.

26

1015174

BOLT

Bolt-Hex: .38 X 2.50 NC GR5 ZP (Order 413-640)

3шт.

26

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3шт.

27

95-11041

WASHER,3/8"

SAE .38 ZP

3шт.

28

232-1446

NUT,3/8"-16, GC

Nut-Nylock: .38 NC GR6 ZP (Order 232-1446)

3шт.

28

232-1446

NUT,3/8"-16, GC

3шт.
