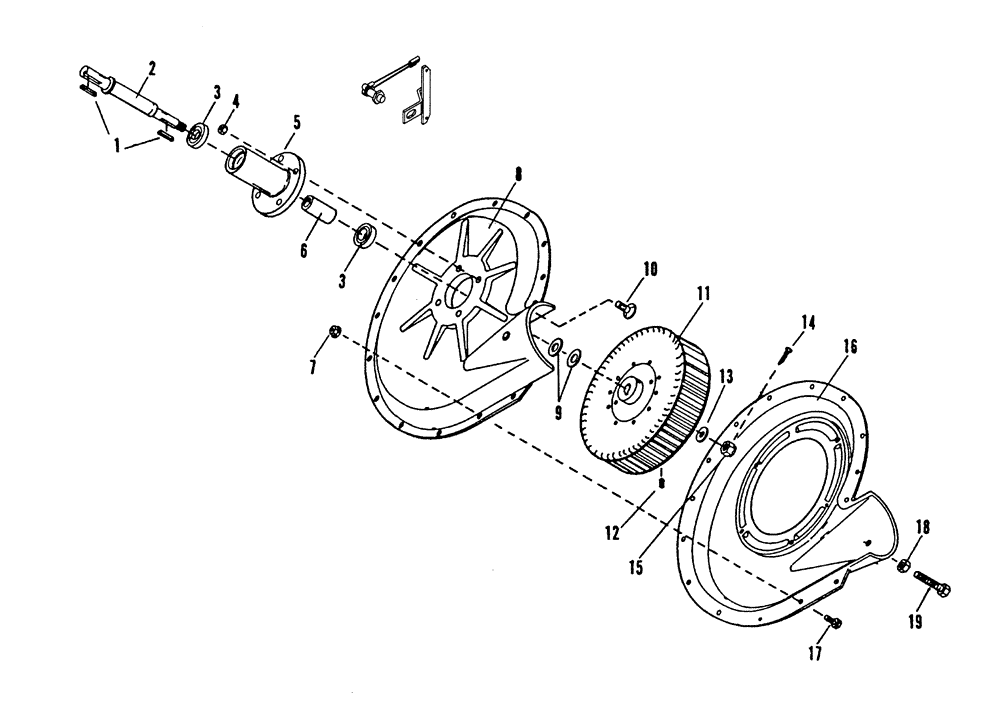

Запчасти Case IH 1124 (E10) - BLOWER PARTS - DIESEL

1024764

BLOWER

Blower Assembly (Complete)

1шт.

1

1015660

KEY

Key

2шт.

2

1016287

SHAFT

Shaft, Blower

1шт.

3

453879R91

BEARING ASSY,30mm ID x 62mm OD x 16mm W

Roller Bearing

2шт.

4

1015662

NUT

Nut

4шт.

5

1016288

HUB

Bearing Hub

1шт.

6

1016536

CLAMP

Tube, Clamp

1шт.

7

1015656

NUT

Locknut (Discontinued)

16шт.

8

1015655

HOUSING

Housing Half, Drive Side

1шт.

9

1016534

WASHER

Washer, Flat

2шт.

10

1015654

CAPSCREW

Cap Screw, Socket Head

4шт.

11

1016285

ROTOR ASSY.

Rotor Assembly

1шт.

12

1016535

SET SCREW

Set Screw

1шт.

13

495-11081

WASHER,3/4", SAE

1шт.

14

432-1020

COTTER PIN,5/32" x 1 1/4"

1шт.

15

425-1312

SLOTTED NUT,3/4"-16, G5

Castle Nut

1шт.

16

1015650

HOUSING

Housing Half, Inlet Side

1шт.

17

1015646

BOLT

Bolt

16шт.

18

425-108

NUT,1/2" - 13, Gr 5

2шт.

19

1023712

BOLT AND NUT

Bolt, Vane Adjustment

2шт.

20

1016300

SENSOR

Pickup-Magnetic

1шт.

21

1020759

MOUNTING PARTS

Wldmt-Mount-Tach Sensor

1шт.
