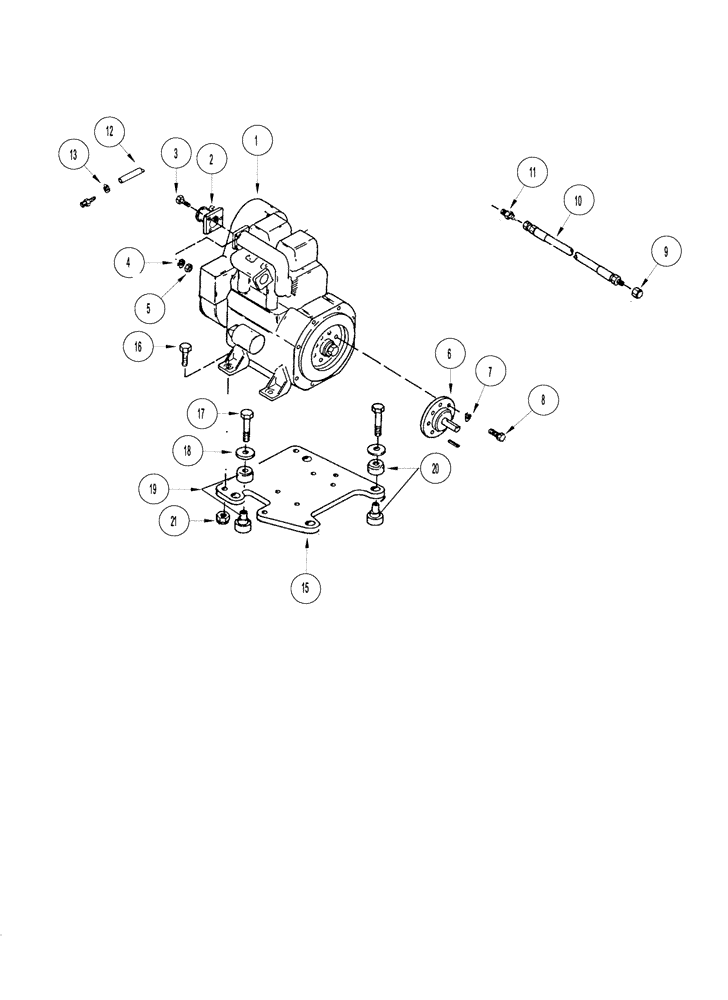

Запчасти Case IH 1124 (E09) - ENGINE MOUNTING

1

1033042

SKELETON ENGINE

Engine-9LD-625-2

1шт.

2

1033337

FLANGE ASSY

Wldmt-Flange

1шт.

3

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

4

92-11031

LOCK WASHER,5/16"

3шт.

5

425-105

NUT,5/16"-18, G5

3шт.

6

1012363

SHAFT

Stubshaft-Drive

1шт.

7

892-11010

LOCK WASHER,M10

8шт.

8

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

9

CAS1018143

FITTING

Ftg-Adapter: AQ#15.063-8-6

1шт.

10

1017737

HOSE ASSY.

Hose .38 X 012-6JICM/-6JICFSW

1шт.

11

1017738

FITTING

Ftg-Cap TMK#304-C-6

1шт.

12

1014929

HOSE,0.38" ID x 8.50"

Crankcase Breather (Order 8.5" From Bulk #1021319)

1шт.

13

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

15

1014736

LARGE PLATE

PLATE, LARGE Plate-Engine Mount

1шт.

16

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Bolt-Hex: .63 X 2.25 NC GR5 ZP

4шт.

17

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

Bolt-Hex: .63 X 4.00 NC GR5 ZP

4шт.

18

1014741

WASHER

Washer-Snubbing

4шт.

19

1014738

ISOLATOR

Isolator-90#

2шт.

20

1014739

ISOLATOR

Isolator-150#

2шт.

21

231-14410

NUT,5/8"-11, GB

8шт.
