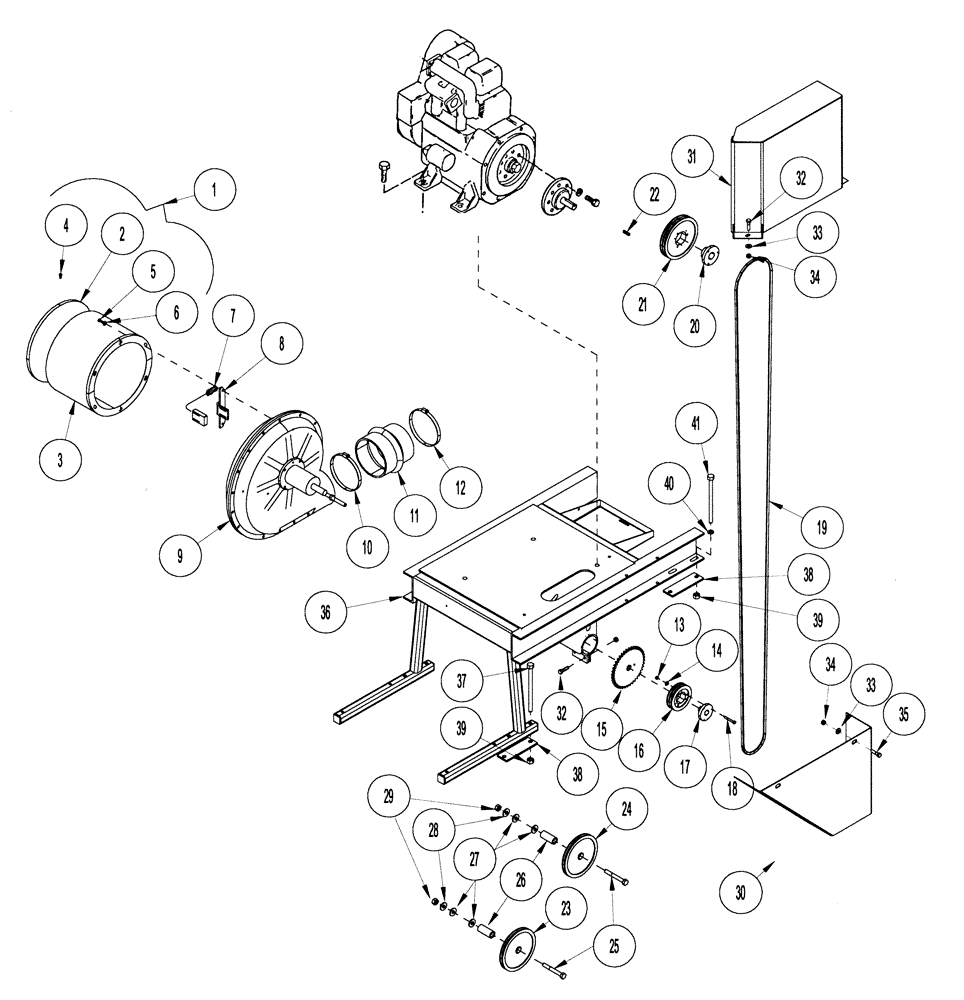

Запчасти Case IH 1124 (E06) - DIESEL BLOWER MOUNTING

1

1020801

SCREEN

Screen Kit

1шт.

2

1020540

SCREEN

Screen-End

1шт.

3

1020543

SCREEN

Wldmt-Screen

1шт.

4

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

Screw-Zipin Tap: #12 X 1/2"

4шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

5

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

6

1020416

WASHER

Washer-Flat: .25 ZP

6шт.

7

290355A1

SENSOR

Sensor Smart Fan

1шт.

8

290295A1

BRACKET, SUPPORTING

Bracket/See M200 Electrical Page For Breakdown

1шт.

9

1024764

BLOWER

Modification-Diesel Blower

1шт.

10

1016416

CLAMP

Clamp-Hose: S.S.#96 5.56-6.50

1шт.

11

1014892

HOSE,5.00" ID, 6.00" ID x 6.00"

Hump reducer

1шт.

12

214-1488

HOSE CLAMP,130.05mm - 152.4mm

1шт.

13

425-104

NUT,1/4"-20, Cl 5

3шт.

14

1013297

LOCK WASHER

Washer-Lock: .25 NP

3шт.

15

1016120

SPROCKET ASSY.

Sprocket-Machining

1шт.

16

1014865

SHEAVE

Sheave-2-3V-4.12 OD Martin

1шт.

17

1014868

HUB

Hub-Taper Lock-SH .880 Bore

1шт.

18

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

3шт.

19

1016394

BELT

Belt-Set: - 3V-710 (High) Replaced by 312259A1

1шт.

19

312259A1

SET OF BELTS

V-Belt, Set - 3V-710 (High)

1шт.

19

1020078

SET OF BELTS,67.00" L

2/3V-670 (Standard, Replaced by 312258A1

1шт.

19

312258A1

SET OF BELTS

V-Belt, Set - 2/3V-670 (Standard)

1шт.

19

1032909

SET OF 2 BELTS

Belt-Set: - 2/3VX750 Gates (Dsump) Replaced by 312603A1

1шт.

19

312603A1

SET OF 2 BELTS

Belt-Set: - 2/3VX750 Gates (Dsump)

1шт.

20

1012343

HUB

Hub-Taper Lock-SDS 1.190 Bore

1шт.

21

1014863

SHEAVE

Sheave-2-3V-6.90 OD Martin (Standard)

1шт.

21

1014864

SHEAVE

Sheave-8.00" QD Type D3-2Groov (High & Dsump)

1шт.

22

1012975

KEY

Key: .250 X .250 X 1.250

1шт.

23

290529A1

PULLEY

Pulley Idler Flanged (High & Dsump)

1шт.

24

290529A1

PULLEY

Pulley Idler Flanged (Standard, High & Dsump)

1шт.

25

61-36256

HEX SOC SCREW,5/8"-11 x 3 1/2"

Screw-S-HL .63 X 3.50 NC GR8 NP (Standard)

1шт.

25

61-36256

HEX SOC SCREW,5/8"-11 x 3 1/2"

Screw-S-HL .63 X 3.50 NC GR8 NP (High & Dsump)

2шт.

26

1029619

SPACER

Tube-Spacer (Standard)

1шт.

26

1029619

SPACER

Tube-Spacer (High & Dsump)

2шт.

27

1013004

WASHER

Washer-Flat: SAE .63 ZP (Standard)

2шт.

27

1013004

WASHER

Washer-Flat: SAE .63 ZP (High & Dsump)

4шт.

28

1011813

LOCK WASHER

Washer-Lock: .63 ZP (Standard) (Order 492-11052)

1шт.

28

1011813

LOCK WASHER

Washer-Lock: .63 ZP (High & Dsump) (Order 492-11052)

2шт.

29

425-1010

NUT,5/8"-11, G5

1шт.

30

1027347

BELT

Guard-Belt

1шт.

31

1025461

BELT

Wldmt-Belt Guard

1шт.

32

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

33

95-11041

WASHER,3/8"

SAE .38 ZP

2шт.

34

232-1446

NUT,3/8"-16, GC

2шт.

35

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

36

1027346

PLATFORM

Wldmt-Engine Platform

1шт.

37

1020848

BOLT

Bolt-Hex: .50 X 8.00 NC GR5 ZP

4шт.

38

1021679

LARGE PLATE

PLATE, LARGE Plate-Backup

4шт.

39

231-1448

NUT,1/2"-13, GB

Nut-Nylock: .50 NC GR6 ZP

8шт.

40

1011584

WASHER

Washer-Flat: SAE .50 ZP

4шт.

41

1027367

BOLT

Bolt-Hex: .50 X 9.00 NC GR5 ZP

4шт.
