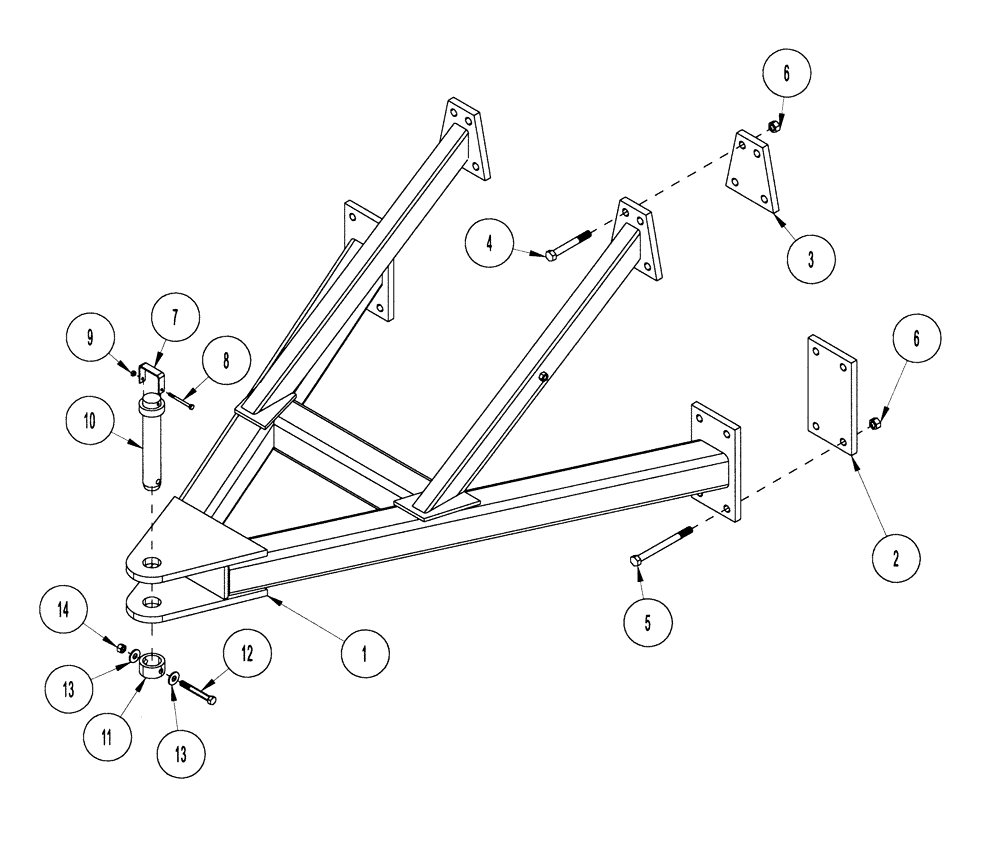

Запчасти Case IH 1124 (E44) - DRAWBAR-REAR

1

1027320

DRAWBAR

Wldmt-Rear Drawbar

1шт.

2

1027305

LARGE PLATE

PLATE, LARGE Plate-Bolting

2шт.

3

1027319

LARGE PLATE

PLATE, LARGE Plate-Bolting

2шт.

4

426-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 8

Bolt-Hex: .75 X 8.50 NC GR8 ZP

8шт.

5

413-12176

BOLT,3/4"-10 x 11", Gr 5

Bolt-Hex: .75 X 11.00 NC GR5 ZP

8шт.

6

232-14412

NUT,3/4"-10, GB

Nut-Nylock: .75 NC GR6 ZP

16шт.

7

1027995

PIN

Handle-Pin

1шт.

8

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

Bolt-Hex: .25 X 3.00, NC

1шт.

9

230-4214

LOCK NUT,1/4"-20, GA

Centerlock: .25

1шт.

10

1027969

PIN

Hitch Pin

1шт.

11

1027967

COLLAR

Collar

1шт.

12

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Bolt-Hex: .50 X 4.00, NC GR5

1шт.

13

1011584

WASHER

Washer-Flat: .50 SAE

2шт.

14

231-1448

NUT,1/2"-13, GB

Nut-Nylock: .50

1шт.
