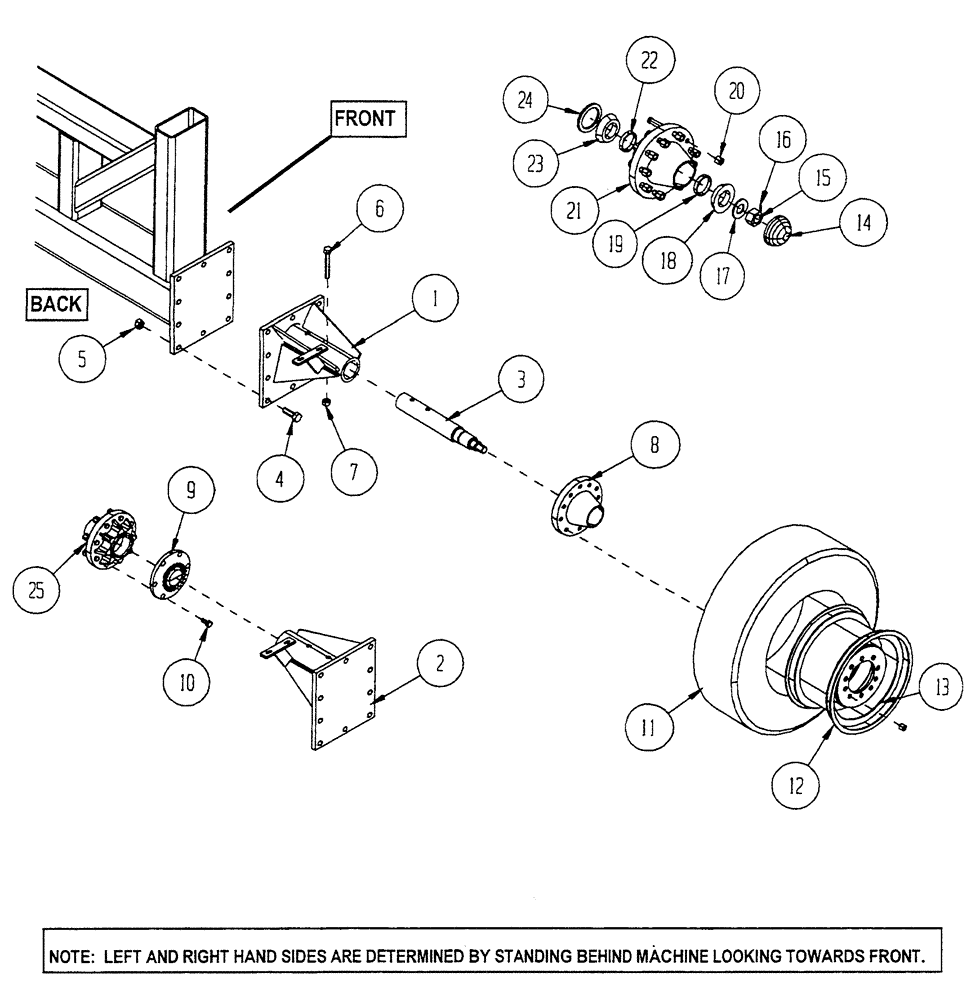

Запчасти Case IH 1124 (E43) - AXLE-REAR: 120

1

290098A1

HOUSING

Housing W/ Spindle LH

1шт.

2

1027411

SPINDLE

Wldmt-Spindle: Housing RH

1шт.

3

1027096

AXLE SHAFT

Spindle

2шт.

4

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

20шт.

5

231-14412

LOCK NUT,3/4"-10, GB

20шт.

6

1013816

BOLT (MACHINE)

Bolt-Hex: .63 X 5.00 NC GR5 ZP

2шт.

7

231-14410

NUT,5/8"-11, GB

2шт.

8

1027072

HUB ASSY.

Assy-Hub 10 Bolt 12000LB RH

1шт.

9

1027148

FLANGE

Wldmt-Flange & Sprocket

1шт.

10

1030332

SCREW

Screw: .50 X 1.25

6шт.

11

1027071

TYRE/TIRE

Tire-Mntd: .23.1 X 26 12PLY R3

2шт.

11

1027069

TYRE/TIRE

Tire 23.1-26 12 PLY R-3

2шт.

12

1027070

RIM

WHEEL Wheel 20X26 10Hole Tit 0507728

2шт.

13

1018564

VALVE

Valve-Stem

2шт.

14

1027683

BOLT

Bolt-Dust Cap: CT&D #WB53

6шт.

15

1027682

DUST CAP

Dust-Cap: CT&D #DC27

2шт.

16

1027681

GASKET

Gasket-Outer: CT&D #DC27

2шт.

17

425-1318

SLOTTED NUT,1 1/8"-12, G5

Nut-Slotted

2шт.

18

1025346

PIN, SPLIT (COTTER)

PIN, COTTER Pin-Cotter: .19 X 2.50 NP

2шт.

19

1027577

WASHER

Washer-Spindle

2шт.

20

1027680

ROLLER BEARING

Cone-Outer: CT&D #460

2шт.

21

714428

BEARING CUP

Cup-Outer: CT&D #453A

2шт.

22

1027678

NUT

Nut-Hub: CT&D #WB52

20шт.

23

1033321

HUB ASSY.

Assy-Hub W/ Cups & Studs LH

1шт.

23

1027684

HUB

Assy-Hub W/ Cups & Studs RH

1шт.

23

1030305

STUD

Stud: 10 Bolt Hub (12 KIP)

20шт.

24

54404R1

BEARING ASSY,2.25" ID x 112.712 mm OD x 23.812 mm

Cup-Inner: CT&D #39520

2шт.

25

ST2016A

BEARING

Cone-Inner: CT&D #39585

2шт.

26

1027675

SEAL

Seal-Inner: CT&D #SE48

2шт.

27

1033019

HUB ASSY.

Assy-Hub 10 Bolt 12000 LB RH

1шт.
