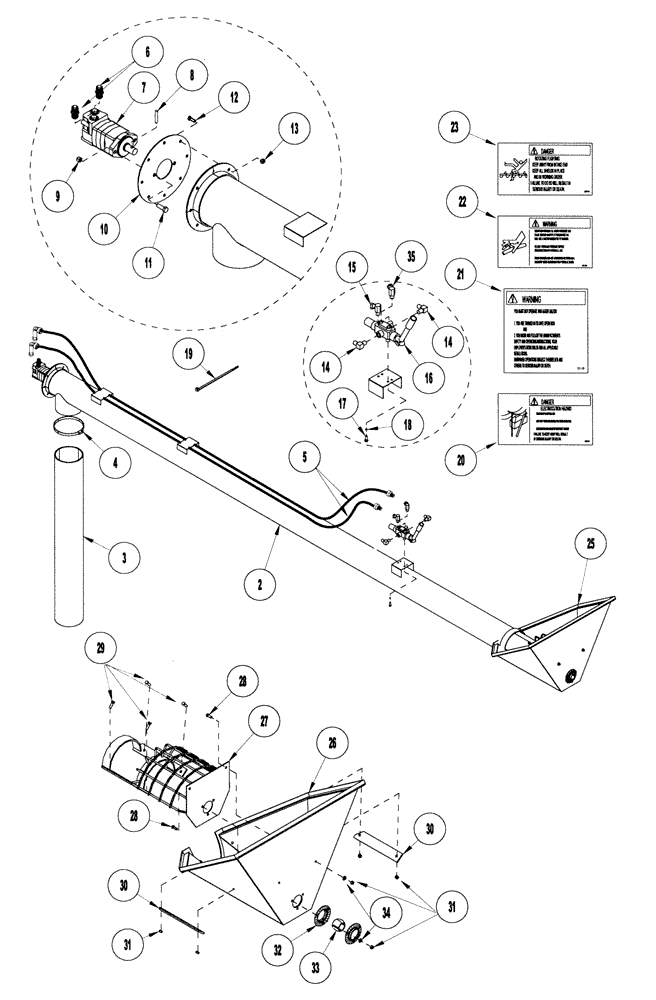

Запчасти Case IH 1124 (E41) - AUGER 8"

1

1030370

AUGER

Assy-Auger: 8.0 X 18'

1шт.

2

1030373

AUGER

Auger: 8.0 X 18'

1шт.

3

1030082

HOSE,8.00" ID x 60.00"

Flex: Spout Auger

1шт.

4

214-14140

HOSE CLAMP,#140, 8.38" - 9.25", Type F Worm

Clamp-Hose: #140 6.43-9.25

1шт.

5

1027943

HOSE

Hose .50 X 192-10JICFSW90L/8NM

2шт.

6

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Ftg-Adapter: TMK#6400-10 Strait

2шт.

7

1032092

MOTOR, HYDRAULIC

Motor-Hyd: Char-Lynn 104-1073

1шт.

8

1021532

PIN

Pin-Spiralok: .38 X 2.00 NP

1шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

1030087

LARGE PLATE

PLATE, LARGE Plate-End: Hyd Motor Mount 8.0

1шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

13

232-1446

NUT,3/8"-16, GC

8шт.

14

218-927

ELBOW,90 Degree, 1/2" NPTF Male x 1/2" NPSM Fem Sw

Ftg-Elbow TMK#1501-8-8

2шт.

15

1024426

FITTING

Ftg-Elbow TMK#2501-12-12

2шт.

16

1021498

VALVE

Valve-Manual: Control 4 Way

1шт.

17

1021800

BOLT

Bolt-Hex: .38 X .50 NC GR5 ZP

4шт.

18

1011586

LOCK WASHER

Washer-Lock: .38 ZP

4шт.

19

1021284

CABLE TIE

CABLE STRAP Tie-8.00

3шт.

20

1023327

DECAL

Decal-Danger: 205-3-1011

1шт.

21

1023328

DECAL

Decal-Warning: 205-3-1012

1шт.

22

1023329

DECAL

Decal-Warning: 205-3-1019

1шт.

23

1023330

DECAL

Decal-Danger: 205-3-1014

1шт.

24

1030364

DECAL

Decal-Auger: 8.0 X 18' (Discontinued)

1шт.

25

1032458

HOPPER

Assy-Auger Hopper 8"

1шт.

26

1033394

HOPPER

Hopper-8.00 Modified

1шт.

27

CAS1030093

GUARD

Hopper-Guard: Bolt-In

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

29

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

30

1030645

BACK PLATE

Plate-Backing: Hopper

2шт.

31

232-1446

NUT,3/8"-16, GC

9шт.

32

1030646

FLANGED BEARING

Flangette-Auger Bearing

2шт.

33

1030647

BUSHING,38.89mm ID x 63.5mm OD

Bearing-Wood

1шт.

34

95-11041

WASHER,3/8"

SAE .38 ZP

5шт.

1030386

WIPER

Flighting (Not Shown)

1шт.

1030369

TUBE,177.8 mm ID, 203.2 mm OD

Auger Tube (Not Shown)

1шт.

1023836

SEAL KIT

Seal Kit For Hydraulic Motor (#7) W/SN Ending 005

1шт.

1023837

SEAL KIT

Seal Kit For Hydraulic Motor (#7) W/SN Ending 006

1шт.
