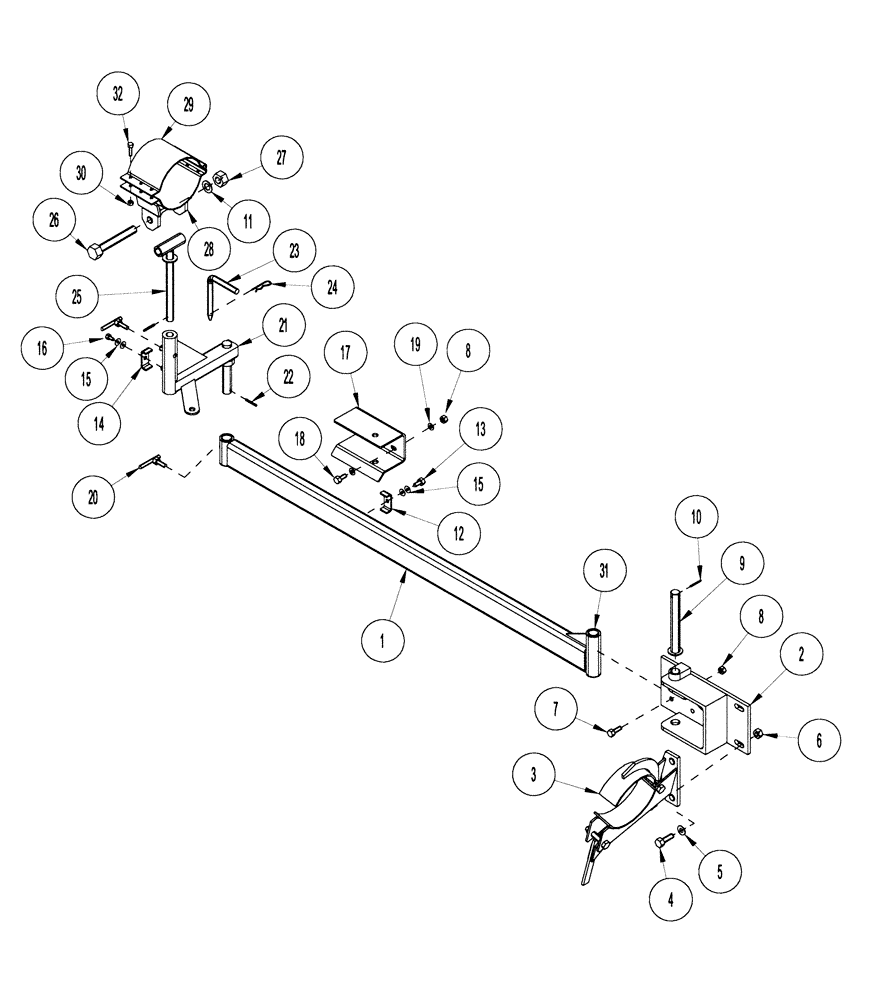

Запчасти Case IH 1124 (E39) - AUGER MOUNT

1

1026637

ARM ASSY.

Assy-Arm Long W/ Bushings

1шт.

2

1026644

MOUNTING PARTS

Mount Rear

1шт.

3

1030090

CLAMP

Assy-Clamp: 8.00 Rear

1шт.

4

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

5

1013024

WASHER

Washer-Flat: .63 ZP

2шт.

6

425-1010

NUT,5/8"-11, G5

2шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

8

231-1448

NUT,1/2"-13, GB

Nut-Nylock: .50 NC GR6 ZP

10шт.

9

1027531

PIN

Wldmt-Pin

1шт.

10

38-21224

PIN,3/16" x 1 1/2", Coiled

Pin, 3/16" x 1 1/2", Coiled

1шт.

11

1016663

WASHER

Washer-Flat: SAE 1.00 ZP

1шт.

13

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

14

1024284

CLAMP

Clamp-Hose Small

9шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

17

1026626

BRACKET

Bracket-Auger

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

19

1011584

WASHER

Washer-Flat: SAE .50 ZP

2шт.

20

1024089

HANDLE

Wldmt-Handle

2шт.

21

1026651

ARM ASSY.

Wldmt-Arm Short

1шт.

22

1011726

ROLL PIN

Pin-Roll: .25 X 2.00 NP

2шт.

23

1026627

PIN

Pin-Lock

1шт.

24

1015033

PIN

Pin-Hair: .36 X 2.50 ZP

1шт.

25

290123A1

TUBE,587.4, 114.3 mm Length

Pivot/W Tube

1шт.

26

1018839

BOLT

Bolt-Hex: 1.00 X 7.00 NC GR5 ZP

1шт.

27

232-14416

NUT,1"-8, GC

Nut-Nylock: 1.00 NC GR6 ZP

1шт.

28

1030089

CLAMP

Assy-Clamp: 8.00

1шт.

29

1030088

CLAMP

Clamp-Band

1шт.

30

232-1446

NUT,3/8"-16, GC

6шт.

32

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
