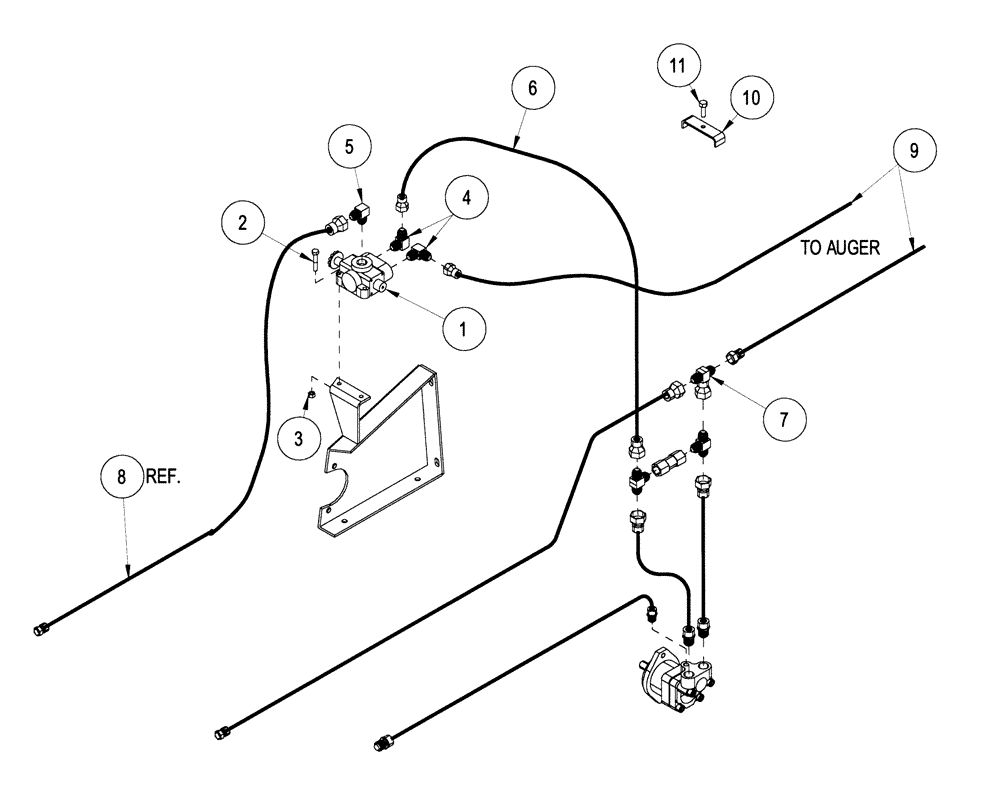

Запчасти Case IH 1124 (E37) - HYDRAULIC AUGER FITTINGS

1

1024240

VALVE

Valve-Selector: VS4BKLF6

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

3

425-106

NUT,3/8"-16, Cl 5

8шт.

4

1033399

FITTING

Ftg-Elbow TMK#2501-12-12

2шт.

5

1024328

FITTING

Ftg-Elbow TMK#2501-L-12-12

1шт.

6

1027428

HOSE ASSY.

Hose .50 X 408-12JICFSW Both

2шт.

7

1027381

TEE

Ftg-Tee TMK#6600-12-12

1шт.

8

1027380

HOSE ASSY.

Hose .75 X 120-12JICFSW/-8NPTM

1шт.

9

1026659

HOSE ASSY.

Hose .50 X 240-12JICFSW Both

2шт.

10

1024284

CLAMP

Clamp-Hose Small

9шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.
