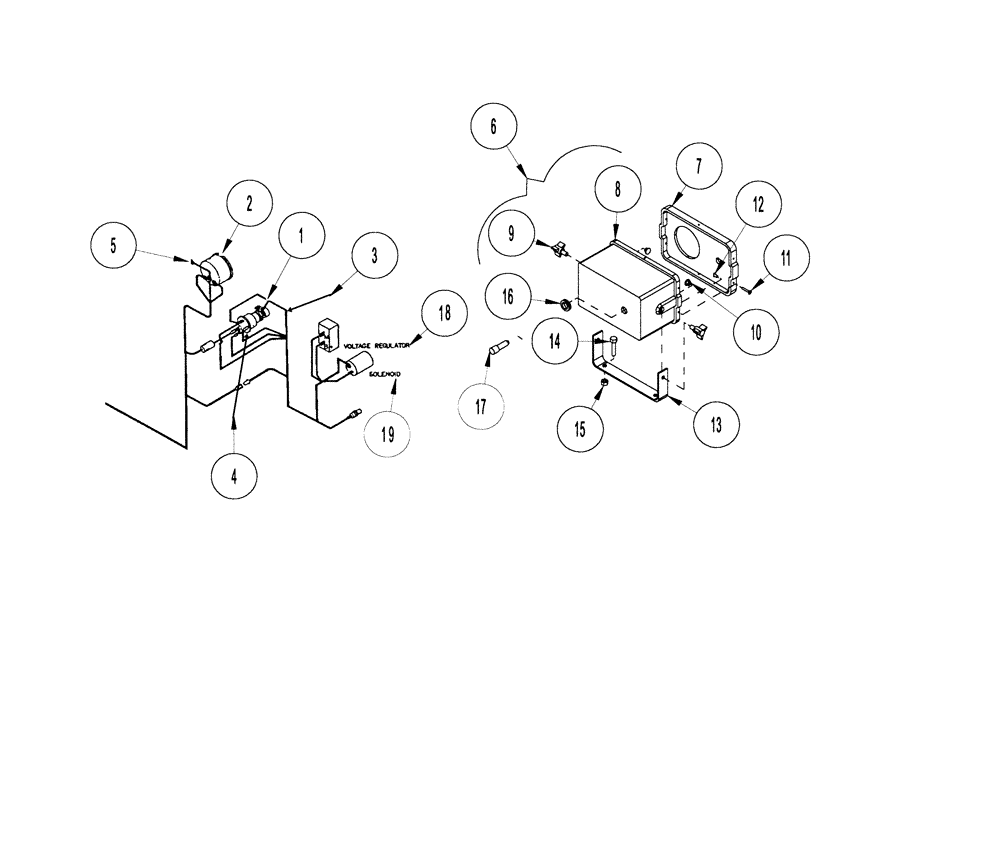

Запчасти Case IH 1124 (E36) - M200 ELECTRICAL SYSTEM - DIESEL ENGINE

1

1016194

IGNITION SWITCH

Switch Cole Hersey 95-613

1шт.

2

1016068

METER

Tachometer Datcon 71767-26

1шт.

3

290359A2

HARNESS

Harness-Ign, Oil Press, & ALT

1шт.

4

1016388

ELEC. TERMINAL PIN

Connector-Sgle F To Dual M

1шт.

5

290169A1

ELECTRICAL WIRE

WIRE Wire-Ground : Tach

1шт.

6

1032469

BOX

Assy-Box: Tach Case-IH

1шт.

6

1033352

DECAL

Decal-Logo: Case-IH (Not Shown)

1шт.

6

1033353

DECAL

Decal-Indicator: Off-On-Start (Not Shown)

1шт.

7

1032460

COVER

Cover-Tachometer Box

1шт.

8

1032459

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Box-Tachometer

1шт.

9

1032464

KNOB

Knob-3 ARM: Tachometer Box

2шт.

10

1032462

NUT

Nut-Insert: .313

2шт.

11

1016334

SCREW

Screw-R-H-SL: #6 X .50 NC GR5

6шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Nut-Insert: #6

6шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Bracket-Tachometer Box

1шт.

14

232-1446

NUT,3/8"-16, GC

Bolt-Hex: .38 X 1.25 NC GR5 ZP

1шт.

14

1011602

BOLT

Bolt-Hex: .38 X 1.50 NC GR5 ZP

1шт.

15

232-1446

NUT,3/8"-16, GC

Nut-Nylock: .38 NC GR6 ZP

2шт.

16

1032461

BOX

Grommet-Tachometer Box

1шт.

17

306433A1

BULB

Light Bulb - Tach Box

1шт.

18

1022588

VALVE

Regulator: Lomb

1шт.

19

1021155

SWITCH

Solenoid Switch (Bosch)

1шт.
