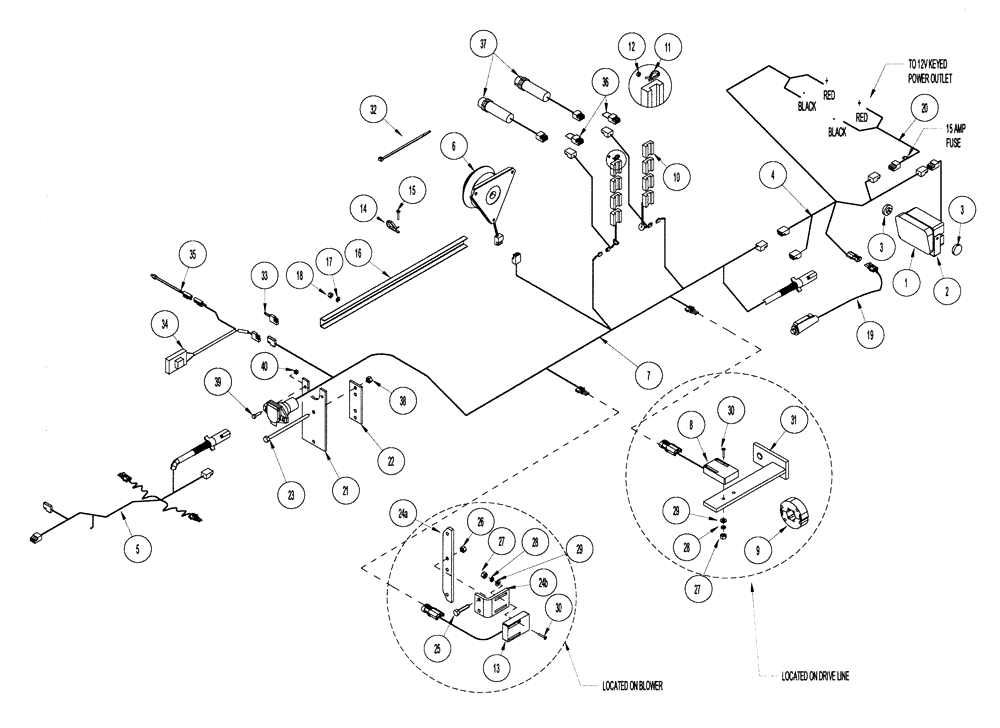

Запчасти Case IH 1124 (E35) - M200 ELECTRICAL SYSTEM TOW BETWEEN

1

290190A1

CONTROL

Monitor Box (M200)

1шт.

2

290362A1

BRACKET

Bracket-Monitor Box

1шт.

3

290363A1

KNOB

Knob

2шт.

4

290291A2

HARNESS

Harness-Tractor (See Pages E52 & E53 For Schematic)

1шт.

5

290292A2

HARNESS

Harness-Tillage (See Pages E50 & E51 For Schematic)

1шт.

6

1021090

CLUTCH DISC

CLUTCH DISK Clutch - Elect. Warner 5210-25

1шт.

7

290360A3

HARNESS

Harness-AS2400 (See Pages E54 & E55 For Schematic)

1шт.

8

290353A1

SENSOR

Sensor Smart Shaft

1шт.

9

290356A1

RING

Sensor Magnetic Ring

1шт.

10

290294A1

SENSOR

Sensor Bin 4 Level

2шт.

11

290547A1

HOSE CLAMP

Clamp-Hose

16шт.

12

290077A1

LOCK NUT

Nut K Lock: #8-32, SS

32шт.

13

290355A1

SENSOR

Sensor Smart Blower

1шт.

14

1016352

CLAMP

Clamp-Harness: .75 X .38

10шт.

15

1011974

RIVET

Rivet-Pop: .19 X .531

10шт.

16

1022820

PROTECTOR

Channel-Protector

1шт.

16

1016247

CHANNEL

Channel-Protector

1шт.

16

1027352

CHANNEL

Channel-Protector

1шт.

17

1011583

WASHER

Washer-Flat: .31, ZP

8шт.

18

231-1455

Nut-Nylock: .31, NC, GR5, ZP

8шт.

19

233788A1

HARNESS

Switch Remote

1шт.

20

290394A2

HARNESS

Harness-Tractor Power (See Page E49 For Schematic)

1шт.

21

1032399

BAR

Bar-Plug Bracket

1шт.

22

1026123

BAR

Bar-Bolting

1шт.

23

413-6112

BOLT,Hex, 3/8" - 16 x 7", Gr 5

Bolt-Hex: .38 X 7.00 NC GR5 ZP

2шт.

24

290295A1

BRACKET, SUPPORTING

Bracket /A Fan Speed

1шт.

24a

290392A1

BAR

Bracket - Fan Speed

1шт.

24b

290387A1

BRACKET

Bracket - Fan Speed

1шт.

26

231-1444

NUT,1/4"-20, GB

2шт.

27

425-104

NUT,1/4"-20, Cl 5

4шт.

28

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

Washer-Flat SAE: .25, ZP

2шт.

29

492-11025

LOCK WASHER,1/4"

8шт.

30

290386A1

SCREW

Screw: #8-32 X 1.00, SS

8шт.

31

290354A1

BRACKET

Bracket /W Shaft Sensor

2шт.

32

1013122

CABLE TIE

CABLE STRAP Tie - 15.50 Waytek #21046

11шт.

33

1032049

PLUG

Harness-Plug

1шт.

34

1030497

SENSOR

Harness-Module

1шт.

35

1024930

SENDER UNIT

SENDER Sending Unit

1шт.

36

1032919

PLUG

Harness Jumper

2шт.

37

1032920

SENSOR

Sensor-Capacitive (Option)

1шт.

38

232-1446

NUT,3/8"-16, GC

Nut-Nylock: .38, NC GR6 ZP

2шт.

39

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

40

231-1444

NUT,1/4"-20, GB

2шт.

25

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
