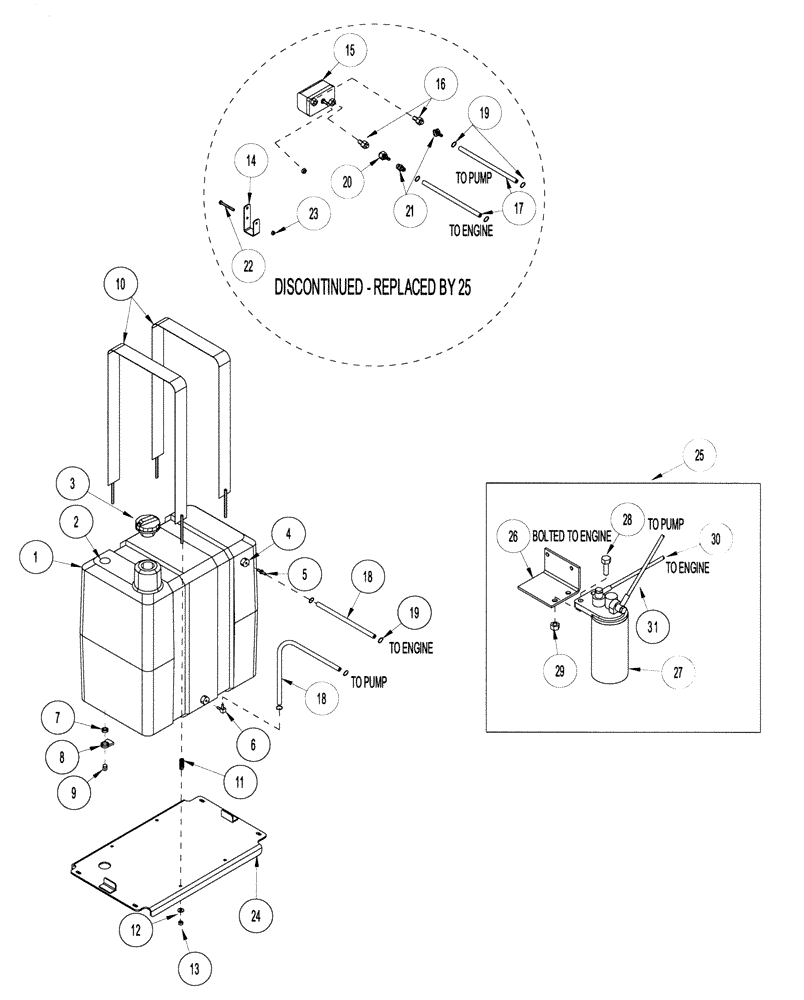

Запчасти Case IH 1124 (E05) - FUEL TANK

1

1030338

FUEL TANK

Assy-Fuel Tank: 23.5 Gallon

1шт.

1

1030036

FUEL TANK

Fuel-Tank: 23.5 Gallon

1шт.

2

1030343

GAUGE

Kelch Remote Gauge: (27592)

1шт.

3

1030349

FILLER CAP

Cap-Stant: 1.500 (27588)

1шт.

4

1030348

BUSHING

Bushing: (27545)

2шт.

5

1030346

FITTING

Barb-Hose Straight: .19 (27538)

1шт.

6

1030347

FITTING

Barb-Hose 90° Elbow: .19 (27552)

1шт.

7

1030350

GROMMET

Grommet: (27593)

1шт.

8

1030344

CLAMP

Clamp: (27362)

1шт.

9

1030345

PLUG

Plug-Cap: (27484)

1шт.

10

1030406

CLAMP

Wldmt-Clamp Band

2шт.

11

1030411

SPRING

Spring

4шт.

12

1011582

WASHER

Washer-Flat: SAE .31 ZP

4шт.

13

231-1445

NUT,5/16"-18, GB

Nylock

4шт.

14

1030547

ANCHOR

Mount-Fuel Filter (Discontinued 3/98 Replaced by 311932A1)

1шт.

15

1013157

FILTER, FUEL

Filter-Fuel: AC# TP-888 (Discontinued 3/98 Replaced by 311932A1)

1шт.

16

1013158

FITTING

Ftg-Swivel AQ#4797-5-4B (Discontinued 3/98 Replaced by 311932A1)

1шт.

17

1016178

FUEL HOSE,0.25" ID x 24.00"

(Discontinued 3/98) Replaced by 1021318

2шт.

17

1021318

FUEL HOSE,0.25" ID

Bulk Neoprene, Gas

1шт.

18

1016179

FUEL HOSE,0.25" ID x 33.00"

2шт.

19

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

6шт.

20

1013159

FITTING

Ftg-Adapter: AQ#200001-6-5B (Discontinued 3/98 Replaced by 311932A1)

1шт.

21

1013160

FITTING

Ftg-Adapter: AQ#4740-4B (Discontinued 3/98 Replaced by 311932A1)

1шт.

22

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

23

231-1444

NUT,1/4"-20, GB

1шт.

24

1030545

MOUNTING PARTS

Wldmt-Fuel Tank Mount

1шт.

25

311932A1

KIT

Upgrade To New Fuel Filter Kit (3/98)

1шт.

26

306697A1

BRACKET

Bracket - Fuel Filter

1шт.

27

312673A1

FILTER

Filter-Fuel

1шт.

28

1011601

BOLT

Bolt-Hex: .38 X 1.25 NC GR5 ZP

2шт.

29

232-1446

NUT,3/8"-16, GC

Nut-Nylock: .38 NC GR6 ZP

2шт.

30

312675A1

HOSE

Hose/A From Fuel Filter To Engine (Order A21561 Bulk)

1шт.

30

A21561

HOSE,0.25" ID x 25.00"

Bulk

1шт.

31

3126674A1

HOSE

Hose/A From Pump To Fuel Filter (Order A21561 Bulk)

1шт.

31

A21561

HOSE,0.25" ID x 25.00"

Bulk

1шт.

32

311937A1

INSTRUCTION

Schem-Kit Installation (Not Shown)

1шт.
