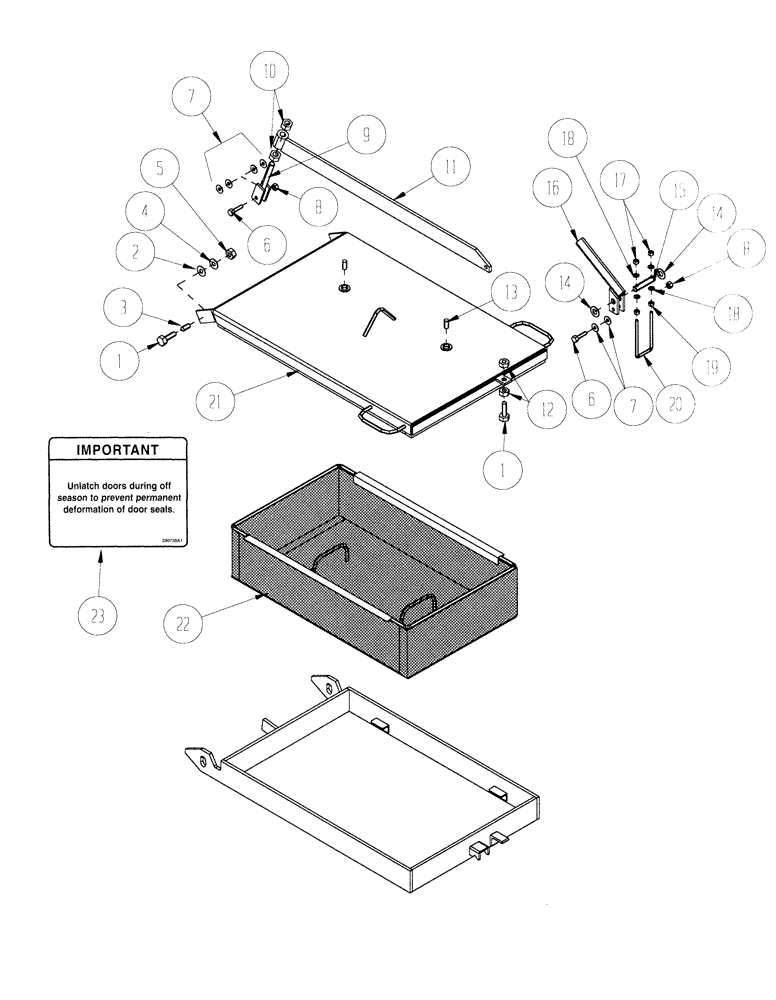

Запчасти Case IH 1124 (E33) - COVER, CLAMP & GRILL

1

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

2

495-11081

WASHER,3/4", SAE

8шт.

3

1026444

SPACER

Spacer

4шт.

4

1011584

WASHER

Washer-Flat: SAE .50 ZP

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

4шт.

6

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

7

95-11041

WASHER,3/8"

SAE .38 ZP

16шт.

8

231-4248

NUT,1/2"-13, GB

Nut-Centerlock: .38 NC GR2 ZP

4шт.

9

1026464

ROD

Wldmt-Adj Rod

2шт.

10

425-1410

JAM NUT,Jam, 5/8"-11, G5

Nut-Jam: .63 NC GR2 ZP

4шт.

11

1026458

TUBE,833 mm Length

Wldmt-Adjustment Tube

2шт.

12

425-148

JAM NUT,Jam, 1/2"-13, G5

8шт.

13

1013114

PLUG

Plug-Pipe

4шт.

14

1011813

LOCK WASHER

Washer-Lock: .63 ZP

4шт.

15

1026465

PIN

Pin

2шт.

16

1026461

CLAMP

Wldmt-Clamp

2шт.

17

231-1445

NUT,5/16"-18, GB

Nylock

4шт.

18

1011582

WASHER

Washer-Flat: SAE .31 ZP

8шт.

19

425-105

NUT,5/16"-18, G5

4шт.

20

1026466

BOLT

Bolt-U: .31 X 2.00 X 5.00 ZP

2шт.

21

1026702

COVER

Cover & Gasket

2шт.

21

1026455

COVER

Wldmt-Cover

2шт.

21

1015907

GASKET

Gasket-Door: Top

4шт.

21

1015906

GASKET

Gasket-Door: Top

4шт.

22

1026562

GRILLE

Wldmt-Grill

2шт.

22

1027575

GRIP

Grip-Handle

2шт.

22

1032056

WASHER

Washer-Machined .75 ZP

24шт.

23

290739A1

DECAL

Decal - Top Door Close

2шт.
