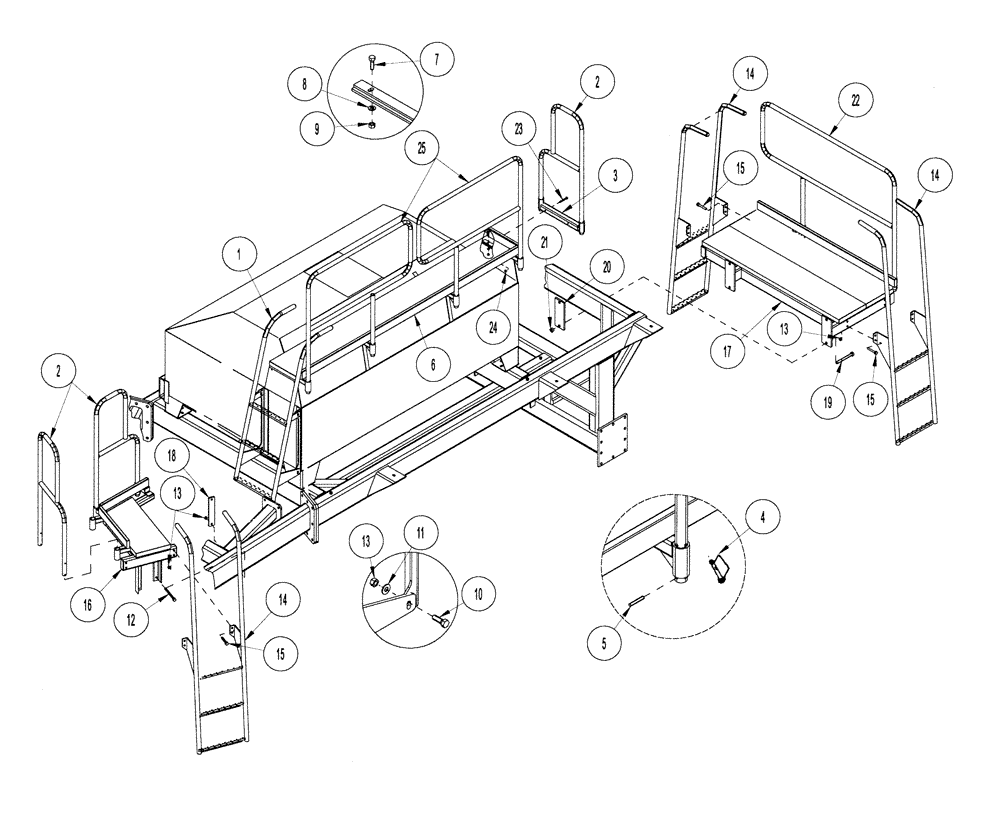

Запчасти Case IH 1124 (E31) - LADDERS, PLATFORMS AND RAILS

1

1032202

RAIL

Wldmt-Ladder RH

1шт.

2

1032176

RAIL

Wldmt-Front Handrail

3шт.

3

1032139

SUPPORT

Wldmt-Rail Support

1шт.

4

1013225

PIN

Pin-Wirelock: .31 X 2.75 NP

12шт.

5

1011726

ROLL PIN

Pin-Roll: .25 X 2.00 NP

12шт.

6

1032170

WALKWAY

CATWALK Wldmt-Catwalk

1шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

8

492-11038

LOCK WASHER,3/8"

8шт.

9

425-106

NUT,3/8"-16, Cl 5

8шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

11

1011584

WASHER

Washer-Flat: SAE .50 ZP

4шт.

12

1020074

BOLT

Bolt-Hex: .50 X 6.50 NC GR5 ZP

4шт.

13

231-1448

NUT,1/2"-13, GB

Nut-Nylock: .50 NC GR6 ZP

20шт.

14

1027473

LADDER

Wldmt-Ladder LH

3шт.

15

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Bolt-Hex: .50 X 3.25 NC GR5 ZP

12шт.

16

290460A1

PLATFORM

Platform/W

1шт.

17

290113A1

PLATFORM ASSY.

Platform/W

1шт.

18

290470A1

BAR

Bar Bolting

2шт.

19

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

Bolt-Hex: .75 X 6.50 NC GR5 ZP

4шт.

20

1027517

LARGE PLATE

PLATE, LARGE Plate-Bolting

2шт.

21

232-14412

NUT,3/4"-10, GB

Nut-Nylock: .75 NC GR6 ZP

4шт.

22

1032196

RAIL ASSY.

Wldmt-Side Handrail

1шт.

23

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

24

232-1446

NUT,3/8"-16, GC

2шт.

25

1032173

RAIL

Wldmt-Side Handrail

2шт.
