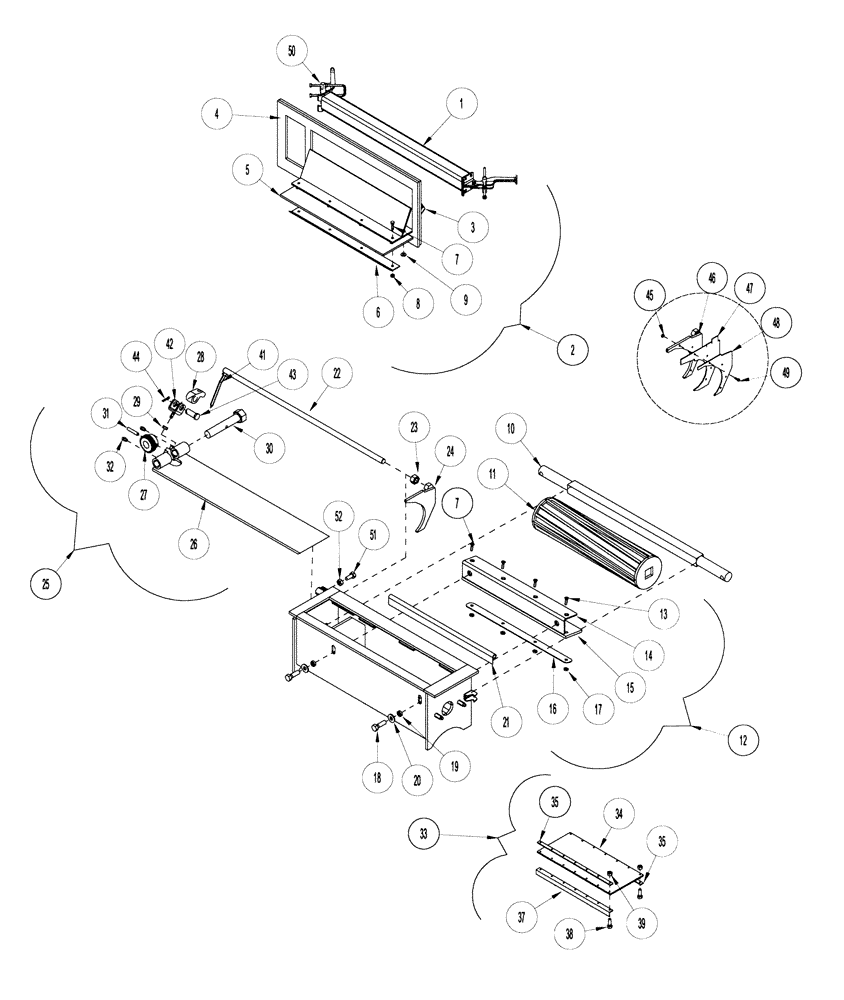

Запчасти Case IH 1124 (E27) - PRODUCT METER REAR

1

1016213

TOGGLE

Wldmt-Toggle

1шт.

2

1016218

COVER ASSY

Assy-Cover & Wiper: Rear

1шт.

3

1016215

COVER

Wldmt-Cover Rear

1шт.

4

1018874

GASKET

Gasket-Door: Side

1шт.

5

1030985

SEAL

RUBBER SEAL Wiper-Rubber

1шт.

6

1030984

WIPER

Wiper-Support

1шт.

7

1032058

SCREW

Screw-F-H-S-C: .19 X .50 NC SS

1шт.

7

1032095

SCREW

Screw-F-H-S-C: .19 X .625 NC SS

4шт.

8

1032059

LOCK NUT

Nut-K-Lock: 18-8 SS .19 NC

4шт.

9

1032060

WASHER,0.2" ID x 0.44" OD x 0.04" Thk

Washer-Flat: .19 SS

4шт.

10

1013920

SHAFT

Shaft-Roll Drive

1шт.

11

Metering Roll (Reference See Metering Rolls Parts Page)

1шт.

12

1013310

DEFLECTOR

Assy-Seed Deflector: Rear

1шт.

13

1032095

SCREW

Screw-F-H-S-C: .19 X .625 NC SS

4шт.

14

1012955

DEFLECTOR

Wldmt-Plate Deflector

1шт.

15

1013128

DEFLECTOR

Deflector-Rubber

1шт.

16

1013127

STRIP

Strip-Hold

1шт.

17

1032059

LOCK NUT

Nut-K-Lock: 18-8 SS .19 NC

4шт.

18

1033271

BOLT

Bolt-Hex: .38 X 1.00 NC SS

2шт.

19

1033267

WASHER, LOCK

Washer-Lock: .38 SS

2шт.

20

1033266

WASHER

Washer-Flat: .38 SS

2шт.

21

1027931

SEAL

Seal-Extruded "P"

1шт.

22

1032029

CONTACT

Assy-Flow Control Rod

1шт.

23

1032190

JAM NUT

Nut-Jam: .50 NC SS

1шт.

24

1032088

LARGE PLATE

PLATE, LARGE Assy-Flow Control Plate

1шт.

25

1032031

DOOR ASSY.

Assy-Metering Door Rear

1шт.

26

1030047

DOOR

Wldmt-Rear Door

1шт.

27

1013346

PINION

Pinion-Rework

1шт.

28

1030001

LATCH ASSY.

Lock-Pointer

1шт.

29

425-144

JAM NUT,Jam, 1/4"-20, G5

1шт.

30

1013092

BOLT

Bolt-Special

1шт.

31

1021512

PIN

Pin-Roll: .25 X 1.38 ZP

1шт.

32

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

2шт.

33

1013283

DOOR ASSY.

Assy-Door: Cleanout

1шт.

34

1013176

COVER

Cover-Rubber: Cleanout Door

1шт.

35

1013177

SUPPORT

Support-Narrow

2шт.

37

1013284

ANGLE

Wldmt-Angle Latch

1шт.

38

1033270

BOLT

Bolt-Hex: .25 X .75 NC SS

16шт.

39

1033269

LOCK NUT

Nut-Nylock: .25 NC SS

16шт.

41

1030865

POINT

Bar-Pointer

1шт.

42

1030866

ANCHOR

Wldmt-Flipper Mount

1шт.

43

1030867

CLEVIS PIN

Pin-Clevis: .50 X 1.25 ZP

1шт.

44

432-816

COTTER PIN,1/8" x 1"

1шт.

45

1032094

LOCK NUT

Nut-K-Lock: #6 NC SS

4шт.

46

1032086

PLATE

Wldmt-Flow Control Plate

1шт.

47

1027932

LARGE PLATE

PLATE, LARGE Plate-Flow Control

1шт.

48

1027884

SEAL

Seal-Rubber Outer

1шт.

49

1032093

SCREW

Screw-P-H: #6 X .50 NC SS

4шт.

50

1029248

U-BOLT

U-Bolt - Toggle

2шт.

51

1015173

BOLT

Bolt-Hex: .31 X .75, NC SS

1шт.

52

1023719

NUT

Nut-Jam: .31, NC, SS

1шт.
