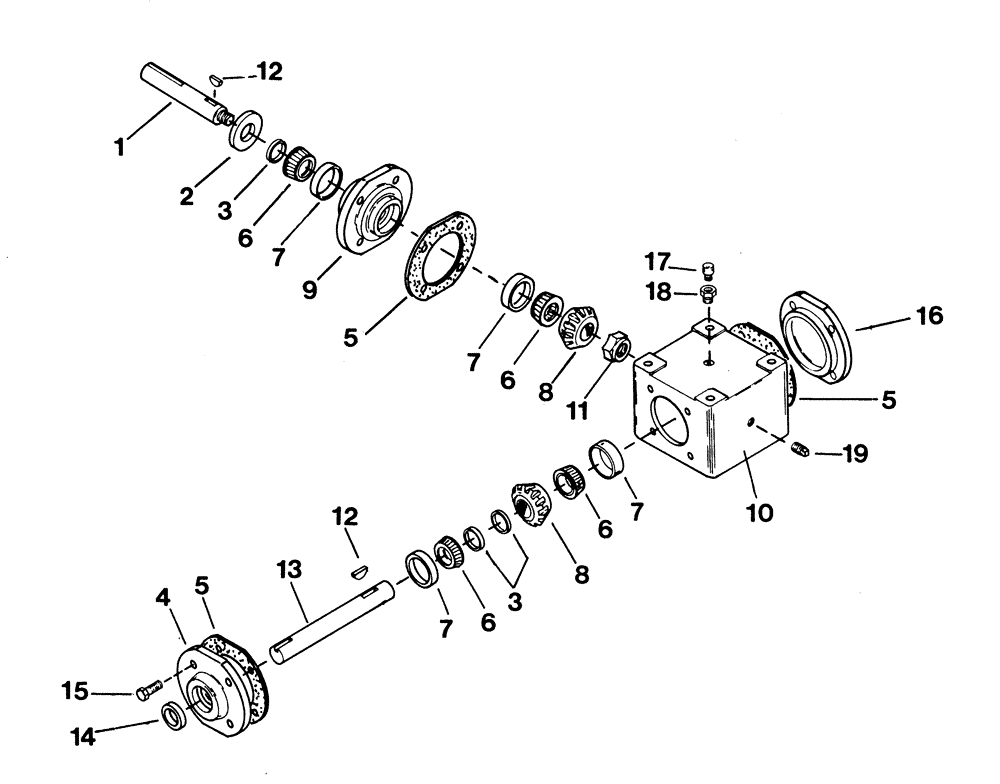

Запчасти Case IH 1124 (E23) - 0101908 GEARBOX PARTS

1

0100936

SHAFT

Shaft, Pinion

1шт.

2

0100939

SEAL

Seal, Pinion Shaft

1шт.

3

0100941

RING

Ring, Retaining

3шт.

4

0100932

CAP

Cap, Open End

2шт.

5

0100943

GASKET

Gasket

3шт.

6

0100938

CONE

Cone, Bearing

3шт.

7

0100937

CUP

Cup, Bearing

3шт.

8

0100934

GEAR

Gear, Straight Bevel

2шт.

9

0100933

HOUSING

Housing, Pinion

1шт.

10

0100931

HOUSING

Housing, Gearbox

1шт.

13

0100935

SHAFT

Shaft, Cross

1шт.

14

0100940

SEAL

Seal, Cross Shaft

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

16

0100944

CAP

Cap, Closed End

1шт.

17

0100928

PLUG

Plug, Pressure Relief

1шт.

19

NLS

NO LONGER SERVICED

Plug, Pipe

1шт.
