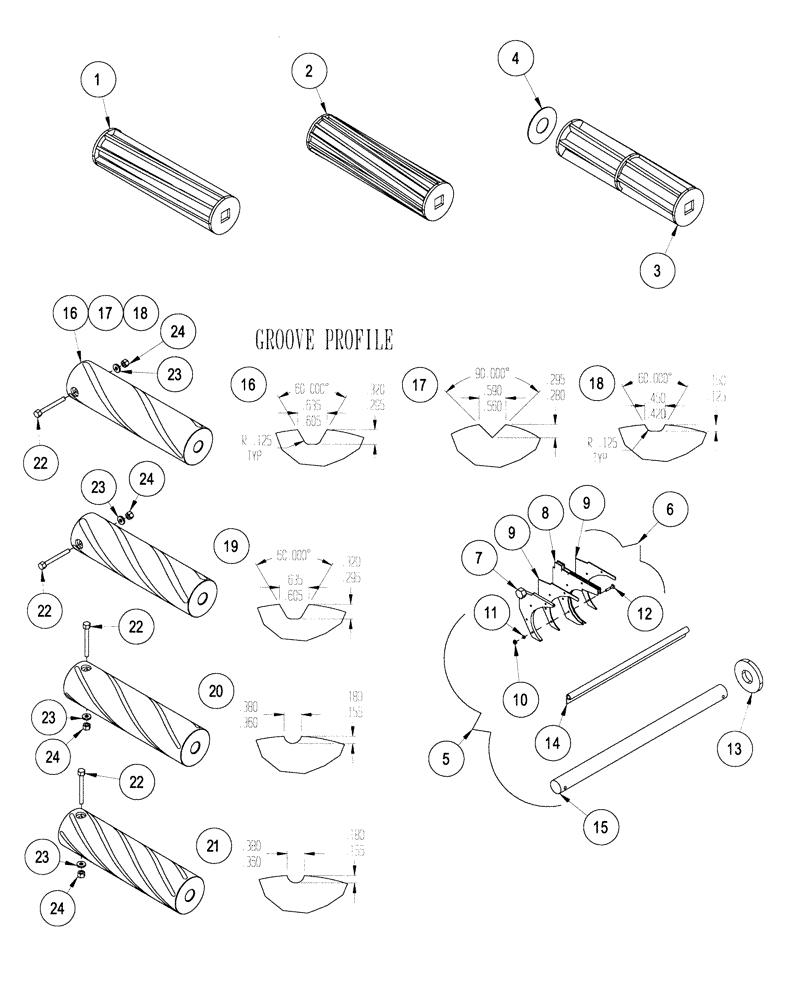

Запчасти Case IH 1124 (E21) - METERING ROLL ASSEMBLIES

1

1012608

ROLL

Metering Roll, Standard, 12-1/4" X 1/4" Bars

1шт.

2

1013856

ROLL

Metering Roll, High Capacity, 8-1/4" X 1/2" Bars

1шт.

3

1021264

ROLL

Metering Roll, Super High Capacity, 6-1/4" X 3/4" Bars

1шт.

4

306969A1

SHIM

Shim .063 X 3.5 (Kit #2906662A1 Qty 3)

1шт.

4

2906662A1

KIT

Kit - Shim .063 X 3.5 Oty 3

1шт.

5

1030624

FORK

Kit - Seal (Incl. 6, 13, 14), Canola

1шт.

6

1027945

PLATE

Plate And Seal Assembly, Fine Seed, (Includes Items 7-12)

1шт.

7

1032086

PLATE

Flow Control Plate

1шт.

8

1027884

SEAL

Seal, Rubber, Outer

2шт.

9

1027887

RUBBER SEAL

Seal, Rubber, Inner

1шт.

10

1027932

LARGE PLATE

PLATE, LARGE Plate

1шт.

11

1032094

LOCK NUT

Nut, K-Lock, SS, #6

4шт.

12

1032479

SCREW

Screw, #6-32 X 1"

4шт.

13

1015623

DISC

Disc, Thrust (ID 1 5/8") Replaced By 306400A1

1шт.

13

306400A1

THRUST WASHER

Washer - Thrust (ID 1 1/16)

1шт.

14

1027931

SEAL

Seal, Extruded "P"

1шт.

15

1027957

SHAFT

Shaft Discontinued Order 1032186

1шт.

15

1032186

SHAFT

Shaft-Meter Drive

1шт.

16

1029252

METER

Specialty Crop Meter Shallow 3 Groove

1шт.

PL2523

KIT

Kit #1 Shallow 3-Groove, Inc. Ref. 15 & 16, Order Wholegoods

1шт.

239561A Shallow 3-Groove Roller for 20-37 ft. Air Till Drills for Oil Type Sunflowers

1шт.

17

1029250

METER

Specialty Crop Meter Medium 3 Groove

1шт.

PL2521

KIT

Kit #2 Medium 3-Groove, Inc. Ref. 15 & 17, Order Wholegoods

1шт.

239562A Medium 3-Groove Roller for 20-60 ft. Air Till Drills for Small Size Corn, Oil Type Sunflowers

1шт.

18

1029251

METER

Specialty Crop Meter Deep 3 Groove

1шт.

PL2522

KIT

Kit #3 Deep 3-Groove, Inc. Ref. 15 & 18, Order Wholegoods

1шт.

239565A Deep 3-Groove Roller for 20-60 ft. Ail Till Drills for Corn, Millet, or Confection Sunflowers

1шт.

19

1030532

METER

Specialty Crop Meter Deep 4 Groove

1шт.

PL2854

KIT

Kit #4 Deep 4-Groove, Inc. Ref. 15 & 19, Order Wholegoods

1шт.

239566A Deep 4-Groove Roller for 40-60 ft. Air Till Drills for Corn, Millet, and Confection Sunflowers

1шт.

20

1030533

METER

Specialty Crop Meter Canola 4 Groove

1шт.

PL2852

PACKAGE

Kit #5 Canola 4-Groove, Inc. Ref. 5, 15, & 20, Order Wholegoods

1шт.

Canola 4-Groove Roller for 20-37 ft. Ail Till Drills for Canola and Milo

1шт.

21

1030534

METER

Specialty Crop Meter Canola 6 Groove

1шт.

PL2853

KIT

Kit #6 Canola 6-Groove, Inc. Ref. 5, 15 & 21 Order Wholegoods

1шт.

Canola 6-Groove Roller for 40-60 ft. Air Till Drills for Canola and Milo

1шт.

22

1032188

BOLT

Bolt-Hex: .31 X 3 NC SS

1шт.

23

1032189

WASHER

Washer-Flat: .34 ID X .75 OD SS

1шт.

24

1032187

NUT

Nut-Tee: .31 X .38 NC SS

1шт.

PL2804

KIT

Kit, Specialty Crop, Low Rate, Inc. Ref. 5, 15, 16, 17, 18, 20, Order Wholegoods

1шт.

1 Shallow 3-Groove, 1 Medium 3-Groove, 1 Deep 3-Groove, and 1 Canola 4-Groove Roller

1шт.

PL2805

KIT

Kit, Specialty Crop, High Rate, Inc. Ref. 5, 15, 17, 18, 19, 21, Order Wholegoods

1шт.

1 Medium 3-Groove, 1 Deep 3-Groove, 1 Deep 4-Groove, and 1 Canola 6-Groove Roller

1шт.
