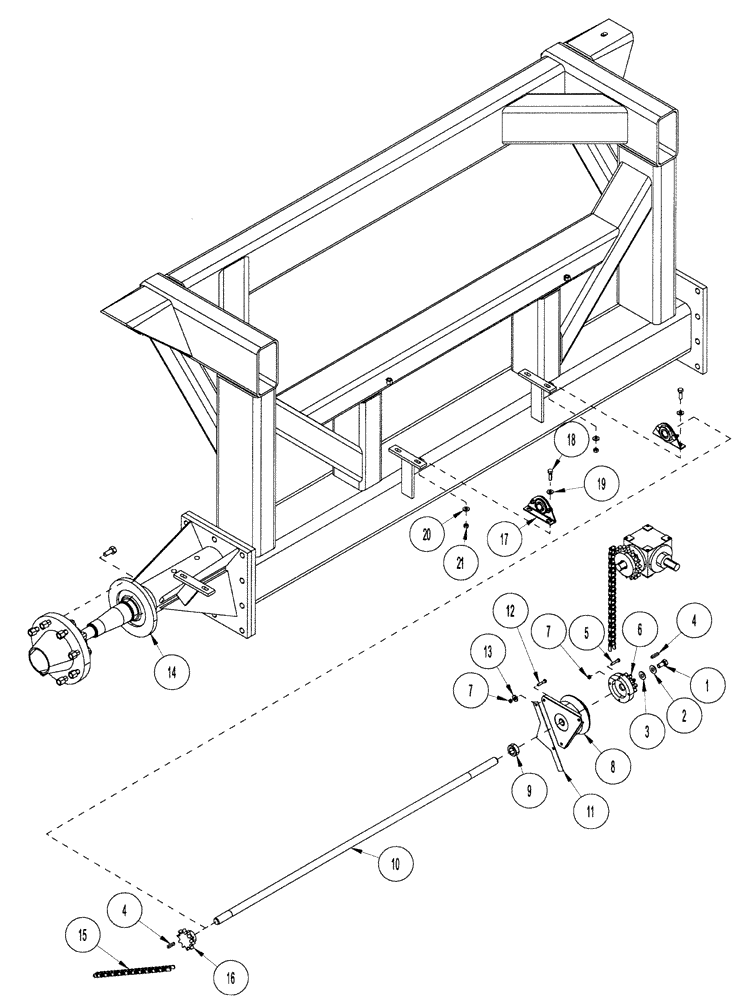

Запчасти Case IH 1124 (E19) - ASSY-CLUTCH

1

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

2

1014443

WASHER

Washer-Flat: .50 ZP

1шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

4

1012975

KEY

Key: .250 X .250 X 1.250

1шт.

6

1021091

ADAPTER

Assy-Adapter

1шт.

7

425-104

NUT,1/4"-20, Cl 5

5шт.

8

1021090

CLUTCH DISC

CLUTCH DISK Clutch-Elect.: Warner 5210-25

1шт.

9

1013418

COLLAR

Collar-Set: 1.00

1шт.

10

1021234

SHAFT

Shaft-Drive

1шт.

11

1027378

STOP

Wldmt-Clutch Stop

1шт.

12

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

13

1011583

WASHER

Washer-Flat: .31 ZP

1шт.

14

1022874

SPROCKET ASSY.

Sprocket-60BS16 X 1.00 Martin

1шт.

15

1022844

CHAIN (AG)

Chain-Roller: 33 Links #60

1шт.

15

1022965

LINK, CONNECTING

Link-Connector: #60 .750 Ptch

1шт.

15

1018683

LINK

Link-Offset: #60 OL

1шт.

16

1012976

DRIVE SPROCKET

Sprocket-60BS10 X 1.00 Martin

1шт.

17

1018571

BEARING ASSY

Assy-Pillow Block Bearing

2шт.

18

1033271

BOLT

Bolt-Hex: .38 X 1.00 NC SS

4шт.

19

1033266

WASHER

Washer-Flat: .38 SS

4шт.

20

1033267

WASHER, LOCK

Washer-Lock: .38 SS

4шт.

21

1033268

NUT

Nut-Nylock: .38 NC SS

4шт.

5

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
