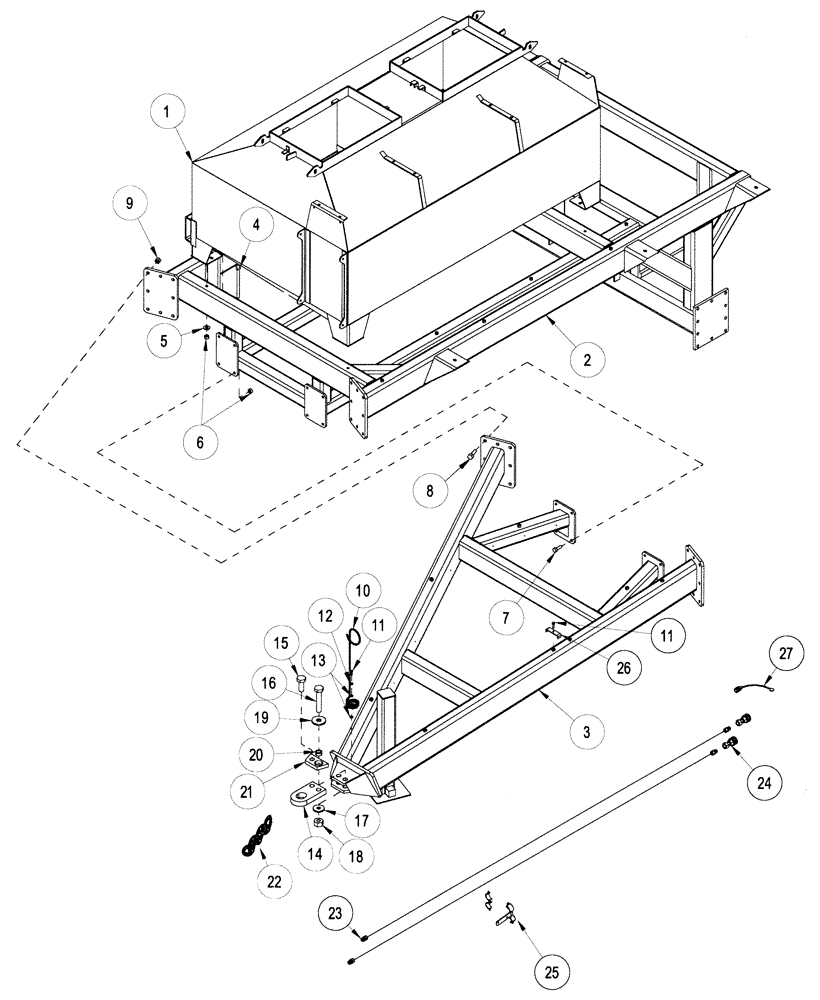

Запчасти Case IH 1124 (E03) - FRAME AND TANK MOUNTING

1

290475A1

AIR TANK

Tank/W Dual

1шт.

1

290474A1

AIR TANK

Tank/W Single

1шт.

2

290096A1

FRAME ASSY

Frame/W

1шт.

3

1027215

FRAME

Wldmt-Front Frame

1шт.

4

413-10152

BOLT,Hex, 5/8" - 11 x 9-1/2", Gr 5

Bolt-Hex: .63 X 9.50 NC GR5 ZP

4шт.

5

1013024

WASHER

Washer-Flat: .63 ZP

4шт.

6

231-14410

NUT,5/8"-11, GB

12шт.

7

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

8

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

16шт.

9

232-14412

NUT,3/4"-10, GB

Nut-Nylock: .75 NC GR6 ZP

16шт.

10

1026727

HOLDER

Hose-Holder: .5"23-200229-1

1шт.

11

213-616

EYE

Bolt-Hex: .38 X 1.00 NC GR5 ZP

21шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

1011828

WASHER

Washer-Flat: .38 ZP

2шт.

14

1026730

HITCH

Lug-Hitch

1шт.

15

426-2072

BOLT,Hex, 1-1/4" - 7 x 4-1/2", Gr 8

Bolt-Hex: 1.25 x 4.50 NC GR8 ZP

1шт.

16

1032406

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8

1шт.

17

1026732

LOCK WASHER

Washer-Lock: 1.25 ZP

2шт.

18

425-1020

NUT,1 1/4"-7, G5

Nut-Hex: 1.25 NC GR2 ZP

2шт.

19

1032404

WASHER

Washer-Heavy Duty

1шт.

20

1032403

SPACER

Tube-Spacer

1шт.

21

1032405

LARGE PLATE

PLATE, LARGE Plate-Spacer

1шт.

22

1032163

CHAIN (AG)

Chain-Safety 40.5K PC #8604794

1шт.

23

1027340

HOSE ASSY.

Hose .50 X 348-8NPTM Both

4шт.

24

1027789

COUPLING

Assy-QK Coup: Pioneer #4200-4

4шт.

25

1027790

ASSEMBLY

Assy-QC Clamp: Pioneer #5006-4

2шт.

26

1024284

CLAMP

Clamp-Hose Small

20шт.

27

1027792

LIGHT FAIRING

Plug-Dust: Pioneer #5205-4

4шт.

27

1027793

CAP

Cap-Dust: Pioneer #5209-4

4шт.
