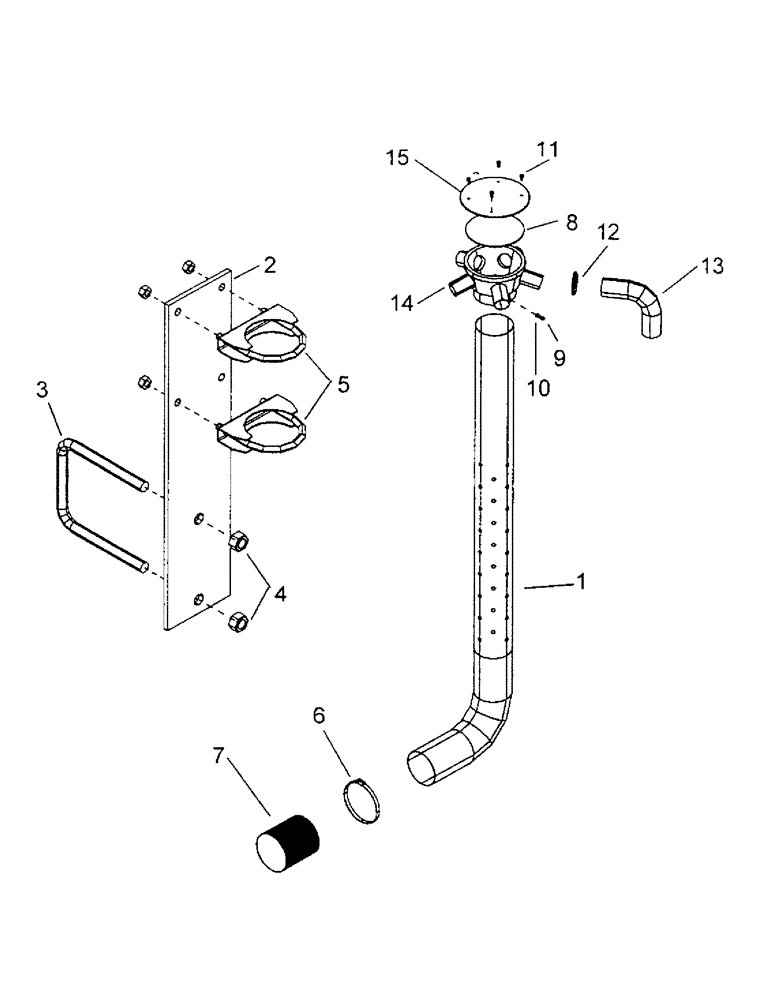

Запчасти Case IH 1100 (F06) - SECONDARY MANIFOLD TUBES & STANDS
№
Артикул
Название
Примечание
Количество
1
1026067
TUBE,63.5 mm Diameter, 590.55 mm Length
SECONDARY TUBE - dimpled
1шт.
2
1026249
LARGE PLATE
PLATE
1шт.
3
1023564
U-BOLT
1/2" x 4 17/32" x 5"
1шт.
3
1016523
BOLT
U-BOLT, 1/2" x 4 17/32" x 5"
1шт.
4
231-1448
NUT,1/2"-13, GB
nylock, 1/2"
2шт.
5
1013060
CLAMP
- muffler 2 1/2"
2шт.
6
1013236
CLAMP
- hose bundle
1шт.
7
1012984
HOSE,2.50" ID
- bulk: PVC-W 2.50" ID
1шт.
7
1032279
HOSE,2.50" ID
PVC-B 2.50" ID
1шт.
8
1022775
GASKET
CUSHION - manifold, 5 1/2"
1шт.
10
1013518
LOCK NUT
NUT, jam, 1/4"
2шт.
11
1018047
BOLT
BOLT, hex, 1/4" x 5/8"
1шт.
12
1013134
CLAMP
- hose, S.S. #28, 1.32-2"
1шт.
12
1012979
CLAMP
- hose, S.S. #20, .81-1.70"
1шт.
13
1029296
HOSE,25.70 mm ID BULK
- EVA-B 25.70 mm ID BULK
1шт.
13
1015887
HOSE,1.50" ID BULK
PVC 1.50" ID BULK
1шт.
13
1012985
HOSE,1.00" ID
- bulk: PVC-W 1.00" ID
1шт.
14
1018784
TUBE ASSY.
15 PORT MANIFOLD WITH COVER, 3/4 " PORTS
1шт.
14
1018783
MANIFOLD
15 PORT WITHOUT COVER, 3/4 " PORTS
1шт.
14
1026322
TUBE ASSY.
4 PORT MANIFOLD WITH COVER, 1 " PORTS
1шт.
14
1026321
TUBE ASSY.
4 PORT WITHOUT COVER, 1 " PORTS
1шт.
14
1026323
TUBE ASSY.
5 PORT MANIFOLD WITH COVER, 1 " PORTS
1шт.
14
1023746
TUBE ASSY.
5 PORT WITHOUT COVER, 1 " PORTS
1шт.
14
1017148
MANIFOLD
6 PORT MANIFOLD WITH COVER, 1 " PORTS
1шт.
14
1017916
TUBE ASSY.
6 PORT WITHOUT COVER, 1 " PORTS
1шт.
14
1015039
TUBE ASSY.
7 PORT MANIFOLD WITH COVER, 1 " PORTS
1шт.
14
1015042
TUBE ASSY.
7 PORT WITHOUT COVER, 1 " PORTS
1шт.
14
1014483
MANIFOLD VALVE
8 PORT MANIFOLD WITH COVER, 1 " PORTS
1шт.
14
1014485
TUBE ASSY.
8 PORT WITHOUT COVER, 1 " PORTS
1шт.
14
1013195
MANIFOLD
9 PORT MANIFOLD WITH COVER, 1 " PORTS
1шт.
14
1013199
TUBE ASSY.
9 PORT WITHOUT COVER, 1 " PORTS
1шт.
14
1012425
TUBE ASSY.
10 PORT MANIFOLD WITH COVER, 1 " PORTS
1шт.
14
1012426
TUBE ASSY.
10 PORT WITHOUT COVER
1шт.
14
1013196
TUBE ASSY.
11 PORT MANIFOLD WITH COVER, 1 " PORTS
1шт.
14
1013200
TUBE ASSY.
11 PORT WITHOUT COVER, 1 " PORTS
1шт.
14
1013197
MANIFOLD
12 PORT MANIFOLD WITH COVER, 1 " PORTS
1шт.
14
1013201
TUBE ASSY.
12 PORT WITHOUT COVER, 1 " PORTS
1шт.
14
1013198
COVER
13 PORT MANIFOLD WITH COVER, 1 " PORTS
1шт.
14
1013202
COVER
13 PORT WITHOUT COVER, 1 " PORTS
1шт.
14
1014523
COVER
14 PORT MANIFOLD WITH COVER, 1 " PORTS
1шт.
14
1015044
COVER
14 PORT WITHOUT COVER, 1 " PORTS
1шт.
14
1018774
COVER
15 PORT MANIFOLD WITH COVER, 1 " PORTS
1шт.
14
1018764
TUBE ASSY.
15 PORT WITHOUT COVER, 1 " PORTS
1шт.
14
1025570
TUBE ASSY.
2 PORT MANIFOLD WITH COVER, 1-1/2 " PORTS
1шт.
14
1026325
TUBE ASSY.
2 PORT WITHOUT COVER, 1-1/2 " PORTS
1шт.
14
1024529
TUBE ASSY.
3 PORT MANIFOLD WITH COVER, 1-1/2 " PORTS
1шт.
14
1024528
TUBE ASSY.
3 PORT WITHOUT COVER, 1-1/2 " PORTS
1шт.
14
1017775
TUBE ASSY.
4 PORT MANIFOLD WITH COVER, 1-1/2 " PORTS
1шт.
14
1017904
TUBE ASSY.
4 PORT WITHOUT COVER, 1-1/2 " PORTS
1шт.
14
1017776
TUBE ASSY.
5 PORT MANIFOLD WITH COVER, 1-1/2 " PORTS
1шт.
14
1017905
TUBE ASSY.
5 PORT WITHOUT COVER, 1-1/2 " PORTS
1шт.
14
1017777
TUBE ASSY.
6 PORT MANIFOLD WITH COVER, 1-1/2 " PORTS
1шт.
14
1017906
TUBE ASSY.
6 PORT WITHOUT COVER, 1-1/2 " PORTS
1шт.
14
1018765
TUBE ASSY.
7 PORT MANIFOLD WITH COVER, 1-1/2 " PORTS
1шт.
14
1018763
TUBE ASSY.
7 PORT WITHOUT COVER, 1-1/2 " PORTS
1шт.
14
1018766
TUBE ASSY.
8 PORT MANIFOLD WITH COVER, 1-1/2 " PORTS
1шт.
14
1018764
TUBE ASSY.
8 PORT WITHOUT COVER, 1-1/2 " PORTS
1шт.
14
1026327
TUBE ASSY.
10 PORT MANIFOLD WITH COVER, 1-1/2 " PORTS
1шт.
14
1026326
TUBE ASSY.
10 PORT WITHOUT COVER, 1-1/2 " PORTS
1шт.
14
1026328
TUBE ASSY.
14 PORT MANIFOLD WITH COVER, 1-1/2 " PORTS
1шт.
14
1024761
TUBE ASSY.
14 PORT WITHOUT COVER, 1-1/2 " PORTS
1шт.
15
1013193
COVER
(1"-4, 8, 12 & 15 port; 1 1/2"- 4 & 8 port)
1шт.
15
1014419
COVER
(1"-5, 6 & 14 port; 1 1/2"-6 port)
1шт.
15
1013192
COVER
(1"-7 & 11 port; 1 1/2"-2, 5, 7 & 14 port)
1шт.
15
1013191
COVER
(1" - 9 port)
1шт.
15
1013197
MANIFOLD
COVER (1" - 13 port)
1шт.
15
1013038
COVER
(1" - 10 port) (1 1/2" - 5 & 10 port)
1шт.
Выбрано товаров: 68
