(E58) - ELECTRIC SYSTEM, HYDRAULIC 100, DISCONTINUED

Запчасти Case IH 1100 (E58) - ELECTRIC SYSTEM, HYDRAULIC 100, DISCONTINUED

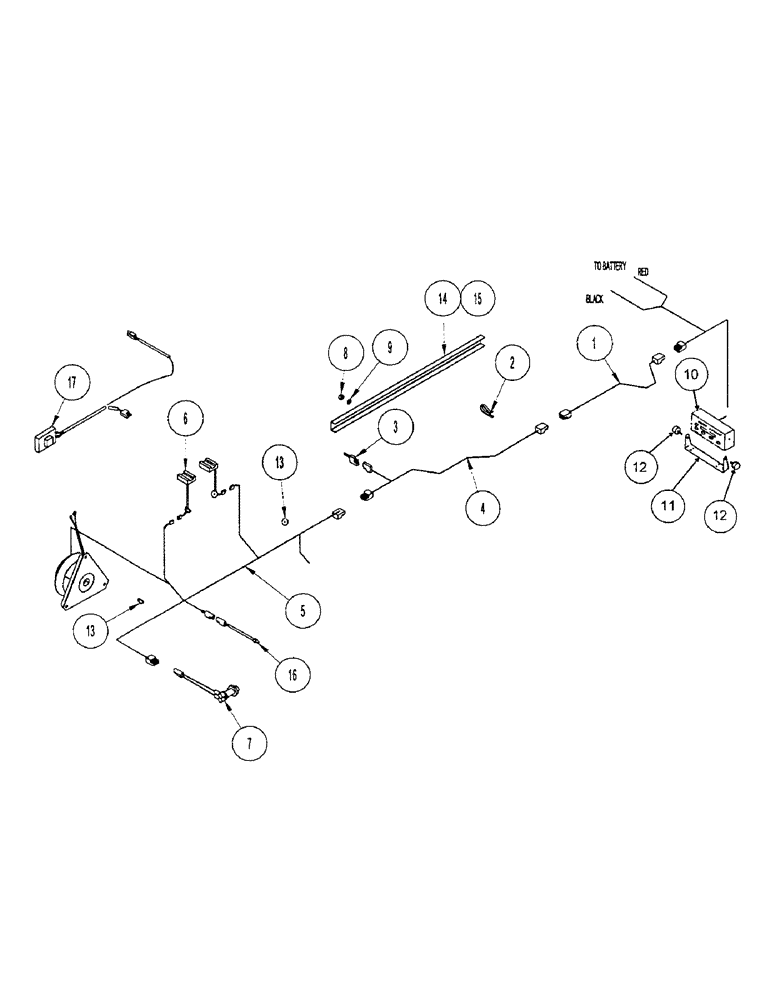

Схема запчастей Case IH 1100 - (E58) - ELECTRIC SYSTEM, HYDRAULIC 100, DISCONTINUED
5
15
7
10
14
9
12
2
13
8
6
11
16
12
13
17
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1024929

HARNESS

- wire: TR-100-5 tractor

1шт.

2

1016352

CLAMP

- harness: .75 x .38

6шт.

3

1032049

PLUG

- shunt

1шт.

4

1024928

HARNESS

- wire: TR-100-4 tillage

1шт.

5

1032061

HARNESS

- wire: 1100 air sys

1шт.

6

1027706

SENSOR

BIN LEVEL SENSOR

2шт.

7

1016300

SENSOR

MAGNETIC PICKUP

1шт.

8

231-1445

NUT,5/16"-18, GB

NUT - nylock: .31 NC GR6 ZP

3шт.

9

1011583

WASHER

- flat: .31 ZP

3шт.

10

1024891

CONTROL

MONITOR - box: Tri-Son model 100

1шт.

If the customer has a 1024891 M100 Monitor Box they will need a 1025705 remote switch if they have a 290190A1 M200 Monitor Box they will need a 233788A1 Remote Switch.

1шт.

11

1024940

BRACKET

MONITOR BOX MOUNT BRACKET

1шт.

12

1024941

KNOB

2шт.

13

1016235

GROMMET

2шт.

14

1022820

PROTECTOR

CHANNEL - protector

1шт.

16

1024930

SENDER UNIT

SENDING UNIT TR-100-7

1шт.

17

1030497

SENSOR

CLUTCH - remote: switch TPN 1030

1шт.
