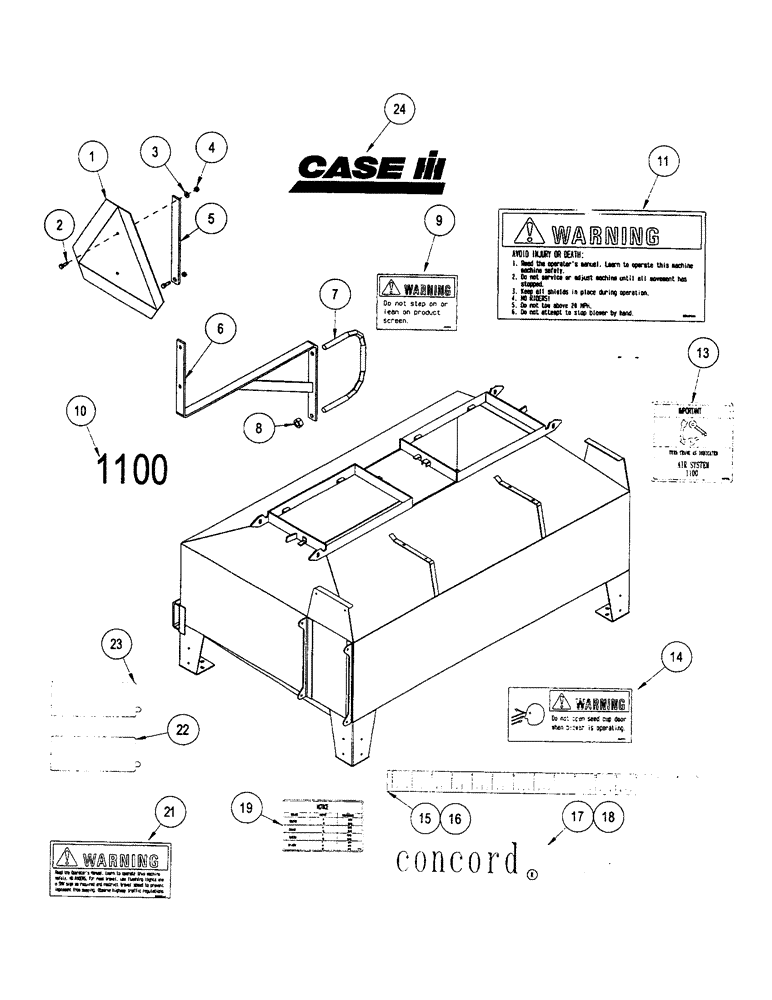

Запчасти Case IH 1100 (E52) - DECALS, 1100 RED

1

1015760

WARNING SIGN

ASSY - SMV sign (1 FPC)

1шт.

2

1011598

BOLT

- hex: .31 x 1.00 NC GR5 ZP

2шт.

3

1011582

WASHER

- flat: SAE .31 ZP

2шт.

4

1013376

LOCK NUT

NUT - centerlock: .31 NC GR2 ZP

2шт.

5

1030322

ANCHOR

MOUNT - SMV sign - diesel

1шт.

6

1032402

ANCHOR

WLDMT - SMV mount - hydraulic

1шт.

7

1030623

U-BOLT

BOLT-U .50X6.06X5.00 ID

1шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

234375A1

DECAL

- warning

2шт.

10

1032263

DECAL

- 1100 LH #234358A1

1шт.

10

1032264

DECAL

- 1100 RH #234359A1

1шт.

11

1013578

DECAL

- caution

1шт.

13

1027506

DECAL

- directional

1шт.

14

234377A1

DECAL

- door

2шт.

15

1013587

DECAL

- metering scale

1шт.

16

1015128

DECAL

- metering scale

1шт.

17

1032253

DECAL

- concord #234363A1

1шт.

19

1024745

DECAL

- tires

1шт.

21

220321A1

WARNING DECAL

DECAL - caution

1шт.

22

1032181

DECAL

- amber reflct. #1284365C2

5шт.

23

1032182

DECAL

- red reflector #1284374C1

2шт.

24

1032266

DECAL

- 85MM caseIH #192849A1

1шт.
