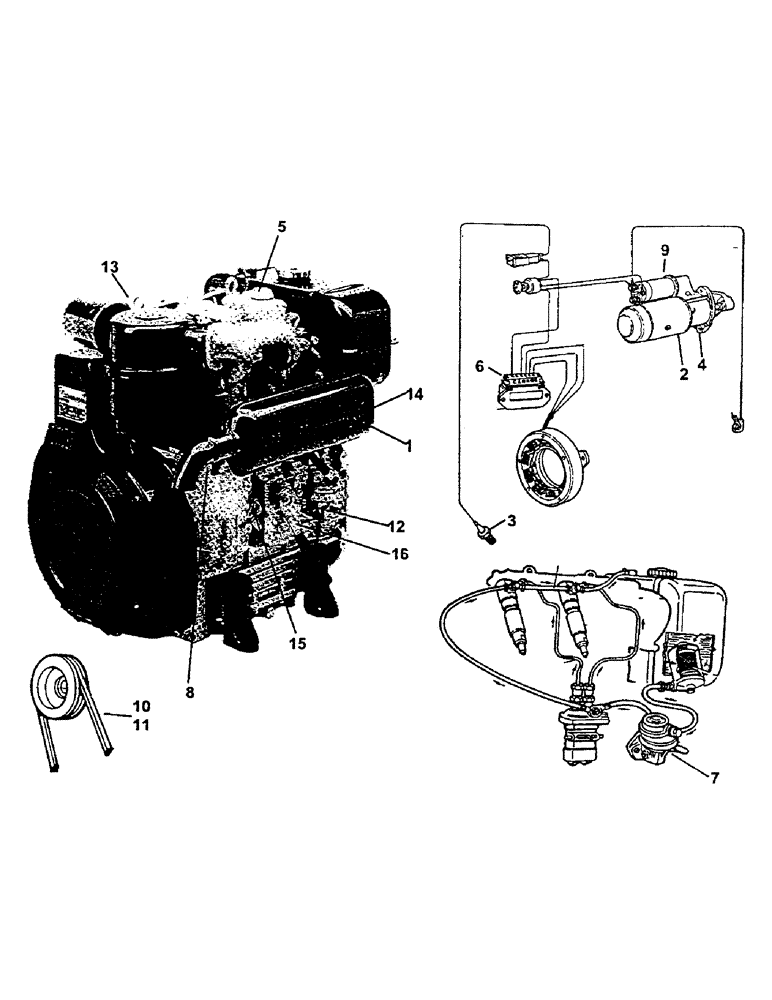

Запчасти Case IH 1100 (E48[1]) - LOMBARDINI ENGINE, D SUMP PARTS - NOT SHOWN

1

1020445

MUFFLER

MUFFLER

1шт.

2

1016373

STARTING MOTOR

STARTER - Lomb

1шт.

2

1016373R

REMAN-STARTER

1100

1шт.

2

1016373C

CORE-STARTER

Return number

1шт.

3

1021277

SENSOR

SENSOR - oil pressure

1шт.

4

1021278

STRUT

STARTER - drive

1шт.

5

1021702

CAP

CAP - oil

1шт.

6

1022588

VALVE

REGULATOR: Lomb

1шт.

7

1022589

PUMP

FUEL PUMP: Lomb

1шт.

8

1023247

ELBOW

ELBOW - muffler

1шт.

9

1021155

SWITCH

SOLENOID SWITCH (Bosch)

1шт.

10

1025006

BELT

BELT - Lomb

1шт.

11

1025003

BELT

BELT - Lomb

1шт.

12

1025766

KNOB

KNOB - lock

1шт.

13

1026699

TUBE

FUEL RETURN - Lomb

1шт.

14

1026893

SHIELD

SHIELD - muffler

1шт.

15

1027542

DIPSTICK

DIP STICK - Lomb

1шт.

16

1030773

LEVER

THROTTLE LEVER - Lomb

1шт.

1

1027571

GASKET

GASKET - Lomb. #560-4601-041

1шт.

2

1033388

SPACER

SPACER - oil sump extension

1шт.

3

1033389

DIPSTICK

DIPSTICK - modified

1шт.

4

1033391

PIN, ROLL

PIN - index roll

1шт.

5

290417AI

SCREW ALLEN LOMB #9730-040

1шт.

FOOTNOTE

1шт.

REF; 10 BELT 1025006 IS A 405 MM OR 15.99 IN. BELT USED ON 11LD 3 CYL LOMBARDINI ENGINE PER CONCORD ENGINEERING MV

1шт.

FOOTNOTE

1шт.

REF 11 BELT 1025003 IS A 401 MM OR 15.78 IN. BELT USED ON 11LD 3 CYL 28 HP LOMBARDINI ENGINE

1шт.

FOOTNOTE

1шт.

PER CONCORD ENGINEERING. MV

1шт.

FOOTNOTE

1шт.

REF 1 MUFFLER, GASKET IS P/N 306421a1 PER ALLAN J.

1шт.
