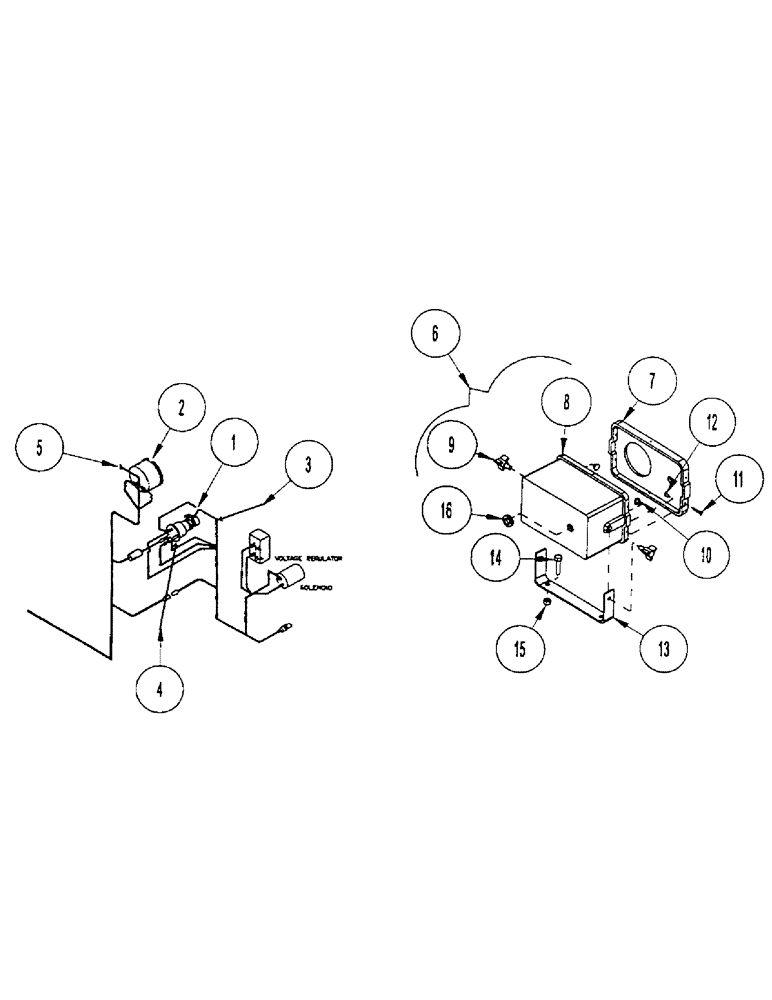

Запчасти Case IH 1100 (E46) - M200 ELEC SYSTEM, DIESEL ENGINE

1

1016194

IGNITION SWITCH

SWITCH COLE HERSEY 95-613

1шт.

2

1016068

METER

TACHOMETER DATCON 71767-26

1шт.

3

290359A2

HARNESS

- IGN, oil press, & Alt

1шт.

4

1016388

ELEC. TERMINAL PIN

CONNECTOR - SGLE F to dual M

1шт.

5

290169A1

ELECTRICAL WIRE

WIRE - ground: tach

1шт.

6

1032469

BOX

ASSY - box: tach case-IH

1шт.

6

1033352

DECAL

- logo: case-IH (Not shown)

1шт.

6

1033353

DECAL

- indicator: off-on-start (Not shown)

1шт.

7

1032460

COVER

- tachometer box

1шт.

8

1032459

CLUSTER, INSTR.

BOX - tachometer

1шт.

9

1032464

KNOB

- 3 arm: tachometer box

2шт.

10

1032462

NUT

- insert: .313

2шт.

11

1016334

SCREW

- R-H-SL: #6 x .50 NC GR5

6шт.

12

1032467

NUT

- insert: #6

6шт.

This nut insert is pressed in tachometer box and is NSS per fargo engineering.

1шт.

13

1032463

SUPPORT

BRACKET - tachometer box

1шт.

14

1011601

BOLT

BOLT - hex: .38 x 1.25 NC GR5 ZP

1шт.

14

1011602

BOLT

BOLT - hex: .38 X 1.50 NC GR5 ZP

1шт.

15

232-1446

NUT,3/8"-16, GC

NUT - nylock: .38 NC GR6 ZP

2шт.

16

1032461

BOX

GROMMET - tachometer box

1шт.
