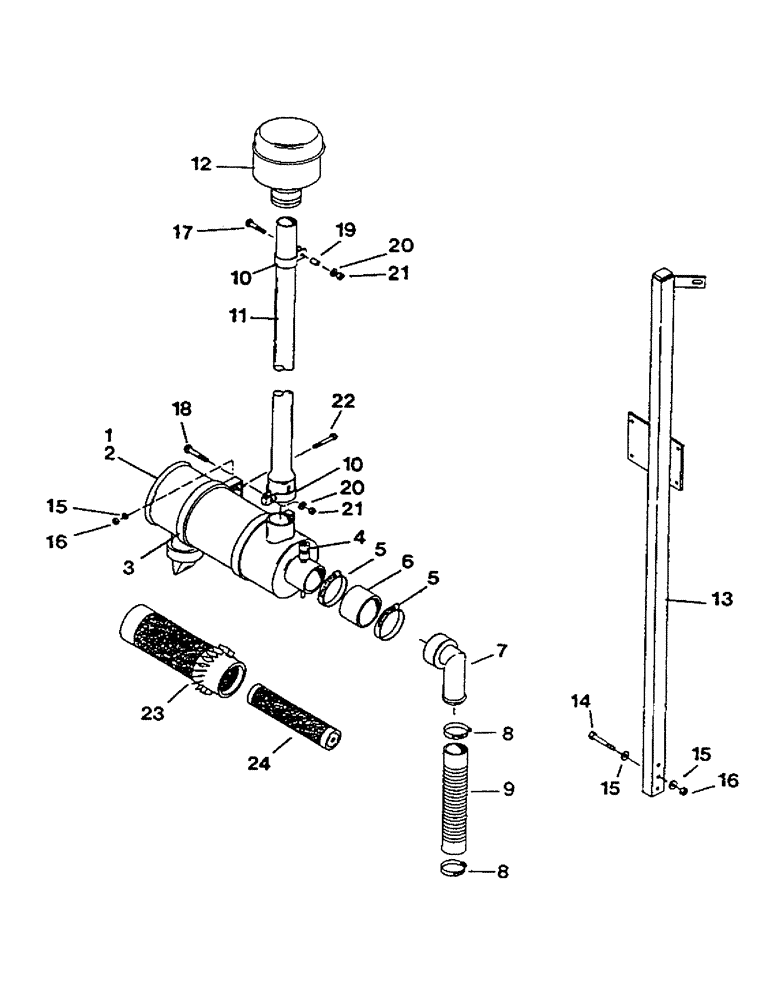

Запчасти Case IH 1100 (E40) - AIR CLEANER

1

1023303

AIR CLEANER

ASSY - air cleaner sub

1шт.

2

1013968

AIR CLEANER

CLEANER - air FHG065256-001

1шт.

3

1014901

BRAKE BAND

BAND - air cleaner

2шт.

4

1013282

DIPSTICK

INDICATOR - restrictor

1шт.

5

1014914

CLAMP

- hose: S.S.#52 2.81-3.75

2шт.

6

1014880

SLEEVE

- rubber

1шт.

7

1026870

PIPE

WLDMT - air pipe

1шт.

8

1014897

CLAMP

- hose: S.S.#32 1.56-2.50

2шт.

9

1026871

INTAKE AIR HOSE,2.00" ID x 24.00"

HOSE - radiator: Dayco #82111GL

1шт.

10

1016187

CLAMP

- metal: 3.00

2шт.

11

1015951

EXTENSION ASSY.

EXT - air stack: 3" x 33.5"

1шт.

12

1014899

PRECLEANER

PRE - cleaner: #H00 1249-236-140

1шт.

13

1027356

STAND

WLDMT - air cleaner stand

1шт.

14

1015174

BOLT

BOLT - hex: .38 x 2.50 NC GR5 ZP

3шт.

15

1014608

WASHER

- flat: SAE .38 ZP

3шт.

16

232-1446

NUT,3/8"-16, GC

NUT - nylock: .38 NC GR6 ZP

3шт.

17

1019545

CARRIAGE BOLT,5/16" - 18 x 2", Gr 5

BOLT - CRG: .31 x 2.00 NC GR5 ZP

1шт.

18

1019546

CARRIAGE BOLT,5/16" - 18 x 2 1/2", Gr 5

BOLT - CRG: .31 x 2.50 NC GR5 ZP

1шт.

19

1018328

SPACER

PIPE - spacer

1шт.

20

1011582

WASHER

- flat: SAE .31 ZP

4шт.

21

1011575

NUT,5/16"-18, G5

- hex: .31 NC GR2 ZP

4шт.

22

1011598

BOLT

- hex: .31 x 1.00 NC GR5 ZP

4шт.

23

1013233

ELEMENT

DECAL - nameplate: air cleaner (Not shown)

1шт.

24

1014900

ELEMENT

1шт.
