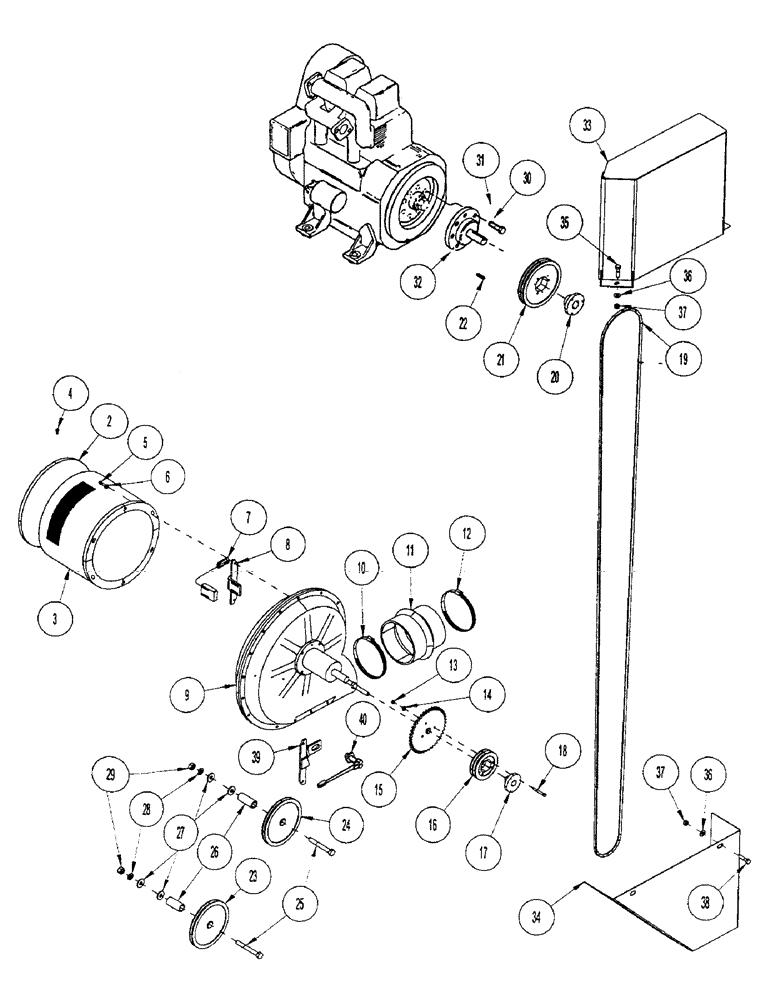

Запчасти Case IH 1100 (E36) - BLOWER MOUNTING, DIESEL

1

1020801

SCREEN

KIT

1шт.

2

1020540

SCREEN

- end

1шт.

3

1020543

SCREEN

WLDMT - screen

1шт.

4

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - zipin tap: #12 x 1/2"

4шт.

5

1011595

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT - hex: .25 x .75 NC GR5 ZP

4шт.

5

1013423

BOLT

BOLT - hex: .25 x 1.00 NC GR5 ZP

2шт.

6

1020416

WASHER

- flat: .25 ZP

6шт.

7

290355A1

SENSOR

SMART BLOWER (Refer to M200 elect sys for hardware)

1шт.

8

290295A1

BRACKET, SUPPORTING

BRACKET (Refer to M200 electrical sys for hardware)

1шт.

9

1024764

BLOWER

MODIFICATION - diesel blower

1шт.

10

1016416

CLAMP

- hose: S.S.#96 5.56-6.50

1шт.

11

1014892

HOSE,5.00" ID, 6.00" ID x 6.00"

- Hump reducer 5.00" ID, 6.00" ID x 6.00"

1шт.

12

1026256

CLAMP

- hose: S.S.#88 5.06-6.00

1шт.

13

1011587

NUT,1/4"-20, G5

- hex: .25 NC GR2 ZP

3шт.

14

1013297

LOCK WASHER

- lock: .25 NP

3шт.

15

1016120

SPROCKET ASSY.

SPROCKET - machining

1шт.

16

1014865

SHEAVE

- 2-3V-4.12 OD Martin

1шт.

17

1014868

HUB

- taper lock - SH .880 bore

1шт.

18

1016211

BOLT

BOLT - hex: .25 x 2.00 NC GR5 ZP

3шт.

19

1020078

SET OF BELTS,67.00" L

- 2/3V-670 - Standard 67.00" L

1шт.

19

1016394

BELT

- set: - 3V-710 - high

1шт.

20

1012343

HUB

- taper lock-SDS 1.190 bore

1шт.

21

1014863

SHEAVE

- 2-3V-6.90 OD Martin - standard

1шт.

21

1014864

SHEAVE

- 8.00" QD type D3-2Groov - high and D sump

1шт.

22

1012975

KEY

: .250 x .250 x 1.250

1шт.

23

1029617

FRONT IDLER

IDLER - flanged - high and D-Sump

2шт.

24

290529A1

PULLEY

IDLER - flanged - standard and high

2шт.

25

61-30256

HEX SOCKET HEAD CAP SCREW .625-11 x 3.5

1шт.

26

1029619

SPACER

TUBE - spacer - standard

1шт.

26

1029619

SPACER

TUBE - spacer - high

2шт.

27

1018813

WASHER - lock

1шт.

28

1013004

WASHER

- flat

2шт.

29

1014830

NUT

- hex: .625

1шт.

30

1012384

BOLT

- lock: metric M10 ZP

8шт.

31

892-11010

LOCK WASHER,M10

8шт.

32

1012363

SHAFT

STUBSHAFT - drive

1шт.

33

1025461

BELT

WLDMT - belt guard

1шт.

34

1029293

BELT

GUARD - belt

1шт.

35

1011601

BOLT

BOLT - hex: .38 x 1.25 NC GR5 ZP

2шт.

36

1014608

WASHER

- flat: SAE .38 ZP

2шт.

37

232-1446

NUT,3/8"-16, GC

NUT - nylock: .38 NC GR6 ZP

2шт.

38

1011602

BOLT

BOLT - hex: .375 x 1.50

2шт.

39

1016300

SENSOR

PICKUP - magnetic

1шт.

40

1020759

MOUNTING PARTS

WLDMT - mount-tach sensor

1шт.
