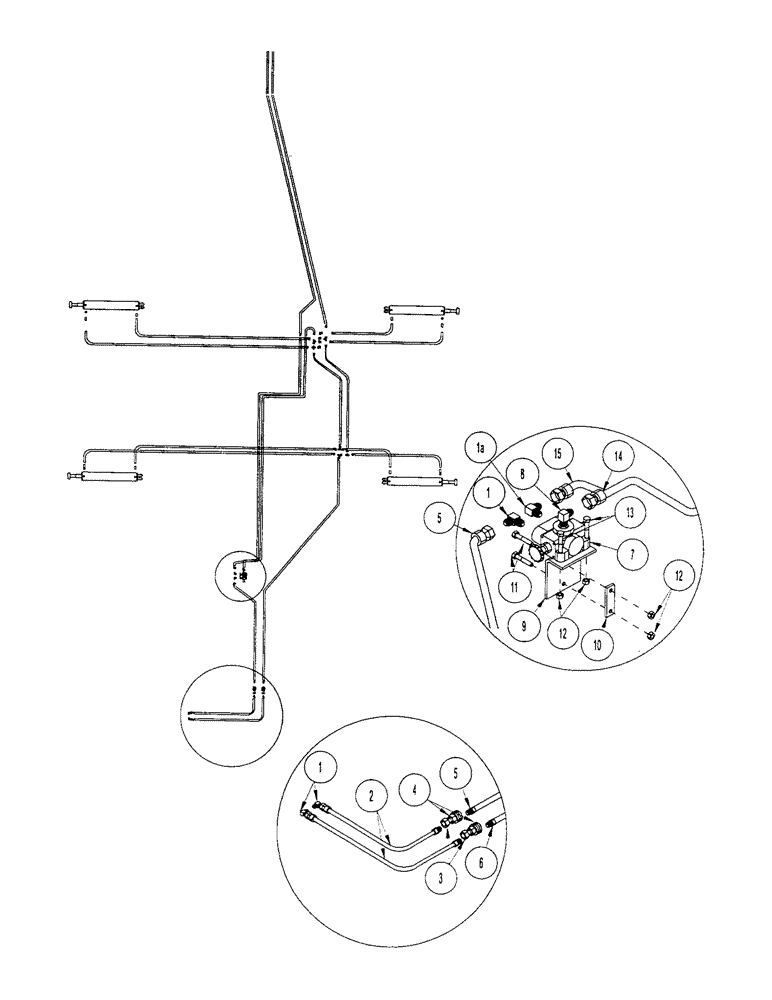

Запчасти Case IH 1100 (E34) - DIESEL AUGER FITTINGS, NO ATD

1

1024426

FITTING

FTG - elbow TMK#2501-12-12 (Order 218-486)

2шт.

2

1027049

HOSE ASSY.

HOSE .50 x 504-12JICFSW/-8NPTM

2шт.

3

1018131

FITTING

FTG - QK coup AQ#FD45-1003-08-10

2шт.

4

1018128

FITTING

FTG - QK coup AQ#FD45-1002-08-10

2шт.

1

1024426

FITTING

FTG - elbow TMK#2501-12-12 (Order 218-486)

4шт.

2

1027049

HOSE ASSY.

HOSE .50 x 504-12JICFSW/-8NPTM

2шт.

3

1018131

FITTING

FTG - QK coup AQ#FD45-1003-08-10

2шт.

4

1018128

FITTING

FTG - QK coup AQ#FD45-1002-08-10

2шт.

5

1027050

HOSE ASSY.

HOSE .50 x 072-8NPTM/-12JICFSW

1шт.

6

1027044

HOSE ASSY.

HOSE .50 x 158-8JICFSW/-8NPTM

1шт.

7

1024240

VALVE

- selector: VS4BKLF6

1шт.

8

1024328

FITTING

FTG - elbow TMK#2501-L-12-12

1шт.

9

1024344

PLATE

- mount

1шт.

10

1024345

LARGE PLATE

PLATE BOLTING TK .25'' PNTD

1шт.

11

1013239

BOLT

BOLT - hex: .38 x 3.00 NC GR5 ZP

2шт.

12

425-106

NUT,3/8"-16, Cl 5

4шт.

13

1011725

BOLT

BOLT - hex: .38 x 2.00 NC GR5 ZP (Order 413-632)

3шт.

14

1027045

HOSE ASSY.

HOSE .50 x 216-8JICFSW/12JICFS (4 rank)

1шт.

14

1027047

HOSE

.50 x 182-8JICFSW/12JICFS (3 rank)

1шт.

15

1027046

HOSE ASSY.

HOSE .50 x 216-8JICM/-12JICFSW (4 rank)

1шт.

15

1027048

HOSE

.50 x 182-8JICM/-12JICFSW (3 rank)

1шт.
