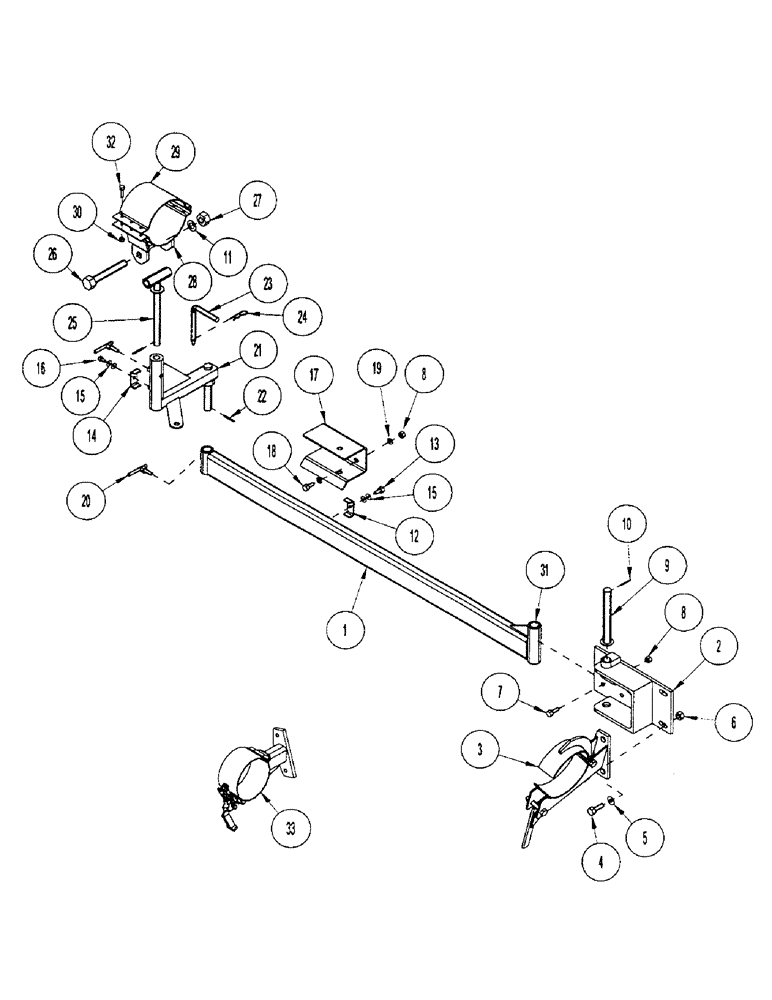

Запчасти Case IH 1100 (E30) - AUGER MOUNT

1

1026637

ARM ASSY.

ASSY - arm long w/bushings

1шт.

2

1026644

MOUNTING PARTS

MOUNT REAR

1шт.

3

1030090

CLAMP

ASSY - clamp 8.00 rear

1шт.

4

1011623

BOLT

- hex: .63 x 2.00 NC GR5 ZP (Order 413-1032)

2шт.

5

1013024

WASHER

- flat: .63 ZP

2шт.

6

1011578

NUT,5/8"-11, G5

- hex: .63 NC GR2 ZP (Order 425-1010)

2шт.

7

1011607

BOLT

BOLT - hex: .50 x 1.50 NC GR5 ZP (Order 413-824)

6шт.

8

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR8 ZP (Order 231-1448)

14шт.

9

1027531

PIN

WLDMT - pin

1шт.

10

1016876

PIN

- roll: .19 x 1.50 NP

1шт.

11

1016663

WASHER

- flat: SAE 1.00 ZP

1шт.

12

1024284

CLAMP

- hose small: .53 hole

2шт.

13

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Order 413-816) Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

14

1024284

CLAMP

- hose small

9шт.

15

1011586

LOCK WASHER

- lock: .38 ZP (Order 492-11038)

6шт.

16

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex: .38 x 1.00 NC GR5 ZP (Order 413-616)

9шт.

17

1026626

BRACKET

- auger

1шт.

18

1011606

BOLT

- hex: .50 x 1.25 NC GR5 ZP (Order 413-820)

4шт.

19

1011584

WASHER

- flat: SAE .50 ZP

2шт.

20

1024089

HANDLE

WLDMT - handle

2шт.

21

1026651

ARM ASSY.

WLDMT - arm short

1шт.

22

1011726

ROLL PIN

PIN - roll: .25 x 2.00 NP

2шт.

23

1026627

PIN

- lock

1шт.

24

1015033

PIN

- hair: .36 x 2.50 ZP

1шт.

25

1026661

TUBE,428.6, 114.3 mm Length

WLDMT - pivot tube

1шт.

26

1018839

BOLT

BOLT - hex: 1.00 x 7.00 NC GR5 ZP (Order 413-16112)

1шт.

27

232-14416

NUT,1"-8, GC

NUT - nylock: 1.00 NC GR6 ZP (Order 232-14416)

1шт.

28

1021457

CLAMP

WLDMT - clamp: 7.00 (Discontinued)

1шт.

28

1030089

CLAMP

ASSY - clamp 8.00

1шт.

29

1021456

CLAMP

- band 7.00 (Discontinued)

1шт.

29

1030088

CLAMP

- band 8.00

1шт.

30

232-1446

NUT,3/8"-16, GC

NUT - nylock: .38 NC GR6 ZP (Order 232-1446)

6шт.

31

1026636

BUSHING

BEARING - pivot FF-1506-4

4шт.

32

1011725

BOLT

BOLT - hex: .38 x 2.00 NC GR5 ZP (Order 413-624)

6шт.

33

1026658

CLAMP

WLDMT - clamp: 7.00 (Discontinued)

1шт.
