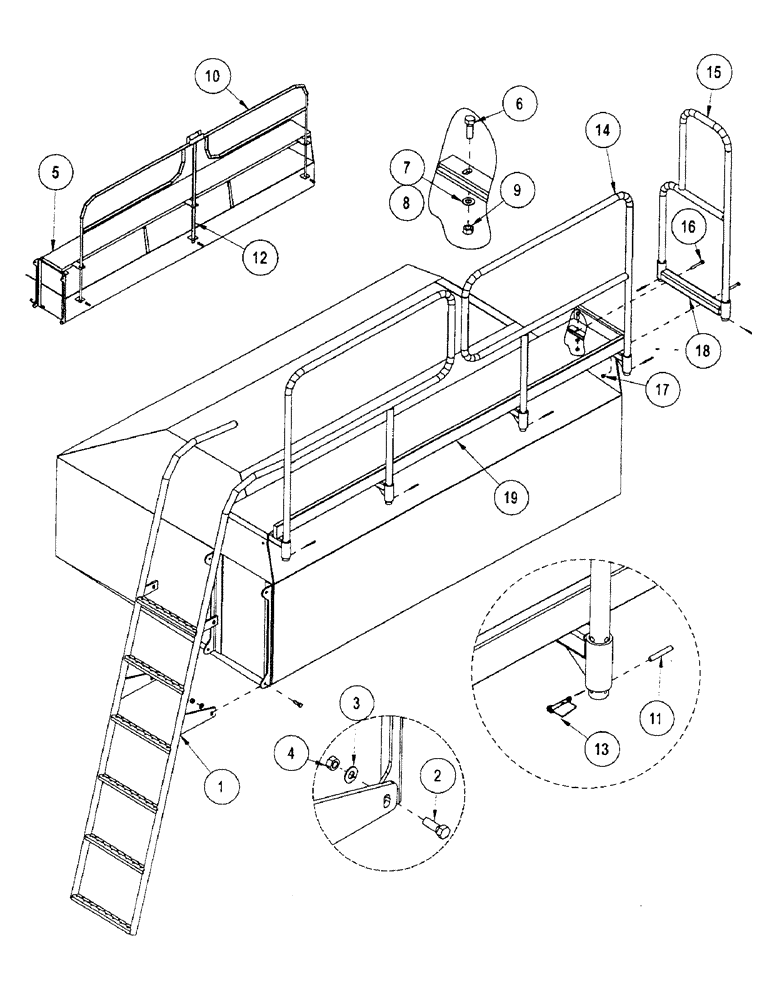

Запчасти Case IH 1100 (E28) - LADDER, HANDRAILS & CATWALK

1

1025034

LADDER

WLDMT - ladder

1шт.

2

1011607

BOLT

BOLT - hex: .50 x 1.50 NC GR5 ZP

4шт.

3

1011584

WASHER

- flat: SAE .50 ZP

4шт.

4

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP

4шт.

5

1027817

WALKWAY

CATWALK ASSEMBLY, Serial Range: (Prior-1996)

1шт.

6

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex: .38 x 1.00 NC GR5 ZP

8шт.

7

1014608

WASHER

- flat: SAE .38 ZP

8шт.

8

1011586

LOCK WASHER

- lock: .38 ZP

8шт.

9

425-106

NUT,3/8"-16, Cl 5

8шт.

10

1025053

RAIL

SAFETY RAIL ASSEMBLY, Serial Range: (Prior-1996)

2шт.

11

1011726

ROLL PIN

PIN - roll: .25 x 2.00 NP

6шт.

12

1013151

HOUSING

CENTER POLE ASSEMBLY, Serial Range: (Prior-1996)

1шт.

13

1013225

PIN

- wirelock: .31 x 2.75 NP

6шт.

14

1032173

RAIL

WLDMT - side handrail

2шт.

15

1032176

RAIL

WLDMT - front handrail

1шт.

16

1013239

BOLT

BOLT - hex: .38 x 3.00 NC GR5 ZP

2шт.

17

232-1446

NUT,3/8"-16, GC

NUT - nylock: .38 NC GR6 ZP

2шт.

18

1032139

SUPPORT

WLDMT - rail support

1шт.

19

1032170

WALKWAY

WLDMT - catwalk

1шт.
