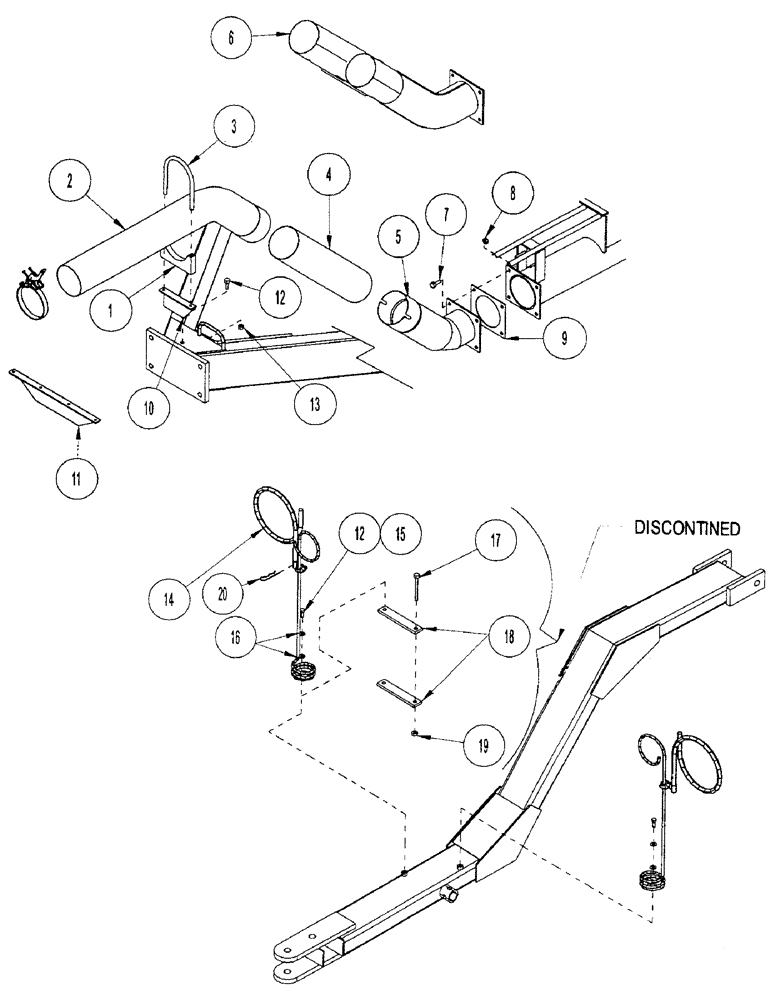

Запчасти Case IH 1100 (E24) - SINGLE/DUAL AIRSTREAM

1

1033299

CLAMP

SADDLE - muffler clamp 5.00 ZP (Single)

1шт.

1

1033299

CLAMP

SADDLE - muffler clamp 5.00 ZP (Dual)

2шт.

2

1025471

ELBOW

- 45 degrees: expanded end (Single)

1шт.

2

1025471

ELBOW

- 45 degrees: expanded end (Dual)

2шт.

3

1033298

U-BOLT

BOLT UR .375 5.188W 3.657D (Single)

1шт.

3

1033298

U-BOLT

BOLT UR .375 5.188W 3.657D (Dual)

2шт.

4

1024637

AIR TUBE

TUBE - air (Single)

1шт.

5

1024641

ELBOW

WLDMT - elbow 802/1100 (Single)

1шт.

6

1025351

ELBOW

WLDMT - elbow Y-Tube (Dual)

1шт.

7

1011606

BOLT

- hex: .50 x 1.25 NC GR5 ZP (Order 413-820)

4шт.

8

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP (Order 231-1448)

4шт.

9

1023159

GASKET

.13 x 5.75 x 7 - 5" ID

1шт.

10

1024635

BRACKET

- mount (Single)

1шт.

11

1025330

SUPPORT

BRACKET - mount (Dual)

1шт.

12

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Order 413-816) (Single) Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

12

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

(Order 413-816) (Dual) Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

13

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP (Order 231-1448)

1шт.

14

1027628

BRUSH HOLDER

ASSY - hose holder (Single)

1шт.

14

1027628

BRUSH HOLDER

ASSY - hose holder (Dual)

2шт.

15

1011618

BOLT

- hex: .50 x 5.00 NC GR5 ZP (Discontinued) (Dual)

2шт.

16

1014443

WASHER

- flat: .50 ZP

2шт.

17

1013682

BOLT

- hex: .50 x 4.50 NC GR5 ZP (Discontinued) (Dual)

2шт.

18

1023957

LARGE PLATE

BACKUP (Dual)

4шт.

19

231-1448

NUT,1/2"-13, GB

- nylock: .50 NC GR6 ZP (Discontinued) (Dual)

4шт.

20

0100435

HAIR PIN COTTER,M19

PIN - hair: .15 x 2.69 ZP

1шт.
