Запчасти Case IH 1100 (E21) - KIT-CALIBRATION

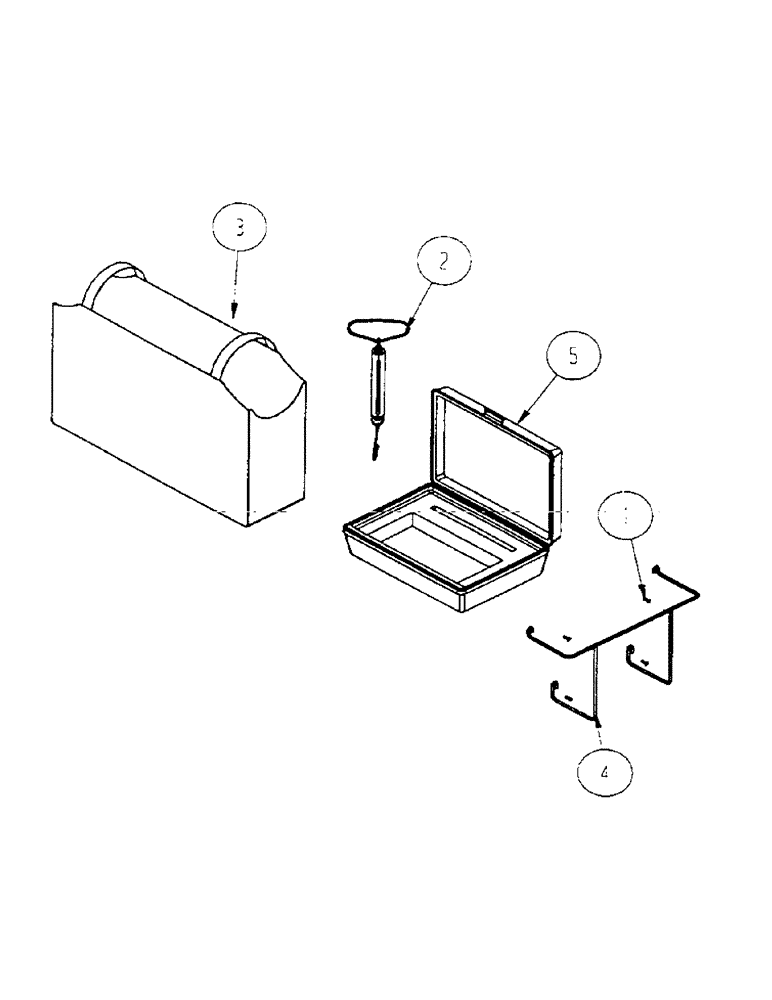

Схема запчастей Case IH 1100 - (E21) - KIT-CALIBRATION
2
1
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PL2945

KIT

CALIBRATION KIT (Includes 1-5)

1шт.

1

1030638

RIVET

: pop L .19 x .531

4шт.

2

1032044

SCALE

- calibration kit

1шт.

3

1032048

PROMOTIONAL BAG

BAG - calibration kit

1шт.

4

1032133

CONTAINER

WLDMT - manual container

1шт.

This Weldment container is riveted to the 1032296 Mount Container. The 1032296 is bolted to the frame with a 413-1020 bolt-hex .63 x 1.25 qty 2 and 425-1010 nut- hex .63 qty of 2. This infor. will be added to next manual.

1шт.

5

1032151

CONTAINER

ASSY - manual container

1шт.
