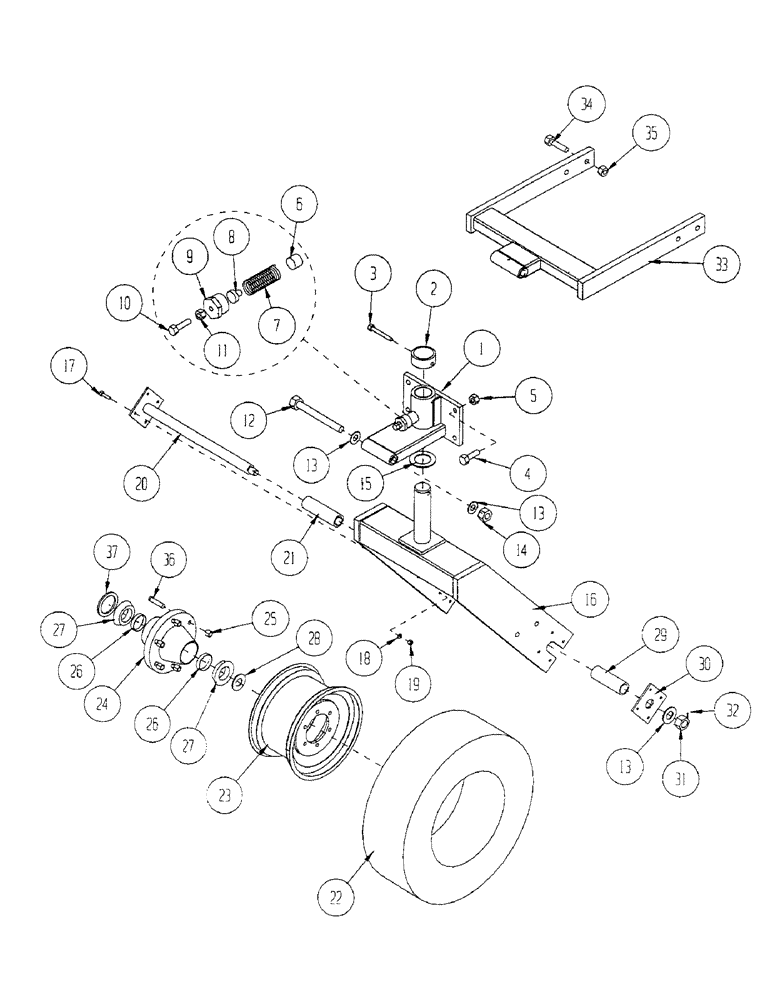

Запчасти Case IH 1100 (E18) - LARGE FRONT CASTER

1

1025309

HOUSING

ASSY - king pin HSG & Bushing (Ref 37)

1шт.

2

1024667

RETAINER

WLDMT - retainer

1шт.

3

1011613

BOLT

BOLT - hex: .50 x 4.00 NC GR5 ZP (Order 413-864)

1шт.

4

1016598

BOLT

- hex: .75 x 2.50 NC GR5 ZP (Order 413-1240)

4шт.

5

425-1012

NUT,3/4"-10, G5

(Order 425-1012) 3/4"-10, G5

4шт.

6

1025027

RUBBER BLOCK

SNUBBER - brass (2330027-42)

1шт.

7

1025024

SPRING

- (Case-IH 2330027-74)

1шт.

8

1025025

DETENT

- round (Case-IH2330027-75)

1шт.

9

1029548

CAP

- detent

1шт.

10

1025026

BOLT

WLDMT - bolt - hex: .5x2 NC GR8 NP

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

12

1017897

BOLT (MACHINE)

BOLT - hex: 1.00 x 9.00 NC GR8 ZP (Order 426-16144)

1шт.

13

1016663

WASHER

- flat: SAE 1.00 ZP

3шт.

14

9849633

NUT,1"-8, G5

- hex: 1.00 NC GR2 ZP (Order 425-1016)

1шт.

15

1014154

THRUST WASHER

2.5 ID 4OD .188 YZD

1шт.

16

1025365

WHEEL

WLDMT - caster large

1шт.

17

1011602

BOLT

BOLT - hex: .38 x 1.50 NC GR5 ZP (Order 413-624)

8шт.

18

1011583

WASHER

- flat: .31 ZP

8шт.

19

232-1446

NUT,3/8"-16, GC

NUT - nylock: .38 NC GR6 ZP (Order 232-1446)

8шт.

20

1025367

AXLE

WLDMT - axle

1шт.

21

1025369

TUBE

- spacer RH

1шт.

22

1022720

TYRE/TIRE

TIRE - MNTD: 16.5 x 16 6ply 12

1шт.

1033116

TYRE/TIRE

TIRE - MNTD: 16.5 x 16 6ply I3 (Option)

1шт.

22

1016043

TYRE/TIRE

TIRE 16.5L - 16.1 6 ply I-2

1шт.

1025530

TIRE 16.5L - 16.1 6 ply I-3 (Option)

1шт.

23

1012382

RIM

W11C 16.1 6-Hole 3,500 LB

1шт.

Earlier units used a 1024548 hub with cups and 1/2" studs used in a 1026312 hub assy. Now 1033324 item #24 has 9/16" studs

1шт.

1012383

VALVE STEM

VALVE - stem

1шт.

1025463

HUB ASSY.

ASSY - hub straddle: CT&D large

1шт.

24

1033324

HUB

ASSY - hub W/Cups & studs

1шт.

Earlier units used a 1024548 hub with cups and 1/2" studs used in a 1026312 hub assy. Now 1033324 item #24 has 9/16" studs

1шт.

25

1025464

NUT

- Bev: .56 NF GR2 NP

6шт.

26

1024999

BEARING, CUP

CUP (CT&D #13621 for H617 hub)

2шт.

27

1025023

BEARING, CONE

CONE (CT&D#13686 for H617 hub)

2шт.

28

1025046

SEAL

- CT&D # SE24

2шт.

29

1025368

TUBE

- spacer LH

1шт.

30

1024581

AXLE

PLATE - axle

1шт.

31

425-1216

SLOTTED NUT,Hex, 1"-8, G5

(Order 425-1216) Hex, 1"-8, G5

1шт.

32

1013473

ANGLE BAR

PIN - cotter: .19 x 2.00 NP (Order 432-1232)

1шт.

33

1025364

HITCH ASSY

ASSY - tow hitch (Optional)

1шт.

34

1012059

BOLT

BOLT - hex: .75 x 3.00 (Order 413-1248)

4шт.

35

1011620

NUT,3/4"-10, G5

- hex: .75 (Order 425-1012)

4шт.

36

1016176

STEP BOLT

BOLT STUD .563 UNF GR5 WB41

6шт.

37

1014163

BRONZE BUSHING,63.96mm ID x 69.95mm OD x 50.8mm L

Bushing Oilite (Not Shown)

2шт.
