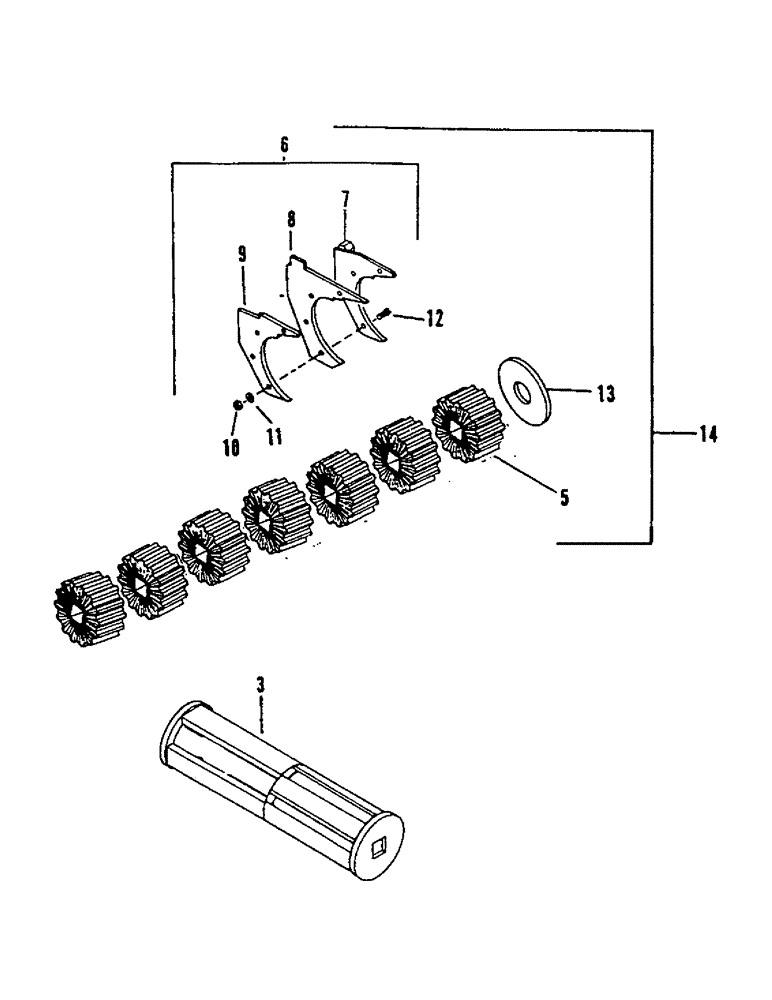

Запчасти Case IH 1100 (E17) - METERING ROLL ASSEMBLIES, DISCONTINUED

3

1014952

X

METERING ROLL, sunflowers and coarse grass seed

1шт.

5

1027392

KIT

- rape seed

1шт.

6

1015485

PLATE

AND SEAL ASSEMBLY, fine seed, (Incl items 7-12)

1шт.

7

1015481

PLATE

FLOW CONTROL PLATE

1шт.

8

1015480

RUBBER SEAL

rubber

1шт.

9

1015479

LARGE PLATE

PLATE

1шт.

10

1015483

NUT

hex, #6

4шт.

11

1015484

LOCK WASHER

LOCK WASHER, #6

4шт.

12

1015482

SCREW

#6 x 7/8"

4шт.

13

1015623

DISC

thrust

1шт.

14

1018550

KIT

METERING ROLL KIT, fine seed, includes items 5, 6 & 13

1шт.
