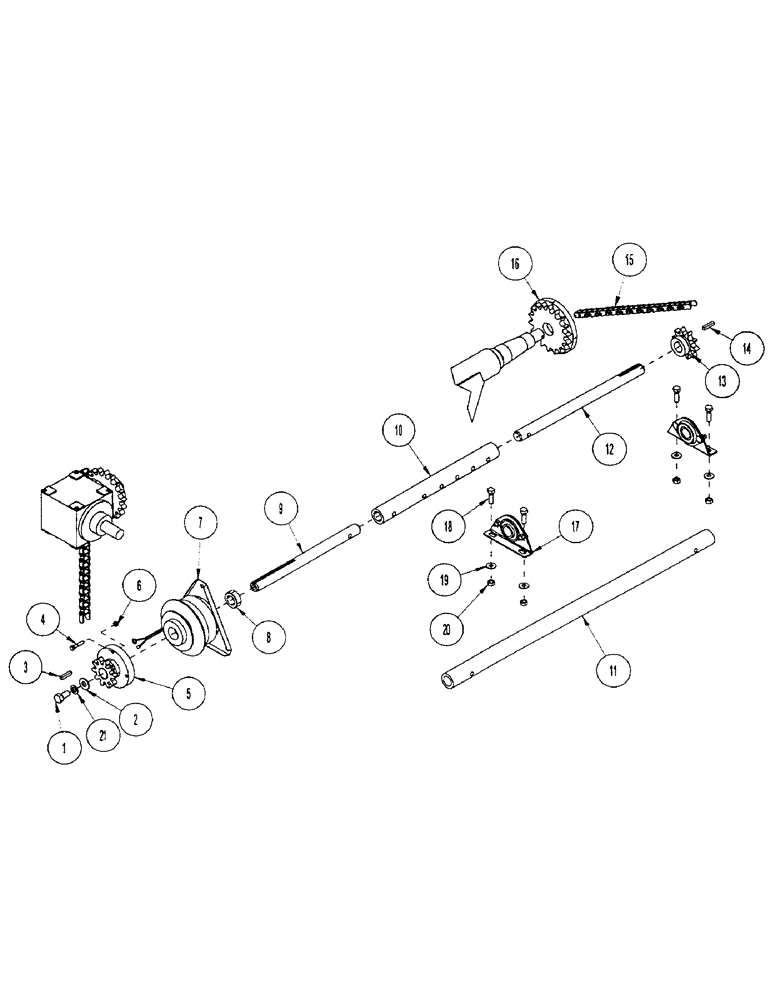

Запчасти Case IH 1100 (E14) - ASSEMBLY-CLUTCH

1

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

2

1014443

WASHER

- flat: .50 ZP

1шт.

3

1013084

KEY

: .25 x .25 x 2.00

1шт.

4

1013940

BOLT

BOLT - hex: .25 x 1.25 NC GR5 ZP

4шт.

5

1021091

ADAPTER

ASSY - adapter

1шт.

6

1011587

NUT,1/4"-20, G5

- hex: .25 NC GR2 ZP

4шт.

7

1021090

CLUTCH DISC

CLUTCH - electric: Warner 5210-25

1шт.

7

1021588

CLUTCH

- electric: rework (Discontinued M100)

1шт.

8

1013418

COLLAR

- set: 1.00

1шт.

9

1024670

SHAFT

- drive clutch

1шт.

10

1024668

TUBE,26 mm ID, 38.1 mm OD

- drive shaft (68-88)

1шт.

11

1024669

TUBE,1.03" ID, 1.5" OD

- drive shaft (120)

1шт.

12

CAS1025093

SHAFT

- drive wheel

1шт.

13

1012976

DRIVE SPROCKET

SPROCKET - 60BS 10 x 1.00 Martin

1шт.

14

1012975

KEY

: .250 x .250 x 1.250

1шт.

15

1025048

CHAIN (AG)

CHAIN - roller: 27 links #60

1шт.

15

1018683

LINK

- offset: #60 OL

2шт.

15

1022965

LINK, CONNECTING

LINK - connector: 60 .750 PTCH

2шт.

16

1024631

FLANGE

WLDMT - flange and sprocket

1шт.

17

1018571

BEARING ASSY

ASSY - pillow block bearing

2шт.

18

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex: .38 x 1.00 NC GR5 ZP

4шт.

19

95-11051

WASHER - flat: SAE .38 ZP

4шт.

20

425-106

NUT,3/8"-16, Cl 5

4шт.

21

1011581

LOCK WASHER

- lock: .50 ZP

1шт.
