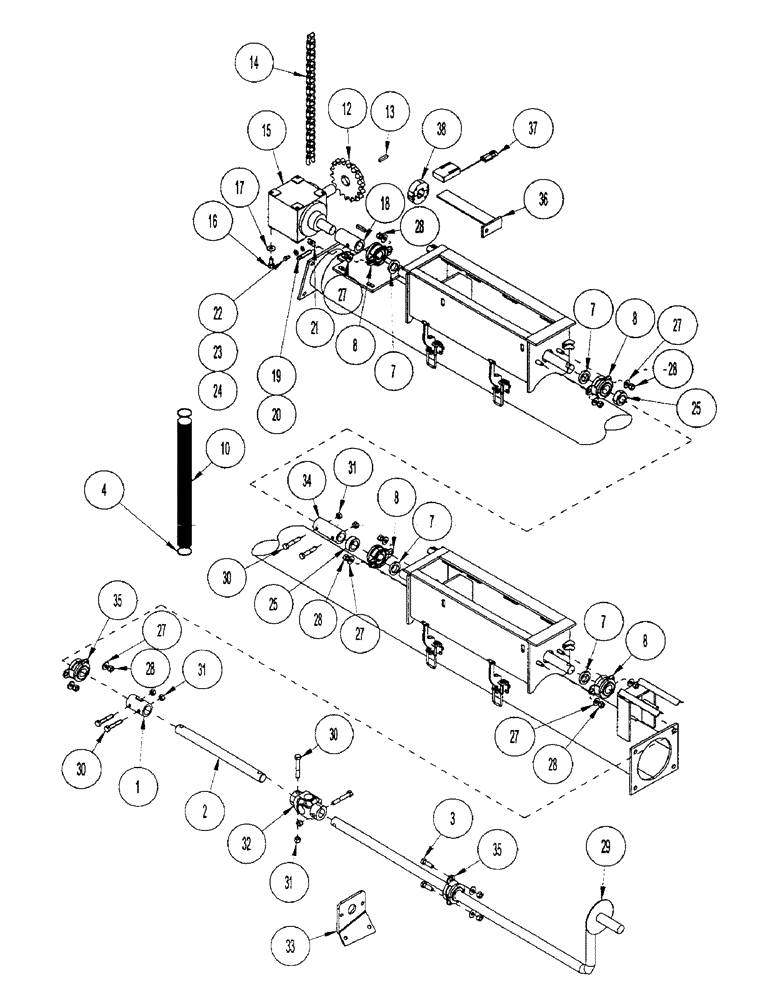

Запчасти Case IH 1100 (E12) - DRIVE LINE

1

1025089

COUPLING

ASSY - coupler

1шт.

2

1025073

DRIVE SHAFT

SHAFT - drive

1шт.

3

1011601

BOLT

BOLT - hex: .38 x 1.25 NC GR5 ZP (Order 413-620)

12шт.

4

1013134

CLAMP

- hose: S.S.#28 1.32-2.25

4шт.

7

1012978

SEAL

WASHER - rubber

4шт.

8

1012986

BEARING ASSY,25.4mm ID

BEARING FLANGE/A

4шт.

10

1021609

AIR HOSE,1.50" ID x 72.00"

1.50" ID x 72.00"

2шт.

12

1020645

SPROCKET ASSY.

SPROCKET - 60B23 x 1.00 bore

1шт.

13

1012975

KEY

: .25 x .25 x 1.25

2шт.

14

1018683

LINK

- offset: #60 OL

2шт.

14

1022965

LINK, CONNECTING

LINK - connector: #60 .750 PTCH

2шт.

14

1025332

CHAIN (AG)

CHAIN - roller: 35 links #60

1шт.

15

0100908

GEARBOX ASSY

ASSY - bevel gear drive

1шт.

16

1011599

BOLT

BOLT - hex: .38 x .75, NC, GR5, ZP (Order 413-612)

4шт.

18

1013042

TUBE,1.017" ID, 1.5" OD

- coupler 1.5 x 1.00 x 3.00

1шт.

19

1013218

PIN

Shear, Brass

1шт.

20

1013044

SET SCREW

SCREW - set: .25 x .25 NC GR8 NP

1шт.

21

1013221

STRIP

- shear pin

1шт.

22

1013243

BOLT

BOLT - hex: .25 x .50 NC GR5 ZP

1шт.

24

0100979

WASHER

- flat: SAE .25 ZP

1шт.

25

1013418

COLLAR

- set: 1.00

2шт.

27

1033266

WASHER

- flat: .38 SS

8шт.

28

232-1446

NUT,3/8"-16, GC

NUT - nylock: .38 NC GR6 ZP

8шт.

29

1032466

CRANK

ASSY - crank

1шт.

30

1011725

BOLT

BOLT - hex: .38 x 2.00 NC GR5 ZP

7шт.

31

232-1446

NUT,3/8"-16, GC

NUT - nylock: .38 NC GR6 ZP

5шт.

32

1013301

JOINT

- universal (Rework)

1шт.

33

1025467

MOUNTING PARTS

MOUNT - bearing

1шт.

34

1025074

TUBE,1.03" ID, 1.5" OD

- coupler

1шт.

35

1030961

FLANGED BEARING,25.63mm ID

BEARING FLANGE/A

2шт.

36

290354A1

BRACKET

/ W shaft sensor (See M200 elec. for hardware)

1шт.

37

290353A1

SENSOR

SMART SHAFT

1шт.

38

290356A1

RING

SENSOR MAGNETIC RING

1шт.
