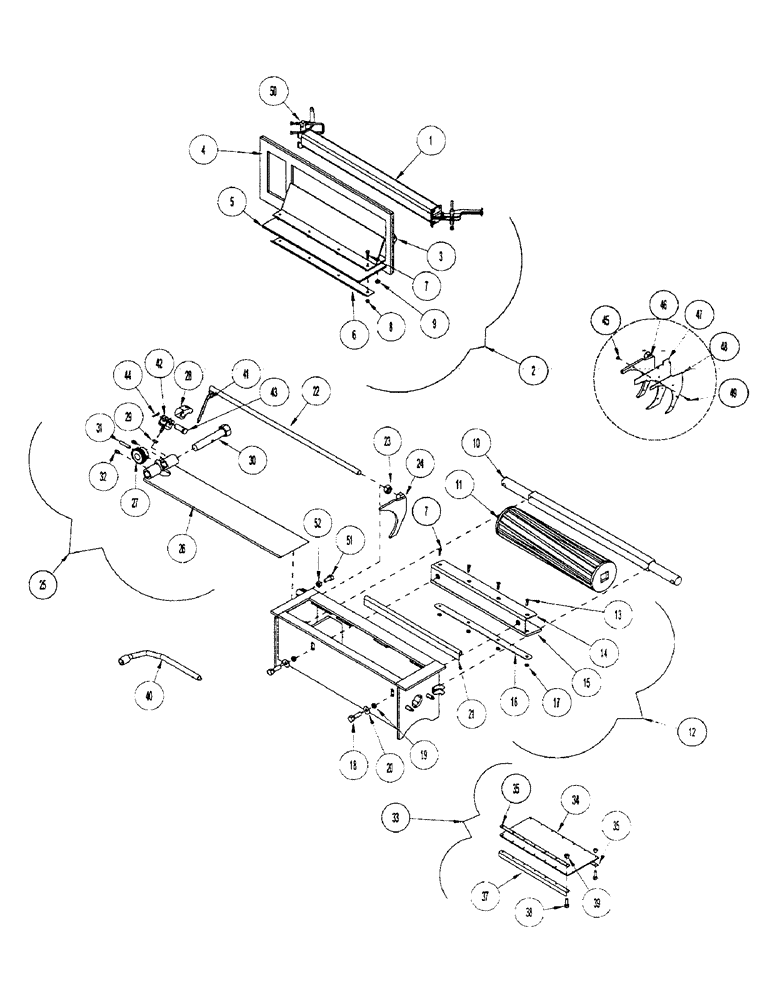

Запчасти Case IH 1100 (E10) - PRODUCT METER REAR

1

1016213

TOGGLE

WLDMT - toggle

1шт.

2

1016218

COVER ASSY

ASSY - cover & wiper: rear Inl 3-9

1шт.

3

1016215

COVER

WLDMT - cover rear

1шт.

4

1018874

GASKET

- door: side

1шт.

5

1030985

SEAL

WIPER - rubber

1шт.

6

1030984

WIPER

- support

1шт.

7

1032058

SCREW

- F-H-S-C: .19 x .50 NC SS

4шт.

8

1032059

LOCK NUT

NUT - K-Lock: 18-8 SS .19 NC

4шт.

9

1032060

WASHER,0.2" ID x 0.44" OD x 0.04" Thk

- flat: .19 SS

4шт.

10

1013920

SHAFT

- roll drive

1шт.

11

METERING ROLL (Reference see meter roll parts page)

1шт.

12

1013310

DEFLECTOR

ASSY - seed deflector: rear

1шт.

13

1032095

SCREW

- F-H-S-C: .19 x .625 NC SS

4шт.

14

1012955

DEFLECTOR

WLDMT - plate deflector

1шт.

15

1013128

DEFLECTOR

- rubber

1шт.

16

1013127

STRIP

- hold

1шт.

17

1032059

LOCK NUT

NUT - K-Lock: 18-8 SS .19 NC

4шт.

18

1033271

BOLT

- hex: .38 x 1.00 NC SS

2шт.

19

1033267

WASHER, LOCK

WASHER - lock: .38 SS

2шт.

20

1033266

WASHER

- flat: .38 SS

2шт.

21

1027931

SEAL

- extruded "P"

1шт.

22

1032029

CONTACT

ASSY - flow control rod

1шт.

23

1032190

JAM NUT

- jam: .50 NC SS

1шт.

24

1032088

LARGE PLATE

ASSY - flow control plate

1шт.

25

1032031

DOOR ASSY.

ASSY - metering door rear

1шт.

26

1030047

DOOR

WLDMT - rear door

1шт.

27

1013346

PINION

- rework

1шт.

28

1030001

LATCH ASSY.

LOCK - pointer

1шт.

29

425-144

JAM NUT,Jam, 1/4"-20, G5

- jam: .25 NC GR2 ZP

1шт.

30

1013092

BOLT

- special

1шт.

31

1021512

PIN

- roll: .25 x 1.38 ZP

1шт.

32

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

ZERK - grease: .25 UNF STR

2шт.

33

1013283

DOOR ASSY.

ASSY - door: cleanout

1шт.

34

1013176

COVER

- rubber: cleanout door

1шт.

35

1013177

SUPPORT

- narrow

1шт.

36

1013177

SUPPORT

- narrow

1шт.

37

1013284

ANGLE

WLDMT - angle latch

1шт.

38

1033270

BOLT

BOLT - hex: .25 x .75 NC SS

16шт.

39

1033269

LOCK NUT

NUT - nylock: .25 NC SS

16шт.

40

1013281

TOOL

WLDMT - wrench

1шт.

41

1030865

POINT

BAR - pointer

1шт.

42

1030866

ANCHOR

WLDMT - flipper mount

1шт.

43

1030867

CLEVIS PIN

PIN - clevis: .50 x 1.25 ZP

1шт.

44

1011778

PIN, SPLIT (COTTER)

PIN - cotter: .13 x 1.00 NP

1шт.

45

1032094

LOCK NUT

NUT - K-Lock: #6 NC SS

4шт.

46

1032086

PLATE

WLDMT - flow control plate

1шт.

47

1027932

LARGE PLATE

PLATE - flow control

1шт.

48

1027884

SEAL

- rubber outer

1шт.

49

1032093

SCREW

- P-H: #6 x .50 NC SS

4шт.

50

1029248

U-BOLT

TOGGLE ASSEMBLY

2шт.

51

1015173

BOLT

- hex: .31 x .75, NC SS

1шт.

52

1023719

NUT

- jam: .31, NC, SS

1шт.

1013286

TOGGLE

used with part number 1029248, U BOLT

2шт.
