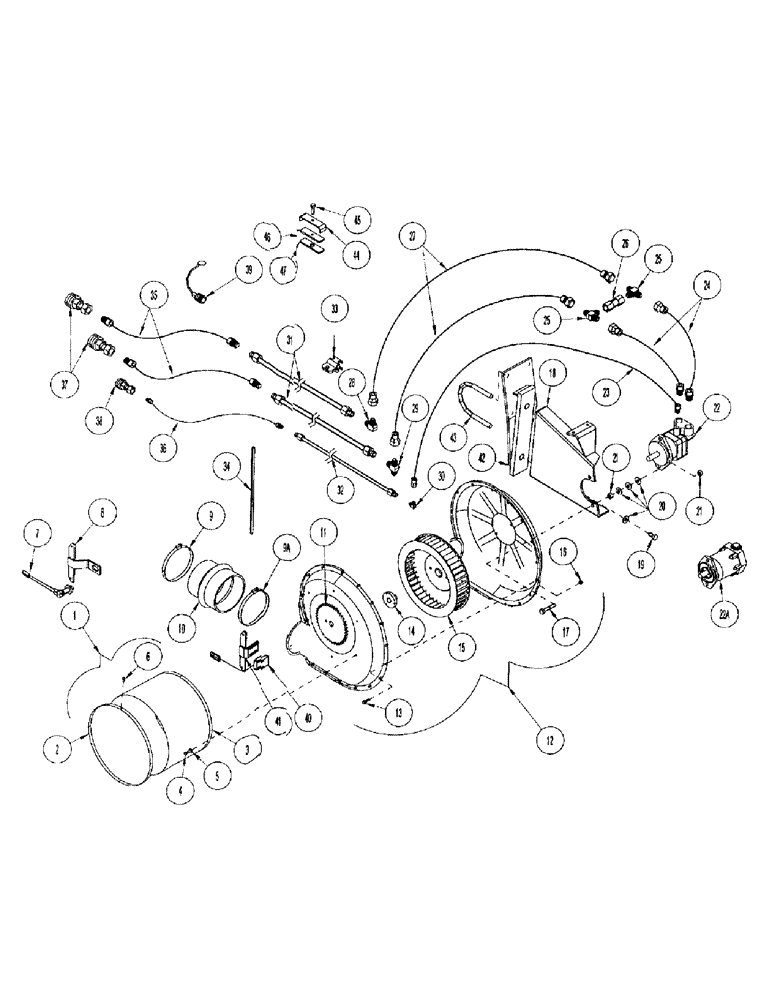

Запчасти Case IH 1100 (E04) - HYDRAULIC BLOWER, 100

1

1020801

SCREEN

KIT

1шт.

2

1020540

SCREEN

- end

1шт.

2

1024770

BLOWER

MODIFICATION - hydraulic blower

1шт.

3

1020543

SCREEN

WLDMT - screen

1шт.

4

1011595

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT - hex: .25 x .75 NC GR5 ZP

4шт.

4

1013423

BOLT

BOLT - hex: .25 x 1.00 NC GR5 ZP

2шт.

5

1020416

WASHER

- flat: .25 ZP

6шт.

6

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - zipin tap: #12 x 1/2"

4шт.

7

1016300

SENSOR

PICKUP - magnetic (Discontinued used on M100 elect.)

1шт.

8

1020759

MOUNTING PARTS

WLDMT - mount - tach sensor (Discont. used on M100 elect)

1шт.

9

1016416

CLAMP

- hose: S.S.#96 5.56-6.50

1шт.

9

1026256

CLAMP

- hose: S.S.#88 5.06-6.00

1шт.

10

1014892

HOSE,5.00" ID, 6.00" ID x 6.00"

- Hump reducer 5.00" ID, 6.00" ID x 6.00"

1шт.

11

1020761

SPROCKET ASSY.

SPROCKET - tach machining

1шт.

13

1015646

BOLT

- Wzlok: .25 x 1.00 (Order 409-7416)

16шт.

14

1020459

BUSHING

HUB - taper lock

1шт.

1020459, if looking for the bolt, part number is 1033363.

1шт.

15

1024908

FAN

ROTOR ASSEMBLY

1шт.

16

1015626

FLANGE NUT - lock: .25

16шт.

17

102415

SUPPORT

SCREW - FHSC: .50 x 2.50

2шт.

18

1020527

MOUNTING PARTS

WLDMT - Hyd mount

1шт.

19

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

20

1011581

LOCK WASHER

- lock: .50 ZP

6шт.

20

1011581

LOCK WASHER

- lock: .50 ZP

6шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

22

1013988

MOTOR, HYDRAULIC

MOTOR - Hyd: Volvo F11-10-HUCHK

1шт.

1013988R

REMAN-HYD MOTOR

1100

1шт.

1013988C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

312672A1

SEAL KIT

Seal Kit For 1013988

1шт.

22a

1026071

MOTOR, HYDRAULIC

EATON HYD. motor (Discontinued)

1шт.

23

1015017

HOSE ASSY.

HOSE .38 x 044-8JICFSW/-6 OR M

1шт.

24

1024327

HOSE ASSY.

HOSE .75 x 019-12JICFSW/-12 OR

2шт.

25

1024325

FITTING

FTG - tee TMK#2601-12-12

2шт.

26

1024320

VALVE, CHECK

FTG - CK val AFP#DC-750-5 P.S.I.

1шт.

27

1024330

HOSE ASSY.

HOSE .75 x 034-12JICFSW both

2шт.

28

1015131

ELBOW

FTG - elbow: (Order 218-476)

1шт.

29

1024324

FITTING

FTG - tee TMK#2603-12 (Order 218-596)

1шт.

30

1015130

ELBOW

FTG - elbow: (Order 218-474)

1шт.

31

1024663

HYD TUBE,19.1 mm Diameter, 2198, 114.3 mm Length

ASSY - tube

2шт.

32

1024661

HYD TUBE,12.7 mm Diameter, 2196, 114.3 mm Length

ASSY - tube

1шт.

33

1015018

CLAMP

8шт.

33

1015019

CLAMP

(Order 897491D)

4шт.

34

1021331

RUBBER

TRIM EDGE

1шт.

35

1024678

HOSE ASSY.

HOSE .75 x 180-12JICM/-12NPTM

2шт.

36

1024677

HOSE ASSY.

HOSE .38 x 280-8JICM/-8NPTM

1шт.

37

1015970

COUPLING

ASSY - quick coupling

2шт.

Seal repair kit is part No. 120783A1

1шт.

38

1015975

COUPLING

ASSY - quick coupling

1шт.

39

1015973

DUST CAP

: AQ #FD45-1040-12

2шт.

39

1015974

PLUG

DUST - plug: AQ# FD45-1041-12

2шт.

39

1015978

DUST CAP

DUST - cap: AQ# FD45-1040-10

1шт.

39

1015979

PLUG

DUST - plug: AQ# FD45-1041-10

1шт.

40

290355A1

SENSOR

SMART BLOWER (Refer to M200 elec sys for hardware)

1шт.

41

290255A1

BRACKET (Refer to M200 electrical sys for hardware)

1шт.

42

1024626

MOUNTING PARTS

WLDMT - blower mount

1шт.

43

1030623

U-BOLT

BOLT-U .50X6.06X5.00 ID

2шт.

44

1024285

CLAMP

-HOSE LARGE PNT

3шт.

45

1011601

BOLT

BOLT - hex: .38 x 1.25 NC GR5 ZP

3шт.

46

1027325

ISOLATOR: .38 hole

3шт.

47

1027326

ISOLATOR: .75 hole

3шт.

306967A1

KIT

M100 to M200 for 1100 Hydraulics

1шт.

306975A1

KIT

M100 to M200 for 1100 Diesel

1шт.
