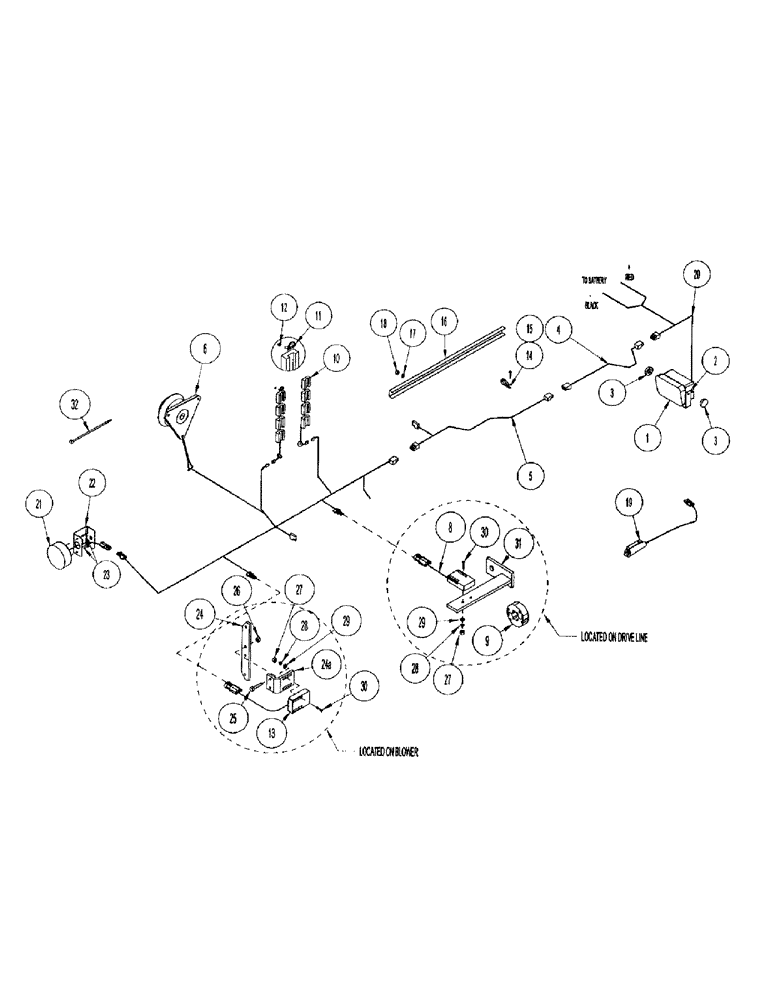

Запчасти Case IH 1100 (E02) - M200 ELECTRICAL SYSTEM

1

290190A1

CONTROL

MONITOR BOX (M200)

1шт.

2

290362A1

BRACKET

- monitor box

1шт.

3

290363A1

KNOB

2шт.

4

290291A1

HARNESS

- tractor

1шт.

5

290292A1

HARNESS

- tillage

1шт.

6

1021090

CLUTCH DISC

CLUTCH - elect. warner 5210-25 (Replaces 1021588)

2шт.

1021588

CLUTCH

- elect. rework (Discontinued)

1шт.

7

290293A1

HARNESS

- air system

1шт.

8

290353A1

SENSOR

SMART SHAFT

1шт.

9

290356A1

RING

SENSOR MAGNETIC RING

1шт.

If looking for two magnets Part No. 1024937, secured by 2 part epoxy glue

1шт.

10

290294A1

SENSOR

BIN 4 LEVEL

8шт.

11

290547A1

HOSE CLAMP

CLAMP - hose

16шт.

12

290077A1

LOCK NUT

K LOCK: #8-32, SS

32шт.

13

290355A1

SENSOR

SMART BLOWER

1шт.

14

1016352

CLAMP

- harness: .75 x .38

10шт.

15

1011974

RIVET

- pop: .19 x .531

10шт.

16

1022820

PROTECTOR

CHANNEL PROTECTOR

1шт.

17

1011583

WASHER

- flat: .31, ZP

8шт.

18

231-1455

NUT - nylock: .31, NC GR6, ZP

8шт.

19

233788A1

HARNESS

SWITCH REMOTE

1шт.

20

290394A1

HARNESS

TRACTOR POWER

1шт.

21

1032179

LAMP

ASSY - red tail lamp

1шт.

22

1032149

BRACKET

- light

1шт.

23

1013336

SELF-TAP SCREW,M12 x 35mm, Cl 12.9

- S-Tap, .19 x .75, GR5, ZP

1шт.

1013389

THRUST WASHER

- star: .19, ZP (Order 493-21020)

2шт.

24

290295A1

BRACKET, SUPPORTING

BRACKET / A fan speed

1шт.

24a

290392A1

BAR

BRACKET - fan speed

1шт.

24b

290387A1

BRACKET

- fan speed

1шт.

25

1013940

BOLT

BOLT - hex: .25 x 1.25

2шт.

26

1013240

LOCK NUT,1/4"-20, GB

NUT - nylock: .25, NC GR6, ZP

2шт.

27

1011587

NUT,1/4"-20, G5

- hex: .25, NC GR2, ZP

4шт.

28

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

- flat SAE: .25, ZP

2шт.

29

1013297

LOCK WASHER

- lock: .25, NP

8шт.

30

290386A1

SCREW

: #8-32 x 1.00, SS

8шт.

31

290354A1

BRACKET

/ W shaft sensor

2шт.

32

1013122

CABLE TIE

TIE - 15.50 Waytek #21046

11шт.

1032920

SENSOR

meter blockage, NAPO TECH

1шт.

128817C1

BRUSH, COMMUTATOR

sensor cleaning

1шт.

306967A1

KIT

M100 to M200 for 1100 Hydraulics

1шт.

306975A1

KIT

M100 to M200 for 1100 Diesel

1шт.

1032048

PROMOTIONAL BAG

calibration

1шт.

350678A1

RAIL

drip

1шт.

350713A1

PACKAGE

non slip surface

1шт.
