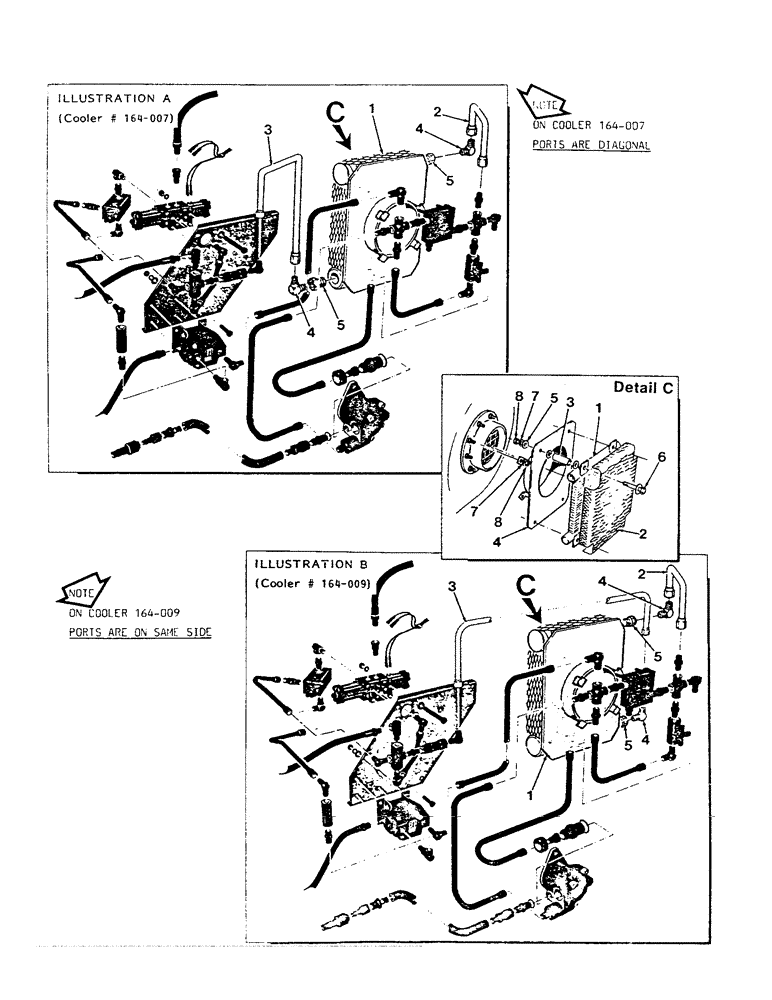

Запчасти Case IH 1002 (50[3]) - DETAIL C, INSTALLATION OF COOLER NUMBER 164-007 OR 164-009

1

164-007

COOLER, (Refer illustration "A" or "B" item 1)

1шт.

164-009

COOLER, (Refer illustration "A" or "B" item 1)

1шт.

2

164-006

SCREEN

1шт.

3

164-005

SPACER

4шт.

4

164-001

MOUNT, Ass'y. oil cooler

1шт.

5

900-290

FLATWASHER, .38" Dia.

16шт.

6

900-213

CAPSCREW, hex head, .38 x 3.0"

4шт.

7

900-292

LOCKWASHER, .38" Dia.

8шт.

8

900-285

NUT, .38" Dia.

8шт.
