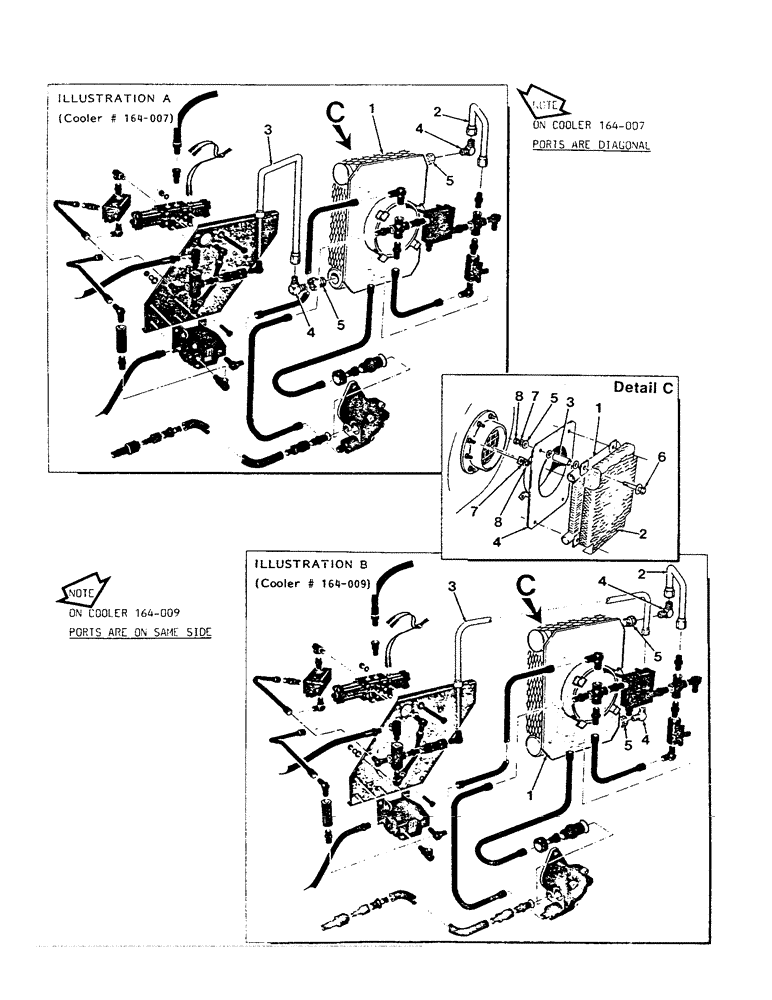

Запчасти Case IH 1002 (50[1]) - ILLUSTRATION A FOR PROPORTIONATOR SYSTEM WITH COOLER 164-007

1

164-007

COOLER, ports diagonal

1шт.

2

223-003

TUBE, cooler, top port

1шт.

3

223-002

TUBE, cooler, bottom port

1шт.

4

170-015

ELBOW, 90 degree, male

2шт.

5

164-008

REDUCER

1шт.
