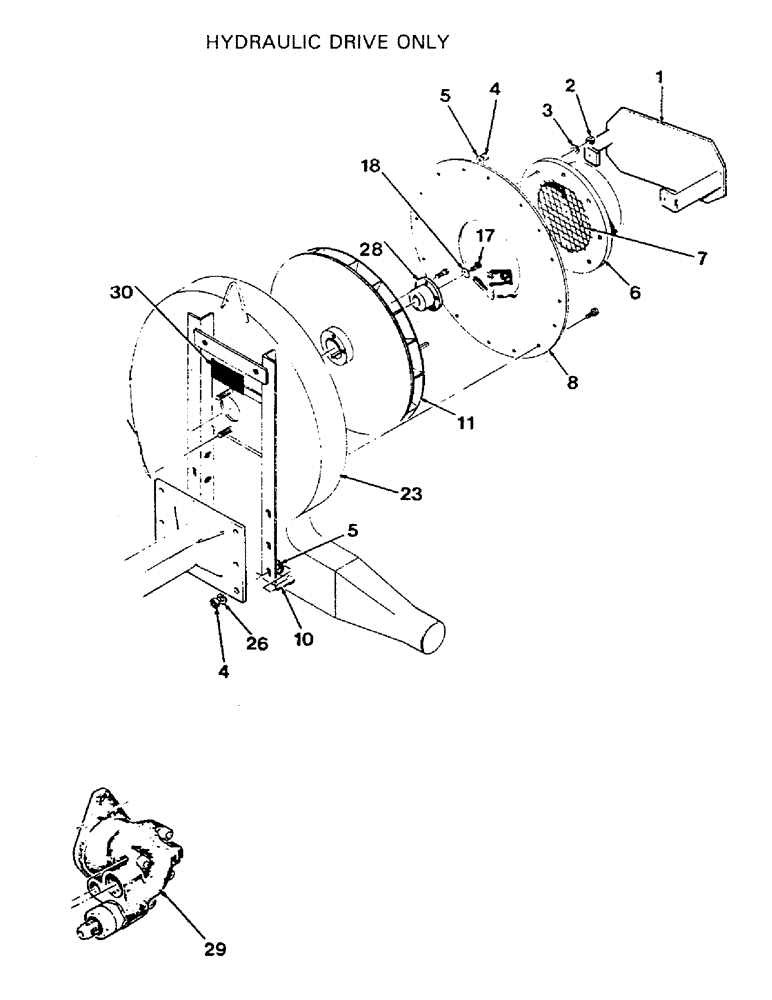

Запчасти Case IH 1002 (42) - BLOWER ASSEMBLY

1

157-001

DEFLECTOR, straw

1шт.

315-001

BLOWER ASSEMBLY, (2 through 23)

1шт.

2

900-185

NUT, hexagon .31

8шт.

3

900-182

LOCKWASHER .31

8шт.

4

900-285

NUT, hexagon .375

1шт.

5

900-290

FLATWASHER .375

1шт.

6

130-010

INLET, blower c/w screen

1шт.

7

130-011

SCREEN

1шт.

8

130-009

COVER, side

1шт.

10

900-206

CAPSCREW, hexagon .375 x 1.25

1шт.

11

130-008

FAN BLADE

1шт.

23

BLOWER HOUSING (Not sold separately)

1шт.

24

208-005

BUSHING, 1.125 inch bore

1шт.

25

208-004

PULLEY, 2 grooves B section

1шт.

26

900-292

LOCKWASHER .38 HYDRAULIC DRIVEN BLOWER (Items 1 through 8, 10, 11, 17, 18, 20, 21, 22, 23, 26, 28 and 30)

6шт.

28

130-007

Q-BUSHING, 20 mm. bore c/w key & bolts

1шт.

29

HYDRAULIC MOTOR, see hydraulic systems (Ref.)

1шт.

30

130-006

DECAL, fan - hydraulic driven

1шт.
